The ZD421 stands out with advanced features including an intuitive user interface, robust architecture, and field-upgradeable wireless capabilities. Its new media guide and media handling design make daily operations more convenient. The series offers both direct thermal and thermal transfer printing modes, with the ZD421C model featuring a ribbon cartridge design. Equipped with multiple innovative features, it stands as the most user-friendly printer in its class, including a ribbon cartridge loading design that prevents misoperation and enables rapid setup.

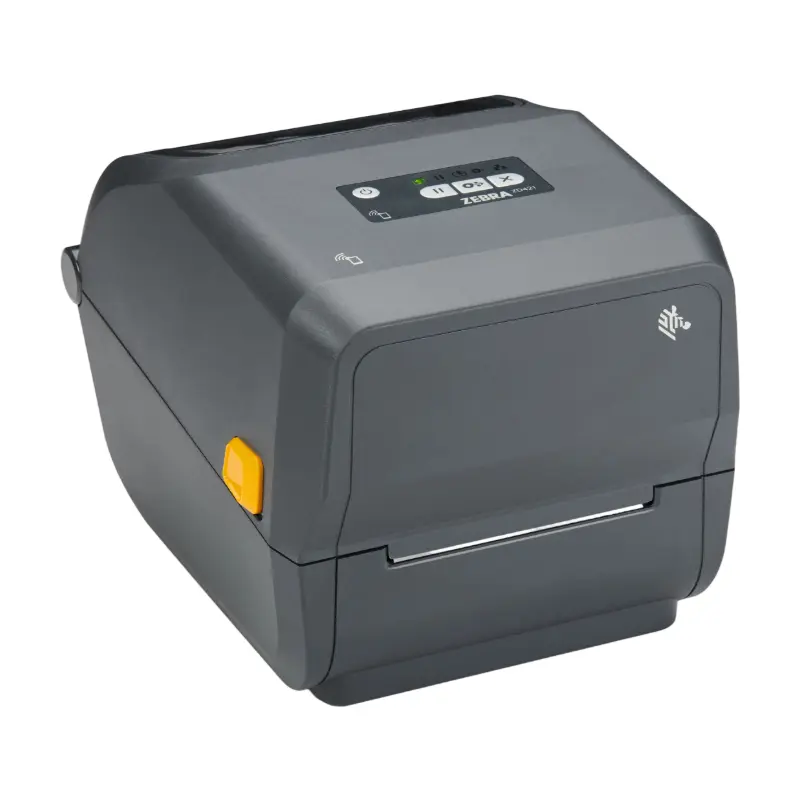

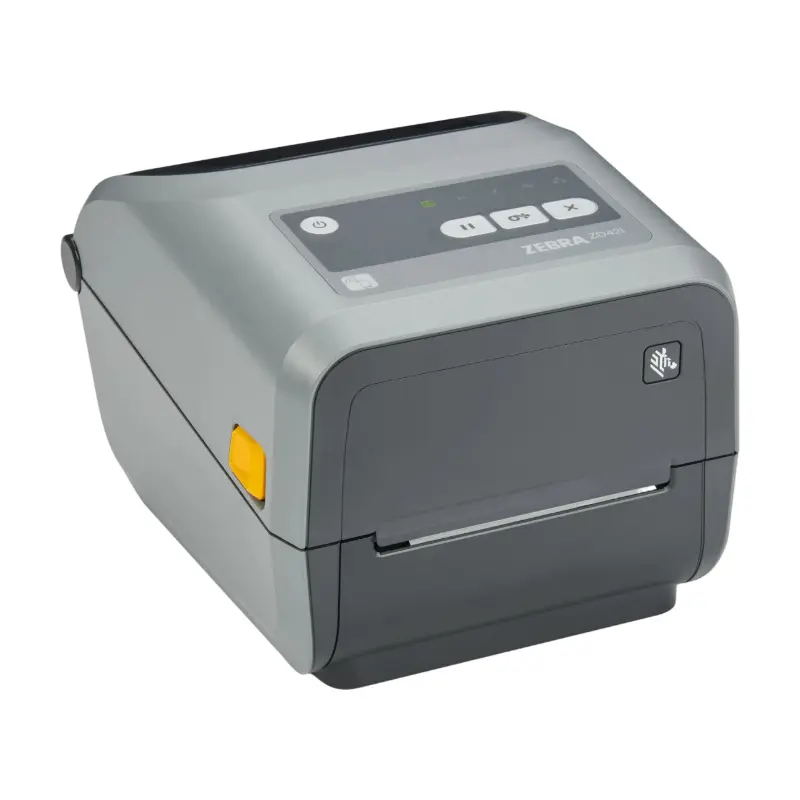

The ZEBRA ZD421 is an advanced 4-inch desktop label printer, which is an upgraded and enhanced model based on Zebra's previous GK series and ZD420 series. It is characterized by flexible printing modes, reliable performance and convenient operation, and is widely used in healthcare, logistics, retail and other fields. Here is a detailed overview:
Core Printing Specifications
Printing Technology: It supports three modes including direct thermal, thermal transfer roll and thermal transfer cartridge, and can be selected according to different label durability requirements. Resolution & Speed: It has two resolution options of 203dpi and 300dpi. The maximum printing speed is 6ips (152mm/s) when the resolution is 203dpi, and 4ips (102mm/s) when it is 300dpi, which balances efficiency and printing clarity. Print Width: The maximum print width is 104mm (203dpi) and 108mm (300dpi) respectively, which is compatible with most 4-inch standard labels and meets the needs of common labeling scenarios.
Connection & Operation Experience
Diversified Connections: It comes with USB and USB host ports as standard. It also provides optional configurations such as Ethernet, serial port, Wi-Fi 6/Bluetooth 5.3 or Wi-Fi 5/Bluetooth 4.1. It supports NFC touch pairing and Bluetooth low energy connection, and can be quickly connected to devices such as Windows, Android and iOS. Intuitive Operation Interface: It is equipped with a three-button operation panel and five LED status indicators, which can intuitively display the working state of the printer. The color-coded contact points can guide the replacement of media, and the thermal transfer cartridge model supports one-way error-proof quick loading, which shortens the replacement time of the ribbon.
Physical Parameters & Mobility
Size and Weight: The size and weight vary slightly by model. The direct thermal model is 220.8mm × 177.5mm × 150.7mm and weighs 1.35kg; the thermal transfer roll model is 267mm × 202mm × 189mm and weighs 2.05kg; the thermal transfer cartridge model is 254mm × 202mm × 177mm and weighs 2.3kg. Portable Option: It supports an optional high-capacity battery, which can meet the power demand of the whole shift. It can be used with a portable bag, turning the desktop printer into a mobile printing device, suitable for on-site printing scenarios such as trolley operations.
Software & Compatibility
It is equipped with Zebra's Print DNA software suite and Link-OS operating system. It can remotely manage, monitor and troubleshoot printers in a centralized way through tools such as Printer Profile Manager Enterprise, and the PrintSecure function can also prevent unauthorized access.
It supports EPL and ZPL printing languages, and can simulate the languages of other brand printers through Virtual Devices tools, which is compatible with existing label formats and application programs, and is convenient for seamless replacement of old printers.
Applicable Scenarios & Reliability
It has a two-year standard warranty and supports Zebra OneCare extended maintenance services. Its double-wall frame structure is strong and durable, and it has passed the Energy Star certification, which is energy-saving and stable.
It is widely used in healthcare scenarios such as patient identification and laboratory sample labeling. It can also be used for shelf labeling, logistics tracking and compliance labeling in retail and logistics fields, with strong scene adaptability.
What printing technologies are supported by the ZD421?
The printer supports three flexible modes: direct thermal, thermal transfer roll, and thermal transfer cartridge options, allowing adaptation for various label durability needs.
What resolution and print speeds can I expect?
It offers 203dpi and 300dpi resolution options. The maximum speed reaches 6ips (152mm/s) at 203dpi and 4ips (102mm/s) at 300dpi.
What connectivity options does the ZD421 support?
It comes standard with USB and USB host. Optional configurations include Ethernet, Serial, Wi-Fi 6 with Bluetooth 5.3, or Wi-Fi 5 with Bluetooth 4.1. It also supports NFC touch pairing.
How big and heavy are the different ZD421 models?
• Direct Thermal Model: 220.8 × 177.5 × 150.7 mm (1.35 kg)
• Thermal Transfer Roll Model: 267 × 202 × 189 mm (2.05 kg)
• Thermal Transfer Cartridge Model: 254 × 202 × 177 mm (2.3 kg)
Is the ZD421 compatible with older or third-party label formats?
Yes, it supports EPL and ZPL printing languages natively and can simulate languages of other printer brands using the Virtual Devices tools, allowing for seamless integration.
Can the desktop ZD421 be used for mobile applications?
Yes, by choosing the optional high-capacity battery and a portable bag accessory, the ZD421 desktop printer can easily be used as a mobile printing solution on carts or trolleys.
