Custom SIEMENS 3RV2907-1AB00 infeed system Manufacturer, Exporter

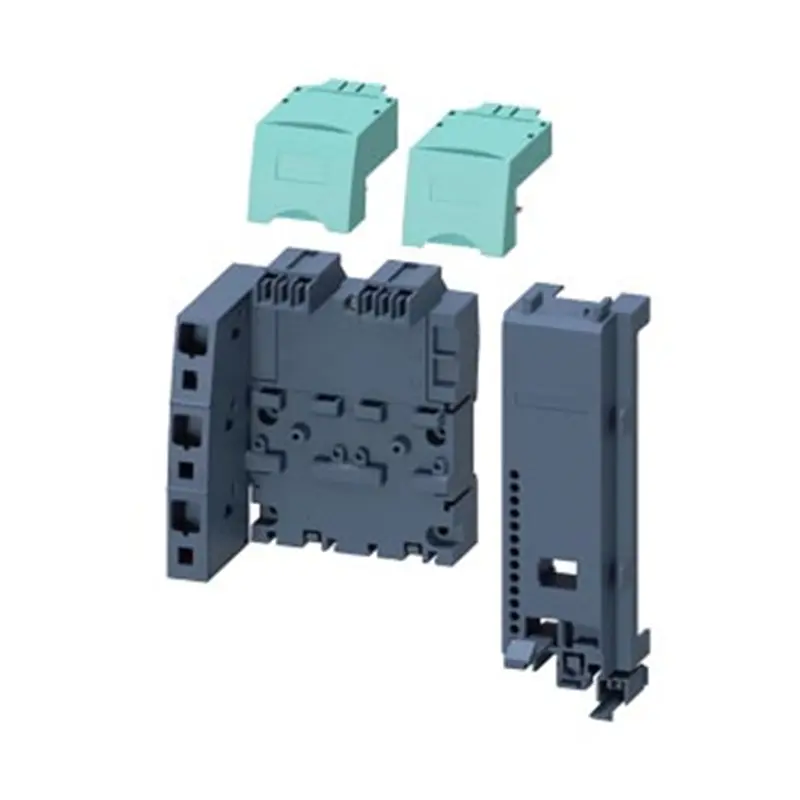

3RV29 infeed system Basic set for 2 motor starters with infeed left Size S00 and S0 includes 1x 3RV2917-1A 2x 3RV2917-5AA00 2x 3RV2927-5AA00 2x 3RV2927-7AA00
The 3RV29 infeed system is a convenient means of energy supply and distribution for a group of several motor starter protectors or complete load feeders with screw or spring-loaded terminals in sizes S00 and S0. Motor starter protectors or load feeders with a rated current of maximum 32 A each can be used. 3RV21 motor starter protectors cannot be used in this system.

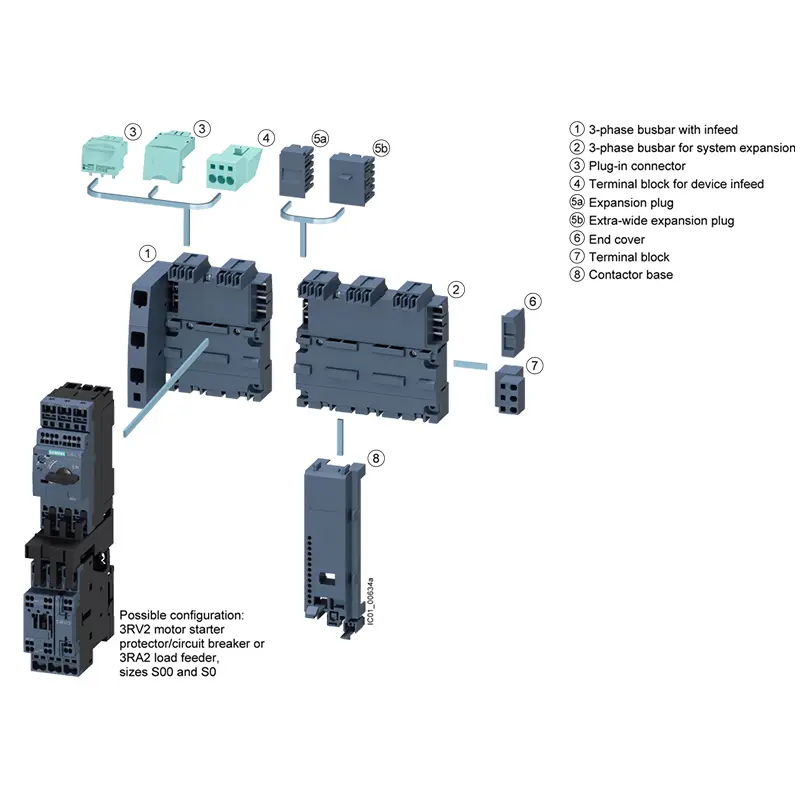

The system is based on a basic module complete with a lateral incoming unit (3-phase busbar with infeed). This infeed with spring-loaded terminals is mounted on the right or left, depending on the version, and can be supplied with a maximum conductor cross-section of 25 mm2 (with end sleeve). A basic module has two sockets onto each of which a motor starter protector can be snapped.
Expansion modules are available for extending the system (3-phase busbars for system expansion). The individual modules are connected through an expansion plug.
The electrical connection between the 3-phase busbars and the motor starter protectors is implemented through plug-in connectors. The complete system can be mounted on a TH 35 DIN rail according to IEC 60715, and can be expanded as required up to a maximum current-carrying capacity of 63 A.
The system is mounted extremely quickly and easily thanks to the simple plug-in terminals. Thanks to the lateral infeed, the system also saves space in the control cabinet. The additional height required for the infeed unit is only 30 mm. The alternative infeed possibilities on each side offer a high degree of flexibility for configuring the control cabinet: Infeed on left-hand or right-hand side as well as infeed on one side and outfeed on the other side to supply further loads are all possible. As well as the integration of motor starter protectors, a terminal block with spring-loaded terminals in conjunction with a DIN rail also supports the integration of 1-/2-/3-phase components such as 5SY miniature circuit breakers or relay components.
The 3RV29 infeed system is approved in accordance with IEC up to 500 V. It is also UL-approved and authorized for "Self-Protected Combination Motor Controllers" (Starters (Type E)), for Starters (Type F) (Starters (Type E) + contactors) and for circuit breakers according to UL 489 (3RV27/3RV28).
Assembly kits for setting up the infeed system with spring-loaded terminals:
1. Basic set for two feeders
2. Expansion sets for two or three feeders
Technical Specifications
Product
Article Number (Market Facing Number)
3RV2907-1AB00
Product Description
3RV29 infeed system Basic set for 2 motor starters with infeed left Size S00 and S0 includes 1x 3RV2917-1A 2x 3RV2917-5AA00 2x 3RV2927-5AA00 2x 3RV2927-7AA00
Product family
3RV29 infeed system
Product Lifecycle (PLM)
PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group
41E / 41E
List Price
Show prices
Customer Price
Show prices
Surcharge for Raw Materials
None
Metal Factor
L-P-----
Delivery information
Export Control Regulations
AL : N / ECCN : N
Standard lead time ex-works
3 Day/Days
Net Weight (kg)
1,080 Kg
Packaging Dimension
197,00 x 298,00 x 187,00
Package size unit of measure
MM
Quantity Unit
1 Piece
Packaging Quantity
1
Additional Product Information
EAN
4047621059884
UPC
804766752025
Commodity Code
85369095
LKZ_FDB/ CatalogID
CC-IC10
Product Group
5335
Group Code
R711
Country of origin
Czech Republic
Compliance with the substance restrictions according to RoHS directive
Since: 01.10.2009
Product class
A: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back Obligation
Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Reach Information
SCIP number
Not available
Product Models
Model: 3RV2907-1AB00
Power supply system 3RV29 Basic-Set 2 MS
Delivery Information
Export Control Regulations
AL : N / ECCN : N
Standard delivery time
3 Day/Days
Packaging dimensions (L x W x H)
298.00 x 197.00 x 187.00 mm
Net weight
1.080 Kg
Quantity Unit
1 Piece
Packaging Quantity
1
Dangerous goods
No
Manuals & Resources
SIEMENS 3RV2907-1AB00 infeed system
Frequently Asked Questions
What is the main function of the 3RV29 infeed system?
It serves as a convenient energy supply and distribution mechanism for a group of several motor starter protectors or complete load feeders with screw or spring-loaded terminals, specifically for sizes S00 and S0.
What is the maximum current capacity of the system?
The individual motor starter protectors can have a rated current of up to 32 A each, and the entire system can be expanded up to a maximum current-carrying capacity of 63 A.
Which motor starter protectors are incompatible with this system?
The 3RV21 motor starter protectors cannot be used in the 3RV29 infeed system.
How is the lateral infeed unit configured?
The lateral infeed with spring-loaded terminals can be mounted on the right or left side depending on the specific version. It supports a maximum conductor cross-section of 25 mm² with an end sleeve.
What standards and approvals does the system meet?
The 3RV29 system is approved in accordance with IEC up to 500 V. It is also UL-approved and authorized for "Self-Protected Combination Motor Controllers" (Type E and Type F) as well as circuit breakers according to UL 489.
What components are included in the 3RV2907-1AB00 Basic set?
The 3RV2907-1AB00 Basic set is configured for 2 motor starters (infeed left, sizes S00 and S0). It contains one 3RV2917-1A, two 3RV2917-5AA00, two 3RV2927-5AA00, and two 3RV2927-7AA00.
