As a classic sensing device within the industrial automation portfolio, the QAE3174D.015 immersion temperature sensor is specifically engineered for precise liquid temperature monitoring. Boasting high stability and strong adaptability, it finds extensive application in industrial fluid control scenarios, serving as a core component for ensuring safe equipment operation and accurate process regulation.
| Operating voltage | DC 13.5…35 V, 24 V |
| Power consumption | 0.7 W |
| Sensing element | Pt1000 |
| Measuring range | -40...+120 (R2) °C 0...70 (R1) °C |
| Measuring range, temperature | -40…120 °C, 0…70 °C |
| Sensing element, temperature | Pt1000DC 4...20 mA |
| Measurement accuracy | @20 °C: ±0.2 K 0...70 °C: ±1 K -40...+120 °C: ±1.4 K |
| Time constant | 25 s, With protection pocket: 30 s, Without protection pocket: 8 s, Air v=1 m/s: 2 s |
| Immersion length | 150 mm |
| Analog output, signal | DC 4...20 mA |
| Material, immersion pocket | Stainless steel |
| Connection, electrical | Screw terminals |
| Connecting thread | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
| Type of fixing | Protection pocket G½ " |
| Digital outputs | 4...20 mA |
| PN class | PN 16 |
| Material, housing | Polycarbonate |
| Degree of protection | IP65 |
| Dimensions (W x H x D) | 80 x 60 x 39 mm |

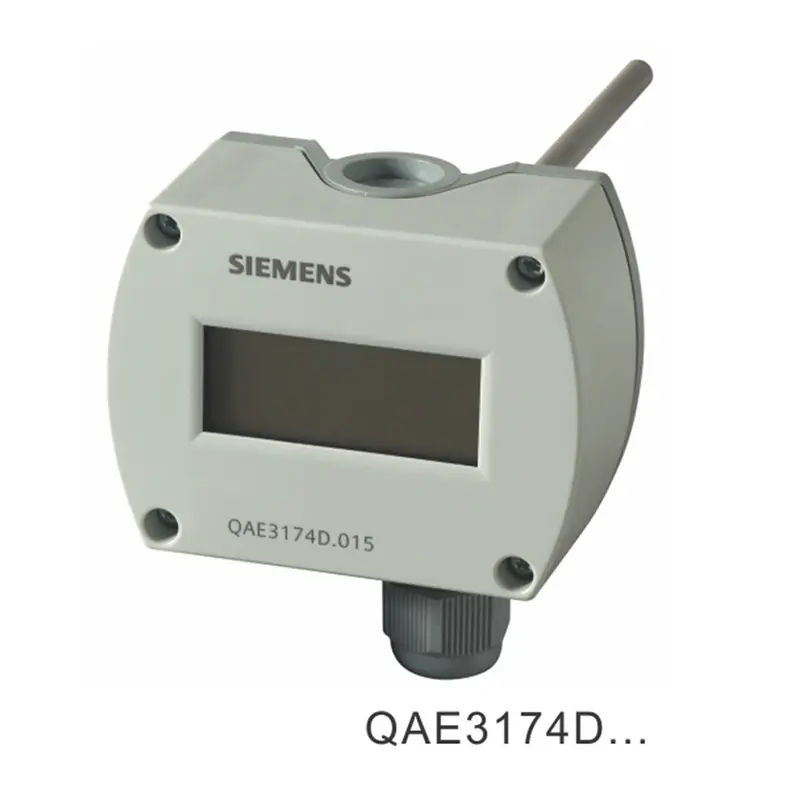

QAE3174D.015 Immersion temperature sensor, 150 mm, DC 4...20 mA
| Product No. | QAE3174D.015 |
| Stock No. | S55720-S548 |
| Dimensions (W x H x D) | 80 x 60 x 39 mm |
| Net Weight (kg) | 0.197kg |
| Battery parameters | Without battery |
| Warranty | 60 Months |
| GTIN Number | 4047625020446 |

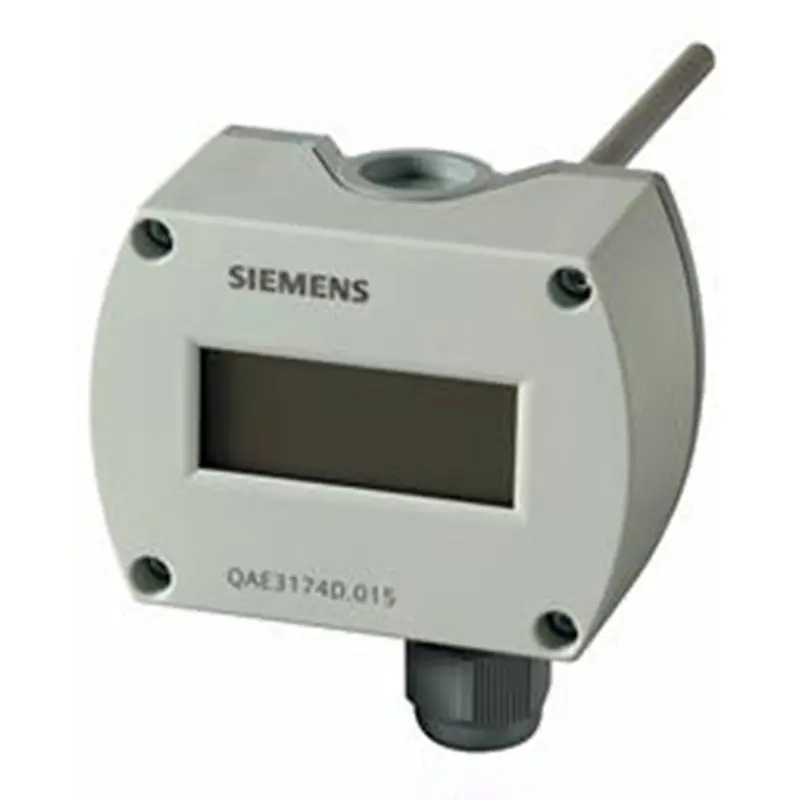

QAE3174D.015 Immersion temperature sensor
