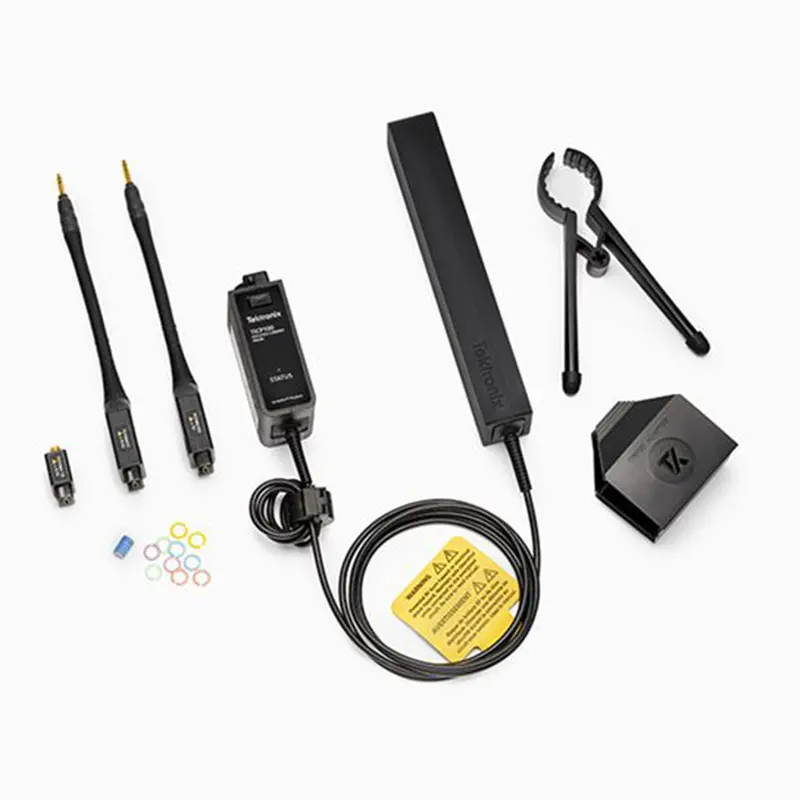

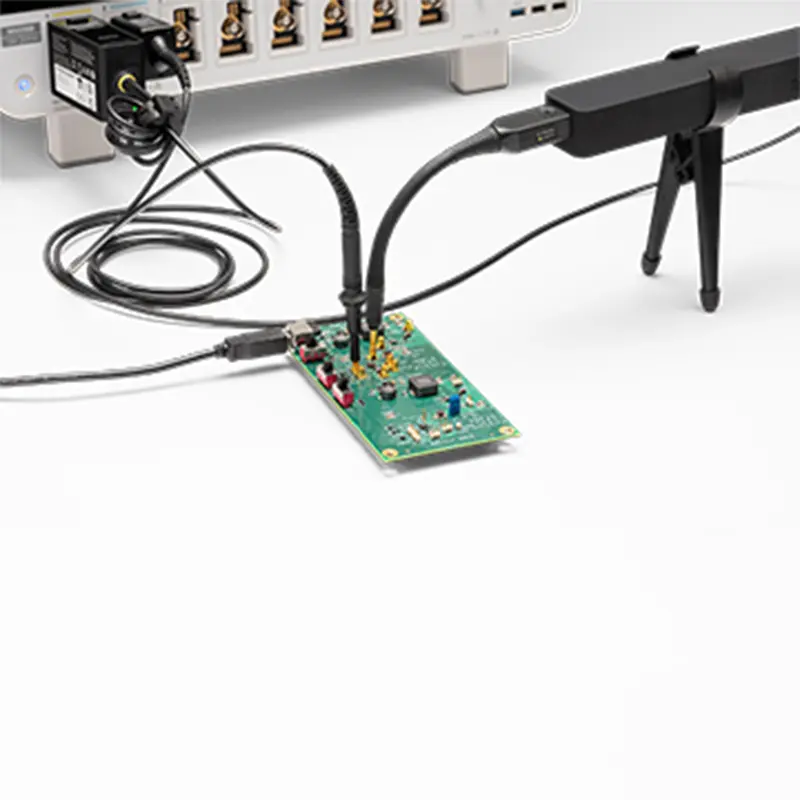

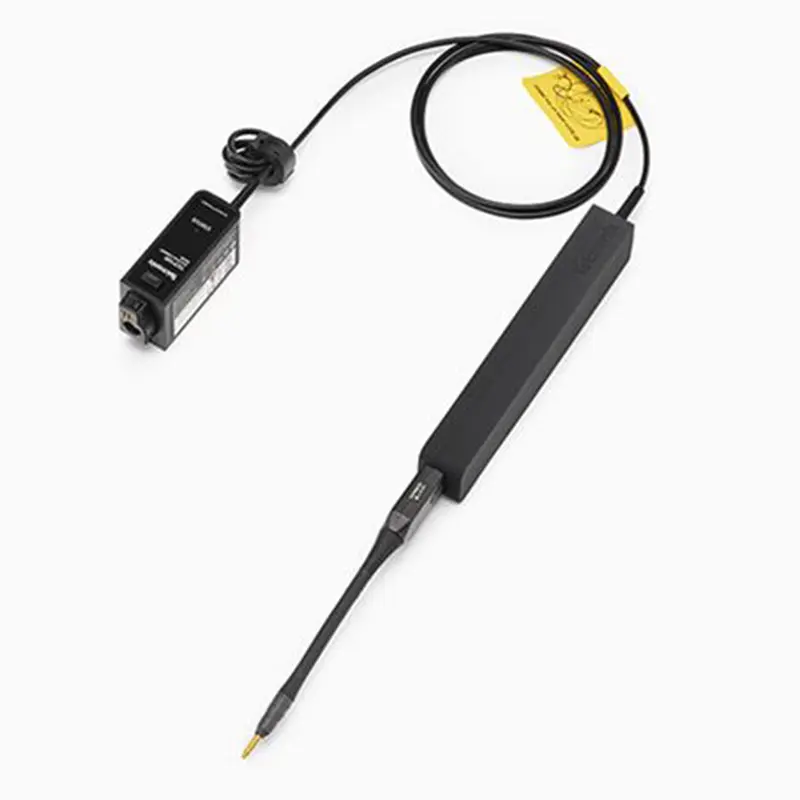

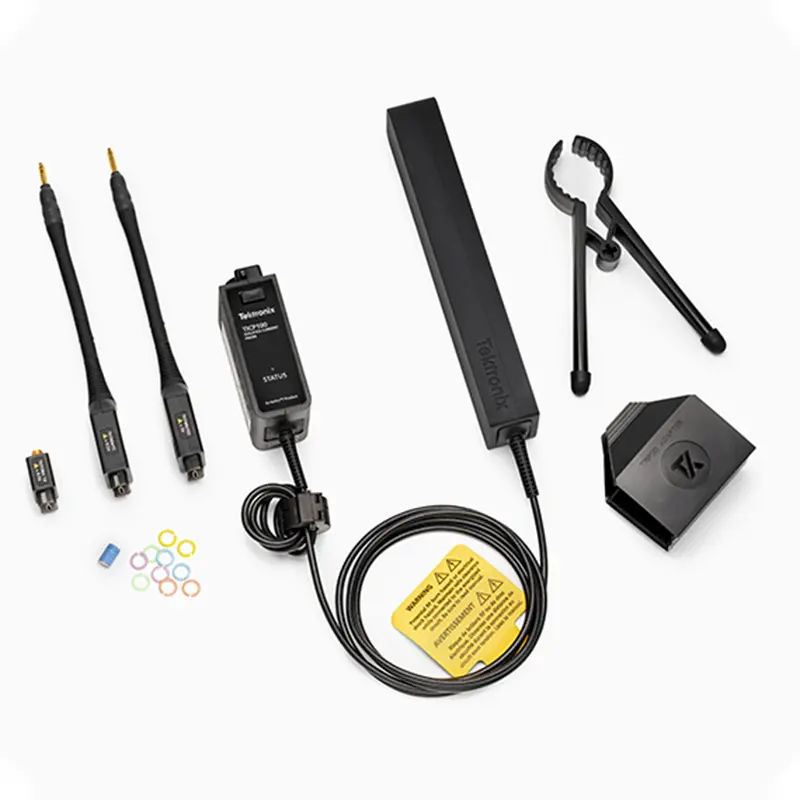

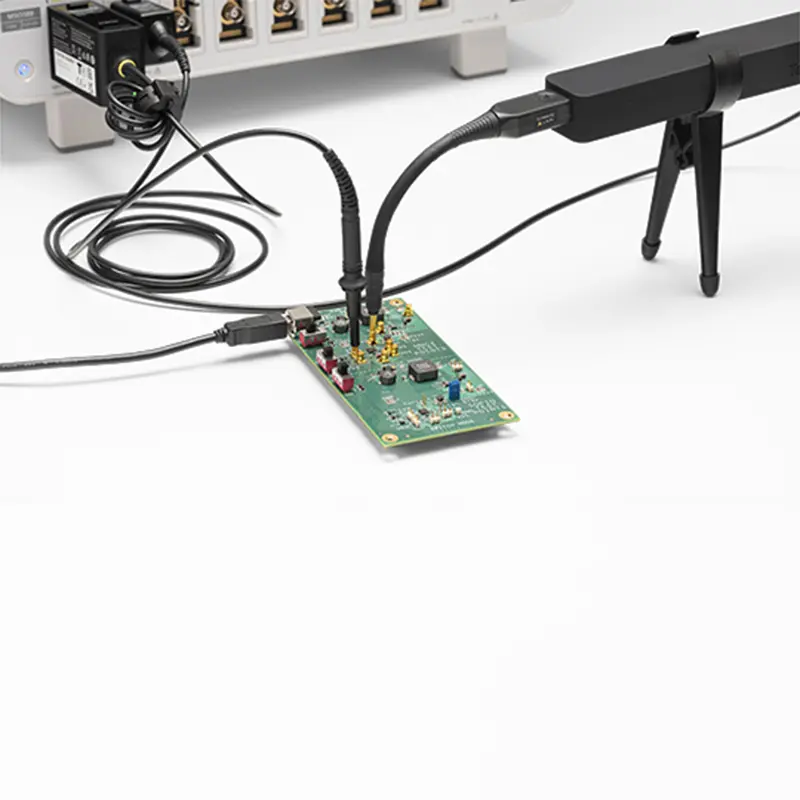

For measuring current, the TICP Series IsoVu™ isolated current probes offer outstanding bandwidth, noise rejection, accuracy, and user-friendliness. Very strong common mode rejection is made possible by complete galvanic separation, which also removes ground loops. The 50 Ω input of the TICP Series probe in a 1X configuration provides incredibly low noise of less than 4.7 nV/√Hz, which is perfect for taking precise measurements on shunts. To increase the differential voltage range, the probes provide a range of attenuation tips. The probes can monitor currents ranging from microamperes (µA) for low-power mobile designs to hundreds of amperes for industrial and mobility systems, depending on the shunt that is utilized.
| Probes | TICP100 | TICP050 | TICP025 | Probes | TICP100 |
|---|---|---|---|---|---|
| Bandwidth | 1 GHz | 500 MHz | 250 MHz | Bandwidth | 1 GHz |
| Rise time | 400 ps | 700 ps | 1.4 ns | Rise time | 400 ps |
| DC gain accuracy | ±1.5% | ||||
| Maximum common mode voltage | 1800 V; For use in a Pollution Degree 1 environment; Max with transient level not to exceed 5kVpk | ||||
| 1300 V; Pollution degree 2; Max with transient level not to exceed 5kVpk | |||||
| 600 V for CAT III; Pollution degree 2 | |||||
| 1000 V for CAT II; Pollution degree 2 | |||||
| RMS noise spectral density | 4.70 nV / √Hz (<21 µV_RMS at 20 MHz) | ||||
| Probe cable length | 2 meters (78 inches) | ||||
| Analog channels/bandwidth | DPO77002SX/DPS77004SX | DPO75902SX/DPS75904SX | DPO75002SX/DPS75004SX | |||
|---|---|---|---|---|---|---|
| ATI channel | TekConnect channels | ATI channel | TekConnect channels | ATI channel | TekConnect channels | |
| Model Ref | DPO77002SX | DPO77002SX | DPO75902SX | DPO75902SX | DPO75002SX | DPO75002SX |
| Bandwidth Config 1 | 1 ch/67 GHz | 2 ch/33 GHz | 1 ch/59 GHz | 2 ch/33 GHz | 1 ch/50 GHz | 2 ch/33 GHz |
| Bandwidth Config 2 (Typical) | 1 ch/70 GHz | DPS77004SX | DPS75904SX | DPS75904SX | DPS75004SX | DPS75004SX |
| Bandwidth Config 3 | DPS77004SX | 4 ch/33 GHz | 2 ch/59 GHz | 4 ch/33 GHz | 2 ch/50 GHz | 4 ch/33 GHz |
| Bandwidth Config 4 | 2 ch/67 GHz | - | - | - | - | - |
| Bandwidth Config 5 (Typical) | 2 ch/70 GHz | - | - | - | - | - |
| Sample rate per channel | 200 GS/s | 100 GS/s | 200 GS/s | 100 GS/s | 200 GS/s | 100 GS/s |
| Rise time (typical) | 10% to 90%: 5.6 ps 20% to 80%: 4.3 ps |
10% to 90%: 13 ps 20% to 80%: 9 ps |
10% to 90%: 6.8 ps 20% to 80%: 5.2 ps |
10% to 90%: 13 ps 20% to 80%: 9 ps |
10% to 90%: 7.8 ps 20% to 80%: 6 ps |
10% to 90%: 13 ps 20% to 80%: 9 ps |
| Vertical Noise (% of full scale) | 0.83% of FS @ 0 V offset (300 mVFS) | 0.71% of FS @ 0 V offset (500 mVFS) | 0.77% of FS @ 0 V offset (300 mVFS) | 0.71% of FS @ 0 V offset (500 mVFS) | 0.69% of FS @ 0 V offset (300 mVFS) | 0.71% of FS @ 0 V offset (500 mVFS) |
| Record length, standard | 62.5 M | 62.5 M | 62.5 M | 62.5 M | 62.5 M | 62.5 M |
| Record length, Opt. 10XL | 125 M | 125 M | 125 M | 125 M | 125 M | 125 M |
| Record length, Opt. 20XL | 250 M | 250 M | 250 M | 250 M | 250 M | 250 M |
| Record length, Opt. 50XL | 1 G | 1 G | 1 G | 1 G | 1 G | 1 G |
| Timing resolution | 5 ps (200 GS/s) | 10 ps (100 GS/s) | 5 ps (200 GS/s) | 10 ps (100 GS/s) | 5 ps (200 GS/s) | 10 ps (100 GS/s) |
| Duration at highest sample rate (Std) | 313 µs | 625 µs | 313 µs | 625 µs | 313 µs | 625 µs |
| Duration at highest sample rate (Opt 10XL) | 625 µs | 1.25 ms | 625 µs | 1.25 ms | 625 µs | 1.25 ms |
| Duration at highest sample rate (Opt 20XL) | 1.25 ms | 2.5 ms | 1.25 ms | 2.5 ms | 1.25 ms | 2.5 ms |
| Duration at highest sample rate (Opt 50XL) | 5.0 ms | 10 ms | 5.0 ms | 10 ms | 5.0 ms | 10 ms |
Note 1: DSO and MSO models have 4 analog channels. MSO models include 16 digital channels.
Note 2: 6 GHz and 8 GHz only possible when two channels are active. Four channel bandwidth is 4 GHz.
