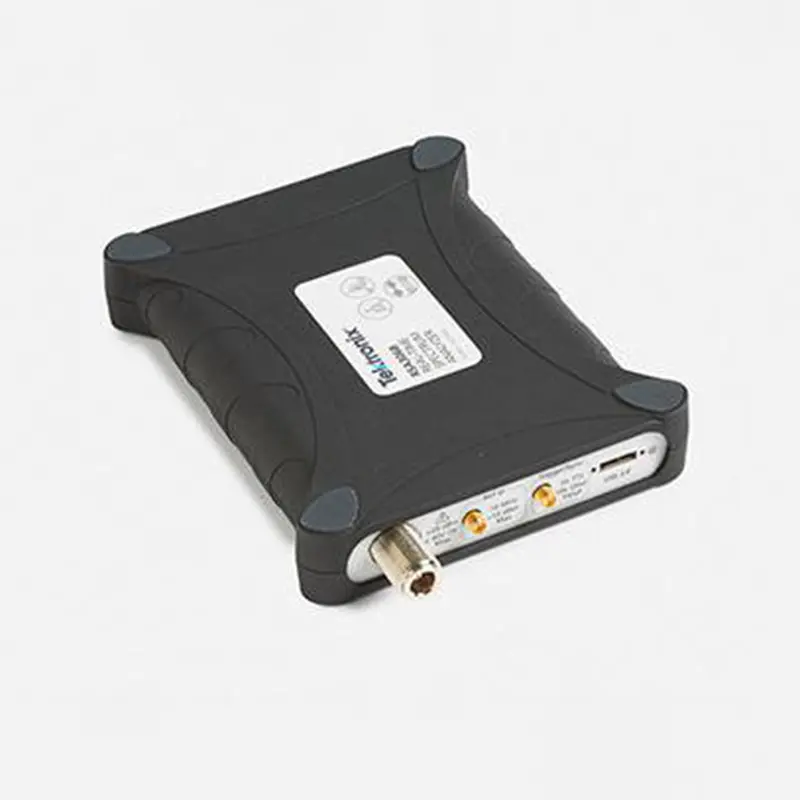

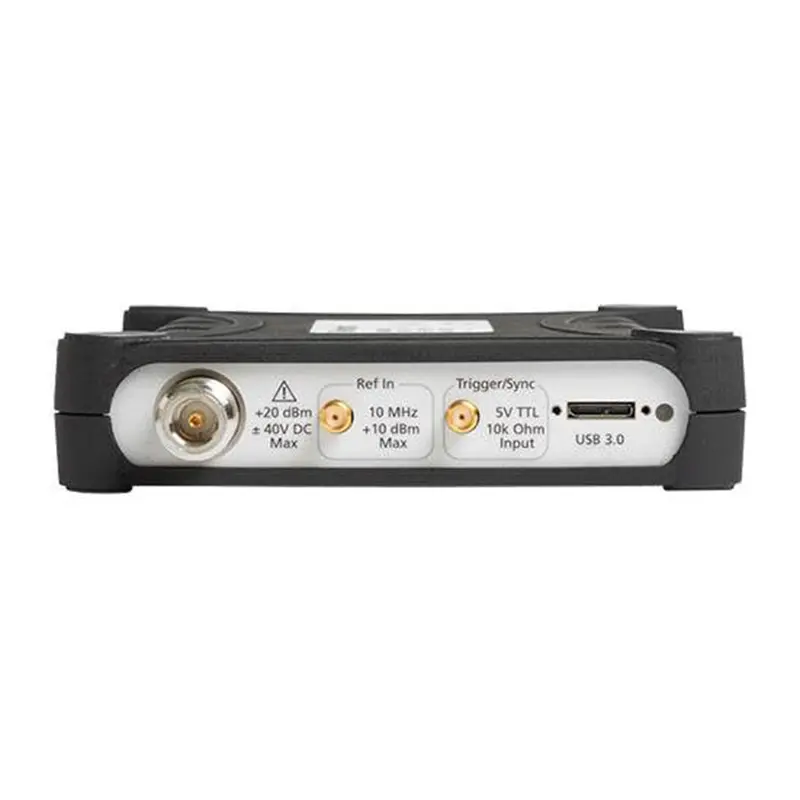

Despite its compact size, the RSA306B USB spectrum/signal analyzer is incredibly powerful

Â ItÂ hasÂ allÂ theÂ functionalityÂ youÂ wouldÂ anticipateÂ fromÂ spectrumÂ analyzersÂ twiceÂ asÂ largeÂ andÂ twiceÂ asÂ expensive. idealÂ forÂ dailyÂ chores.

Send Inquiry

Product Description

Overview

■

At a very competitive price, the RSA306B provides deep signal analysis and full featured spectrum analysis.

■

The RSA306B drastically reduces the cost of instrument hardware by separating signal acquisition from measurement using a user's PC and a quick USB3 interface.

■

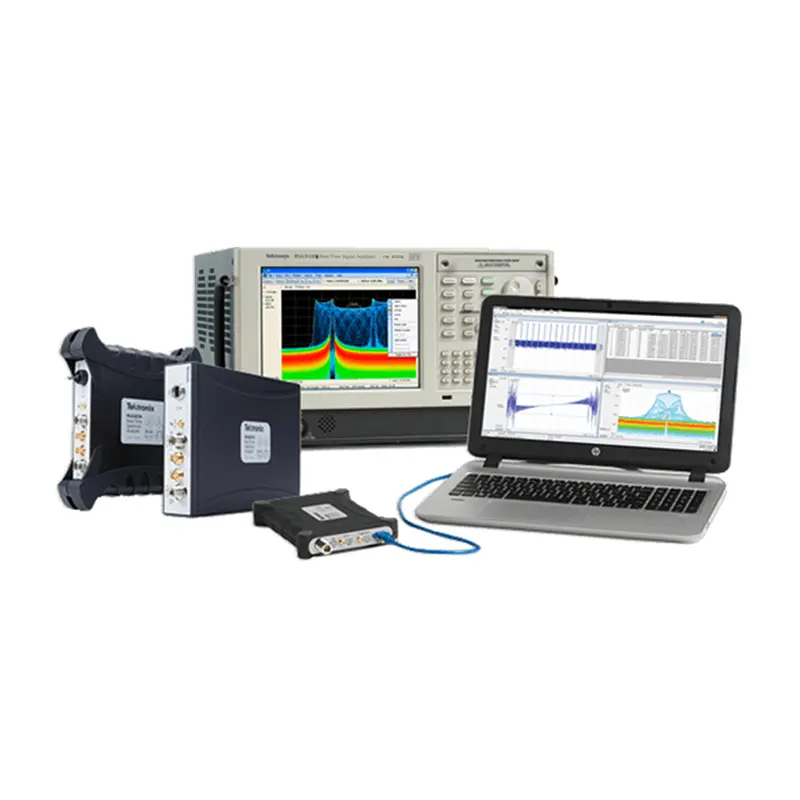

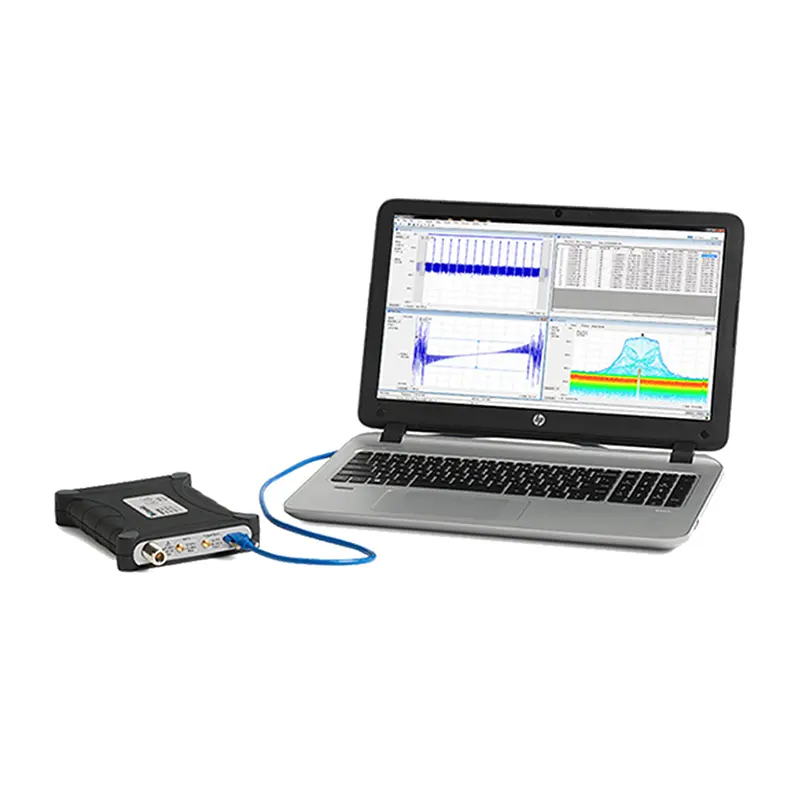

Your laptop, tablet, or personal computer is used for data analysis, storage, and replay. Computer upgrades are made simple and IT administration problems are reduced when the PC is managed independently of the acquisition gear.

Specifications

Frequency

RF input frequency range: 9 kHz to 6.2 GHz

Frequency reference accuracy:

• Initial accuracy at calibration: ±3 ppm + aging (after 20 minute warmup at 18 °C to 28 °C ambient)
• Accuracy, typical: ±20 ppm + aging (after 20 minute warm up at -10 °C to 55 °C ambient)
• Aging, typical: ± 3 x 10-6 (1st year), ±1 x 10-6/year thereafter

External Frequency Reference Input

Input frequency range: 10 MHz ±10 Hz

Input level range: -10 dBm to +10 dBm sinusoid

Impedance: 50 Ω

Frequency Resolution

Block IQ samples: 1 Hz

Streamed ADC samples: 500 kHz

Amplitude

RF input impedance: 50 Ω

RF input VSWR (typical): ≤ 1.8:1 (10 MHz to 6200 MHz, reference level ≥ +10 dBm) (Equivalent Return Loss: ≥11 dB)

Maximum RF Input Level Without Damage

DC voltage: ±40 VDC

Reference level ≥ –10 dBm: +23 dBm (continuous or peak)

Reference level < –10 dBm: +15 dBm (continuous or peak)

Maximum RF Input Operating Level

Center frequency < 22 MHz (low-frequency path): +15 dBm

Center frequency ≥22 MHz (RF path): +20 dBm

The maximum level at the RF input for which the instrument will meet its measurement specifications.

Models

Real-time USB spectrum analyzer with 40 MHz acquisition bandwidth operating between 9 kHz and 6.2 GHz. A computer running 64-bit Windows 10 or Windows 11 is required for the RSA306B. The RSA306B requires a USB 3.0 connection to function. SignalVu-PC requires 20 GB of free disk space and 8 GB of RAM to install. An Intel Core i7 4th generation processor or above is needed to fully utilize the RSA306B's real-time functionality. Reduced real-time performance is possible when using processors with lower performance. A drive with a streaming storage rate of 300 MB/sec must be installed on the PC in order to store streaming data.

Delivery Information

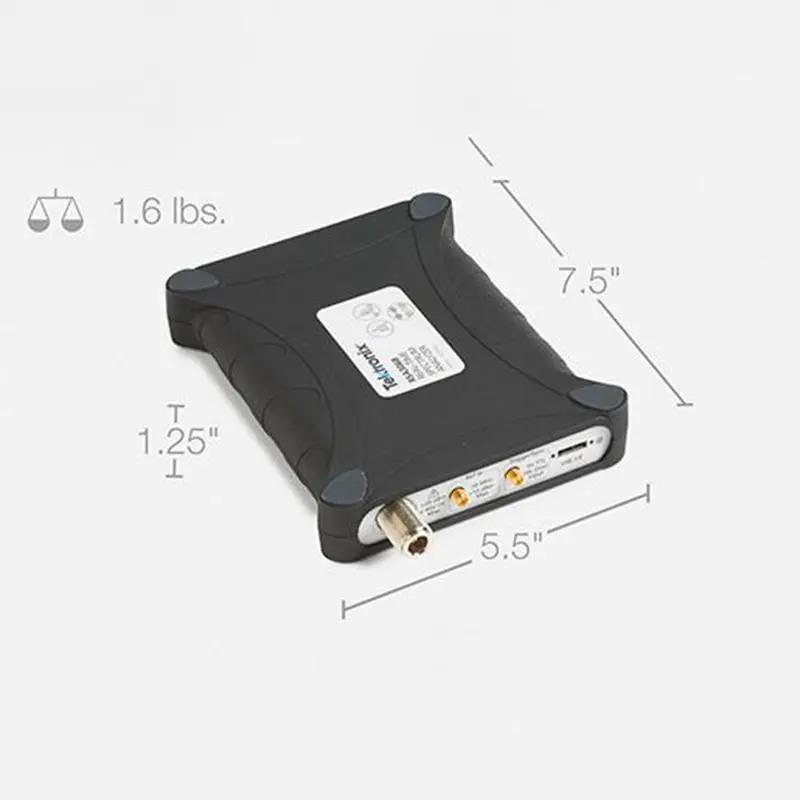

Dimensions	RSA306B
Height	31.9 mm (1.25 in)
Width	190.5 mm (7.5 in)
Depth	139.7 mm (5.5 in)
Weight	750 g (1.65 lbs)

Manuals + Resources

Wireless Spectrum Analyzer RSA306B

SignalVu_PC-Help_EN-US_077-0720-21_077072021.pdf

Download

RSA306B-Datasheet-EN-US-37W-60375-15.pdf

Download

Frequently Asked Questions

Q: What is the frequency range of the RSA306B spectrum analyzer?

The RF input frequency range of the RSA306B is from 9 kHz to 6.2 GHz.

Q: What PC system requirements are needed to run the RSA306B?

It requires a PC running 64-bit Windows 10 or Windows 11 with a USB 3.0 port. For full real-time performance, an Intel Core i7 4th generation processor (or above), 8 GB of RAM, and 20 GB of free disk space are required. Storing streaming data also requires a drive with a streaming storage rate of 300 MB/sec.

Q: What is the real-time acquisition bandwidth of the RSA306B?

The RSA306B offers a real-time acquisition bandwidth of 40 MHz.

Q: What are the physical dimensions and weight of the device?

The RSA306B measures 31.9 mm (1.25 in) in height, 190.5 mm (7.5 in) in width, and 139.7 mm (5.5 in) in depth. It weighs approximately 750 g (1.65 lbs).

Q: What is the maximum RF input level without damaging the instrument?

The maximum damage threshold is ±40 VDC for DC voltage. For RF input, it is +23 dBm (continuous or peak) when the reference level is ≥ –10 dBm, and +15 dBm when the reference level is < –10 dBm.
