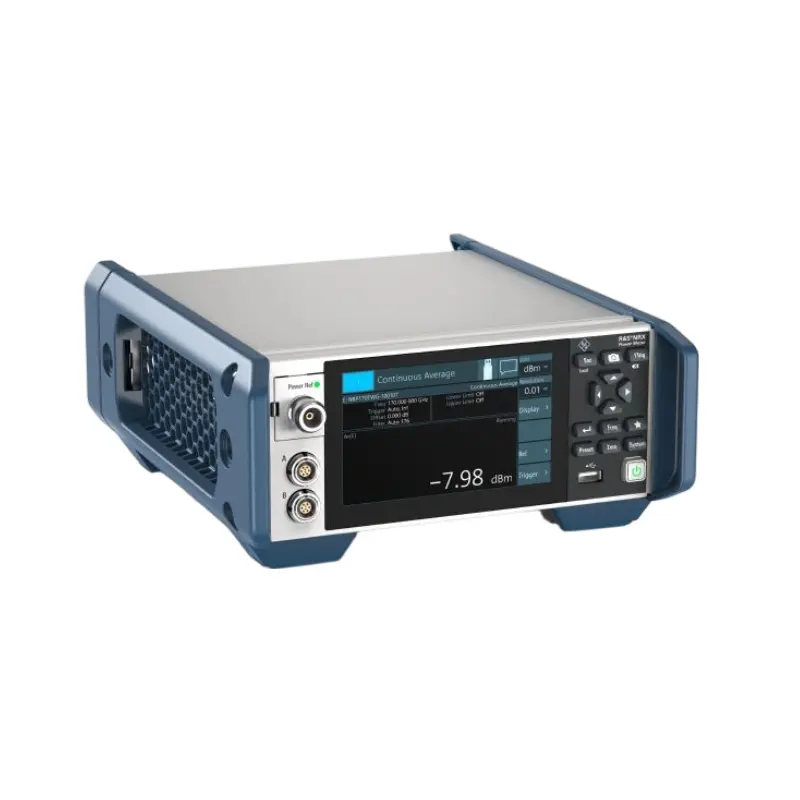

The R&SÂ®NRX power meter is a high-performance power measurement device featuring an intuitive touchscreen-based graphical user interface. It supports up to four R&SÂ®NRP series and R&SÂ®NRQ6 power probes simultaneously.

Send Inquiry

Product Description

Product Overview

The R&S®NRX Power Meter is a high-performance, user-friendly power measurement device designed to meet the demands of sophisticated RF and microwave power analysis.

Intuitive Interface

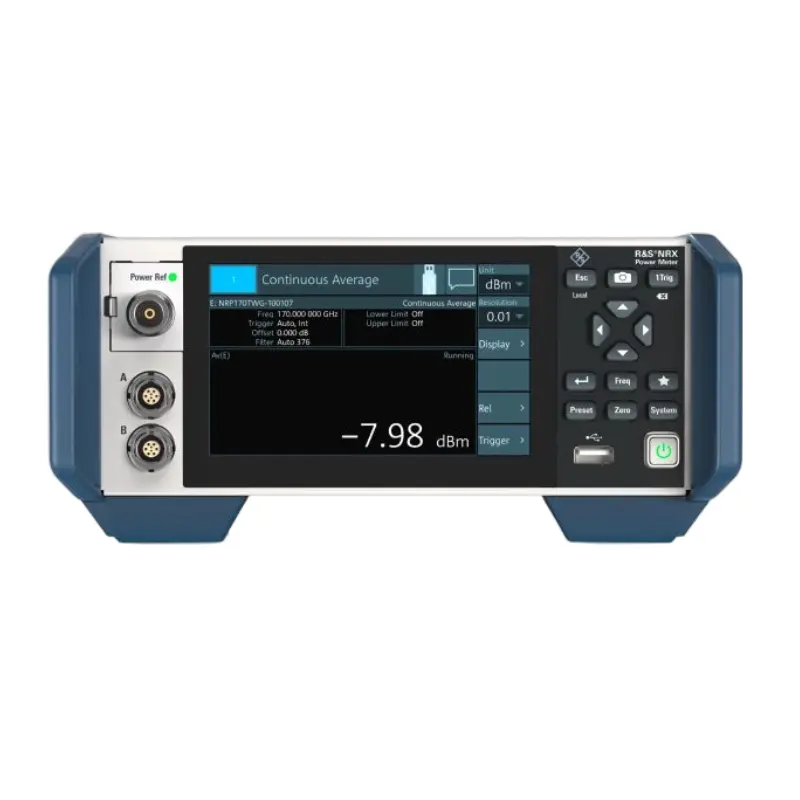

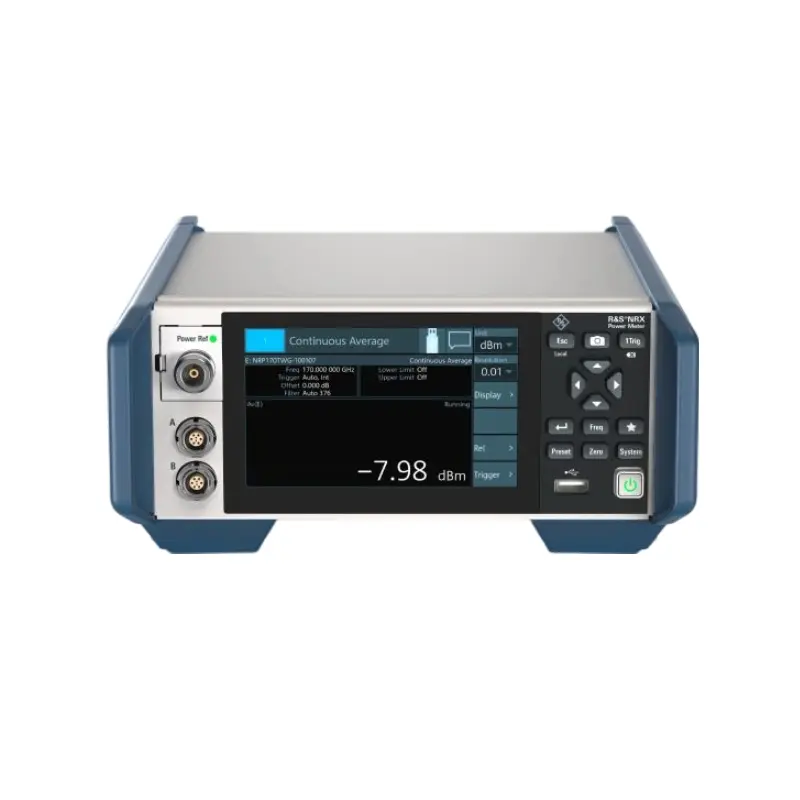

Equipped with a 5-inch TFT color touch-screen display (800 × 480 pixels). Features a touch-screen-based graphical user interface and quick-access function keys on the front panel for immediate sensor zeroing and frequency setting.

Multi-channel Support

Starts with one standard channel, expandable up to four channels. Supports up to four R&S®NRP and R&S®NRQ6 power sensors simultaneously, with calculation options for ratio, SWR, return loss, and reflection coefficient.

Sensor Compatibility

Compatible with R&S®NRPxxS(N) three-path diode, R&S®NRPxxT(N) thermoelectric, R&S®NRPxxA(N) EMC average, R&S®NRP-Z8x broadband, R&S®NRP-Z2xx dual-channel diode, R&S®NRQ6 frequency-selective, and R&S®NRT-Zxx directional power sensors.

Measurement Performance & Modules

Performance Specifications

Frequency Range: DC to 110 GHz (sensor-dependent)
Power Measurement Range: 0.1 fW to 30 W (average, sensor-dependent)
Physical Profile: Dimensions: 234 mm × 106 mm × 272 mm | Weight: 2.35 kg to 2.58 kg

Optional Modules & Interface

NRX-B1 Sensor Check Source: High-precision CW & pulse mode power reference (50 MHz / 1 GHz).
NRX-B9 NRT Sensor Interface: Tailored for NRT reflection sensor compatibility.

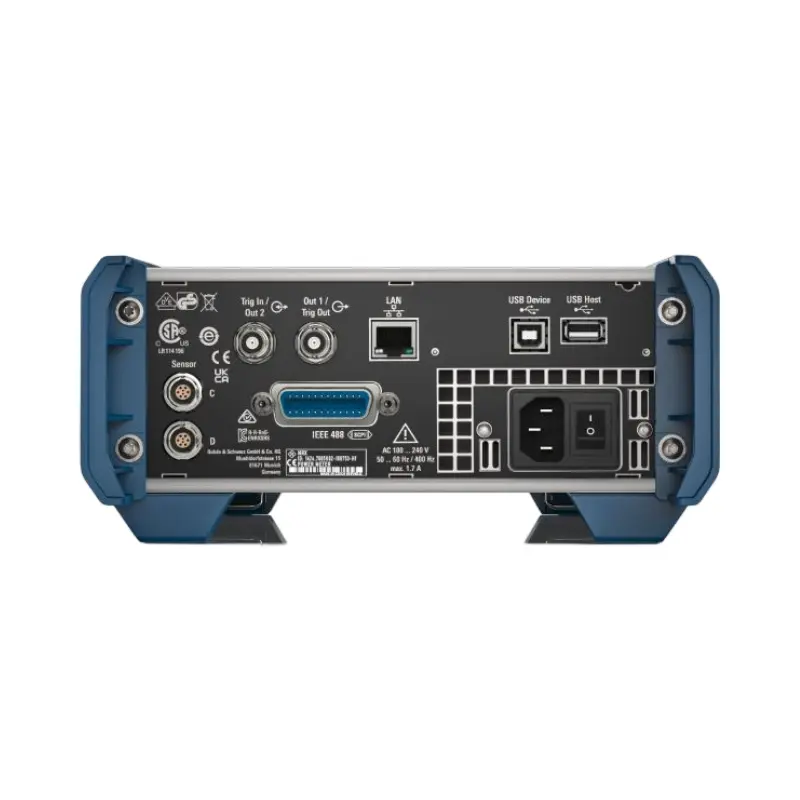

Connectivity: Standard Ethernet and USB 2.0; optional GPIB/IEEE488 (R&S®NRX-B8) for automated test systems.

Specifications

Parameter	Specification
Frequency Range	DC to 110 GHz (sensor - dependent)
Power Measurement Range	0.1 fW to 30 W (average) (sensor - dependent)
Measurement Channels	1 to 4
Display	5-inch TFT color display with a resolution of 800 × 480 pixels
Compatible Sensors	R&S®NRPxxS(N)/T(N)/A(N) series, R&S®NRP-Zxx series, R&S®NRQ6 frequency-selective power sensor, R&S®NRT-Zxx directional power sensor
Interface	Ethernet, USB 2.0, optional GPIB (R&S®NRX-B8)
Supply Voltage	100 to 240 V
Impedance	50 ohms
Operating Temperature	0 to +50 °C
Storage Temperature	-40 to +70 °C
Dimensions	234 mm × 106 mm × 272 mm (9.21 in × 4.17 in × 10.71 in)
Weight	2.35 kg to 2.58 kg (depending on options)

Models & Configurable Options

Models	Features & Configurations Included
R&S®NRX Power Meter R&S®NRX-B8	Intuitive operation with touch screen based GUI Supports up to four R&S®NRP and R&S®NRQ6 power sensors Supports all sensor-dependent measurement functions Optional high-precision CW and pulse mode reference source module Optional power reflection measurements with NRT-Zxx sensors

Delivery Information

Packaging & Specs

Dimension: 234 mm × 106 mm × 272 mm
Weight: 2.35 - 2.58 kg
Battery Parameters: Without battery

Logistics & Support

Delivery information typically includes standard safe-packaging options, flexible shipping methods, and prompt delivery schedules, which may vary depending on purchasing options and direct destination arrangements.

Manuals & Resources

Rohde & Schwarz R&S®NRX Power Meter factsheet.pdf

Download Factsheet

Frequently Asked Questions (FAQ)

What is the frequency range supported by the R&S®NRX Power Meter?

The frequency range ranges from DC to 110 GHz, which is dependent on the specific power sensor connected to the unit.

How many measurement channels can the R&S®NRX support?

The standard base configuration comes with one active measurement channel. However, this can be optionally upgraded to support two or four measurement channels simultaneously.

What sensors are compatible with this power meter?

It is compatible with an extensive selection of sensors, including the R&S®NRPxxS(N) three-path diode, R&S®NRPxxT(N) thermoelectric, R&S®NRPxxA(N) EMC average, R&S®NRP-Z8x broadband, R&S®NRQ6 frequency-selective, and R&S®NRT-Zxx directional power sensors.

Can the R&S®NRX Power Meter be controlled remotely?

Yes. The system comes equipped with standard Ethernet and USB 2.0 interfaces. Additionally, users can integrate the optional R&S®NRX-B8 GPIB interface for automated remote environments.

What is the purpose of the optional NRX-B1 sensor check source?

The NRX-B1 acts as a highly accurate power reference source (operating at 50 MHz or 1 GHz) used to check and calibrate connected sensors, offering both continuous wave (CW) and pulsed output modes.

Does the instrument support real-time digital calculations?

Yes. Depending on the active mode, the power meter can show up to four measurements simultaneously alongside calculations like SWR, reflection coefficient, return loss, and ratios.
