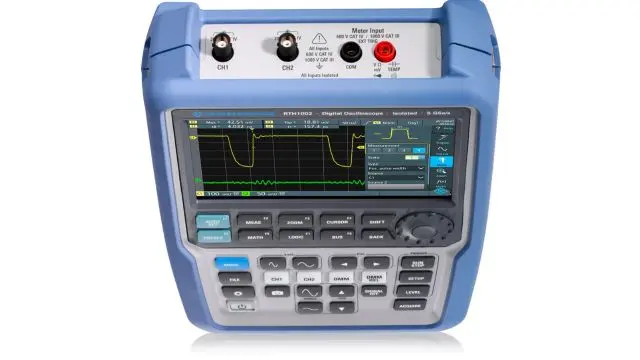

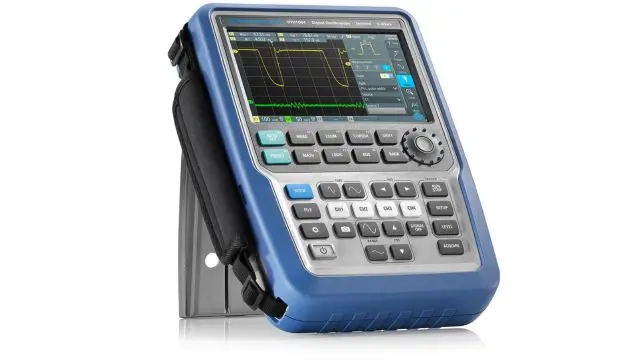

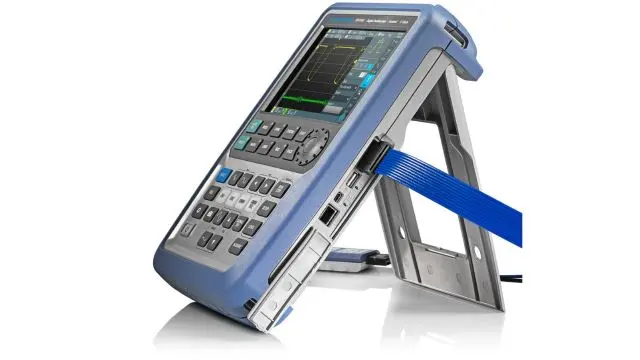

The Rohde & Schwarz R&S®RTH1004 + RTH-B241 is a 4-channel handheld oscilloscope that combines high-performance with portability. It integrates the functionality of a laboratory oscilloscope into a battery-powered handheld device, suitable for both laboratory debugging of embedded designs and field analysis of complex problems.
Base model RTH1004 has a bandwidth of 60 MHz, upgradeable up to 500 MHz via software keycodes. Features sampling rates up to 5 Gs/s (1 active channel), 2.5 Gs/s (2 active channels), and 1.25 Gs/s (4 active channels).
Features a 10-bit A/D converter with vertical sensitivity from 2 mV/div to 100 V/div and offset range up to 200 V. Reaches waveform capture rates up to 50,000 wfms/s to effectively capture transient signals.
Provides 33 automatic measurement functions for easy parameter analysis. Supports protocol trigger and decode capabilities for serial protocols such as I2C, SPI, UART, CAN/LIN, CAN-FD, and SENT.
Equipped with a 7-inch LC TFT color touch-screen (800 x 480 pixels). Supports USB 2.0 host/device, LAN/Ethernet, and SD card slot. Optional Wi-Fi is available for wireless remote control.
Safety rated at CAT IV 600 V / CAT III 1000 V. The design features an IP51-rated dust and drip-protected enclosure with a non-slip, shock-resistant rubberized surface for field environments.
Powered by a rechargeable lithium-ion battery providing up to 4 hours of continuous operation, effectively meeting the requirements of mobile on-site testing.
| Specification Category | Details |
|---|---|
| Model | R&S®RTH1004 (Base Unit) + RTH-B241 (Bandwidth Upgrade Option) |
| Type | Handheld 4-Channel Oscilloscope |
| Bandwidth |
- Base bandwidth of RTH1004: 60 MHz - With RTH-B241 upgrade: 200 MHz (for all 4 channels) |
| Sampling Rate |
- 1-channel active: Up to 5 GSample/s - 2-channels active: Up to 2.5 GSample/s - 4-channels active: Up to 1.25 GSample/s |
| Memory Depth |
- Standard: 10 Mpoints per channel (interleaved mode: 20 Mpoints for 2 channels, 40 Mpoints for 4 channels) - Optional expansion: Up to 100 Mpoints per channel (via RTH-M100 option) |
| Vertical Resolution |
- ADC: 10-bit - Vertical Sensitivity: 2 mV/div to 100 V/div (at 1 MΩ input impedance); 10 mV/div to 500 V/div (at 50 Ω input impedance) - Vertical Offset Range: ±200 V (at 1 MΩ); ±100 V (at 50 Ω) |
| Waveform Capture Rate |
- Normal mode: Up to 50,000 waveforms/second - Turbo mode: Up to 1,000,000 waveforms/second (for signal anomaly detection) |
| Trigger System |
- Trigger Types: Edge, Pulse, Video, Slope, Window, Pattern, Serial (I2C, SPI, UART, CAN, LIN, CAN-FD, SENT), Analog Bus, Frequency - Trigger Sensitivity: 5 mV/div (200 MHz bandwidth, typical) |
| Measurement Capabilities |
- Automatic Measurements: 33 parameters (e.g., amplitude, frequency, period, rise/fall time, duty cycle, phase shift) - Math Functions: Addition, subtraction, multiplication, FFT (up to 1 Mpoint) |
| Protocol Decoding | Supported protocols: I2C, SPI, UART/RS-232/RS-422/RS-485, CAN 2.0A/B, LIN 1.3/2.0/2.1, CAN-FD, SENT (SAE J2716) |
| Display |
- Size: 7-inch color LC TFT touchscreen - Resolution: 800 × 480 pixels - Viewing Modes: Single, Dual, Quad, Zoom, FFT Spectrum |
| Interfaces |
- Standard: USB 2.0 Host (2 ports), USB 2.0 Device (for PC connection), LAN (LXI Core 2019), SD Card Slot (up to 256 GB) - Optional: Wi-Fi (via RTH-WLAN option), Bluetooth (for remote control) |
| Power Supply |
- Rechargeable Lithium-Ion Battery: 7.4 V, 5200 mAh (up to 4 hours of continuous operation) - AC Adapter: 100–240 V AC, 50/60 Hz (for charging and direct operation) |
| Safety Rating |
- IEC 61010-1: CAT IV 600 V, CAT III 1000 V - Pollution Degree: 2 - Overvoltage Category: II |
| Environmental & Durability |
- Operating Temperature: -10 °C to +55 °C - Storage Temperature: -25 °C to +70 °C - Protection Class: IP51 (dust-protected, dripping water protected) - Shock Resistance: 1 m drop (to concrete) |
| Dimensions (W × H × D) | 242 mm × 155 mm × 62 mm (9.53 in × 6.10 in × 2.44 in) |
| Weight | Approximately 1.1 kg (2.43 lb) (including battery) |
