The Rohde & Schwarz R&S® SMBV100B SMBVB-B103 is a high-performance vector signal generator that sets new standards in its class. Here is an overview:
The frequency range of the SMBVB-B103 is from 8 kHz to 3 GHz, covering a wide variety of application scenarios, from low-frequency to relatively high-frequency signal generation.
It features ultra-high output power, reaching up to +34 dBm. This high-power output capability makes it suitable for testing receivers with high-sensitivity requirements and signal transmission in complex electromagnetic environments.
It supports signal generation for all major digital communication standards, including 5G NR, LTE, and WLAN. Equipped with an internal baseband generator, the RF bandwidth can reach up to 160 MHz.
The instrument delivers very low single-sideband (SSB) phase noise. For example, at 1 GHz and a 20 kHz offset, the measured SSB phase noise is less than -134 dBc. Phase noise can be further reduced using optional high-performance OCXO modules.
Equipped with a 7-inch touchscreen, it provides users with an intuitive, convenient operation layout to easily set parameters and generate required signals.
The R&S® SMBV100B can turn into a reliable GNSS simulator, supporting GPS, GLONASS, Galileo, Beidou, and QZSS/SBAS to run complex, repeatable scenarios under controlled conditions.
| Specification Category | Details |
|---|---|
| Model | R&S® SMBV100B (Configuration: SMBVB-B103) |
| Type | Vector Signal Generator (VSG) |
| Frequency Range |
- Base frequency range: 9 kHz to 6 GHz - Optional extension (if applicable): Up to 20 GHz (depends on additional modules) |
| Frequency Resolution | 0.01 Hz |
| Frequency Accuracy | ±(1 × 10⁻¹¹ × set frequency + 0.01 Hz) at 23 °C ± 5 °C (after 24-hour warm-up) |
| Output Power Range |
- Typical: -145 dBm to +20 dBm (at 1 GHz, with standard output) - Minimum measurable power: Down to -160 dBm (with optional preamplifier and power meter) |
| Power Flatness | ±0.7 dB (1 GHz to 6 GHz, from -10 dBm to +15 dBm; typical value) |
| Modulation Capabilities |
- Digital modulation: QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, OFDM, GSM/EDGE, WCDMA/HSPA+, LTE/LTE-A, 5G NR, Wi-Fi (802.11a/b/g/n/ac/ax), Bluetooth (Classic/BLE), etc. - Analog modulation: AM, FM, PM, ΦM |
| Symbol Rate |
- Maximum real-time symbol rate: Up to 614.4 Msps (with internal baseband) - Optional: Up to 2.4 Gsps (with external baseband interface) |
| Baseband Signal Generation |
- Internal baseband: 2 × 16-bit DACs, 1.25 GS/s sampling rate - Memory depth: Up to 1 Gsample per channel (optional expansion) - Waveform formats: IQW, WAV, MAT, CSV, etc. |
| Phase Noise |
- At 1 GHz, 10 kHz offset: ≤ -138 dBc/Hz (typical) - At 1 GHz, 1 MHz offset: ≤ -158 dBc/Hz (typical) |
| Spurious Signals |
- Harmonics: ≤ -30 dBc (up to 6 GHz, output power ≤ +10 dBm) - Non-harmonic spurs: ≤ -60 dBc (1 GHz to 6 GHz, output power ≤ +10 dBm; typical) |
| Phase Jitter | ≤ 0.3 ps rms (1 kHz to 100 MHz integration bandwidth, typical) |
| Interface |
- Standard: LAN (LXI), USB 3.0, GPIB (optional), Trigger I/O - Remote control: SCPI commands, VISA software |
| Display | 7-inch color touchscreen (800 × 480 pixels) |
| Dimensions (W × H × D) | 216 mm × 88 mm × 350 mm (8.5 in × 3.5 in × 13.8 in) |
| Weight | Approximately 4.3 kg (9.5 lb) |
| Operating Temperature Range | 0 °C to 45 °C (32 °F to 113 °F) |
| Power Supply | 100 V to 240 V AC, 50 Hz/60 Hz, 60 VA (max.) |
| Key Optional Features (SMBVB-B103) |
- Enhanced 5G NR modulation support (up to 6 GHz) - Extended internal memory for waveform storage - High-power output optimization (up to +20 dBm) |

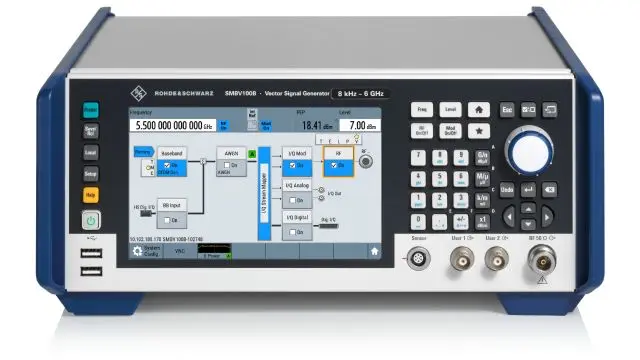

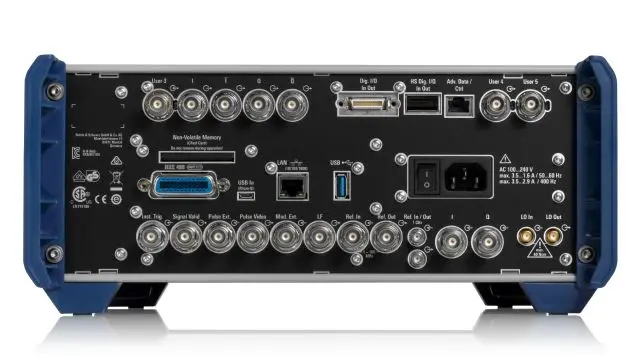

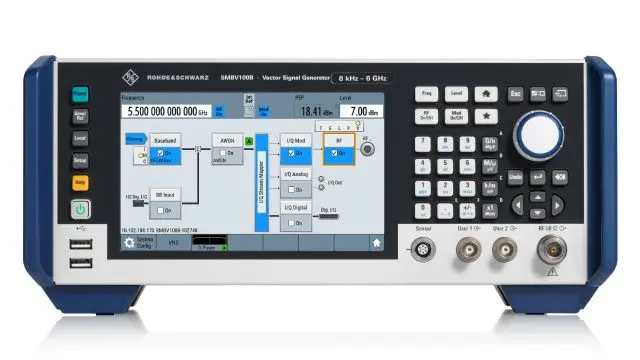

Rohde & Schwarz R&S® SMBV100B SMBVB-B103 vector signal generator (8 kHz to 3 GHz)
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
The R&S® SMBV100B with the SMBVB-B103 option covers a frequency range from 8 kHz to 3 GHz.
It features an ultra-high output power, reaching up to +34 dBm, making it ideal for high-sensitivity receiver testing and signal transmission in complex environments.
It supports all major digital communication standards, including 5G NR, LTE, and WLAN, with a real-time RF bandwidth up to 160 MHz when using the internal baseband generator.
Yes, with the appropriate GNSS options, the R&S® SMBV100B operates as a fully-featured GNSS simulator supporting GPS, GLONASS, Galileo, Beidou, and QZSS/SBAS.
No, this configuration is supplied without a battery and operates on a standard AC power input (100 V to 240 V AC).
