This is an unmanaged industrial Ethernet switch belonging to the unmanaged PoE switch 1000 Series product line, classified as a standalone unit. Specially engineered for rugged industrial environments, the switch features a robust housing constructed from polycarbonate fiber-reinforced material and DC01 aluminum/steel sheet.

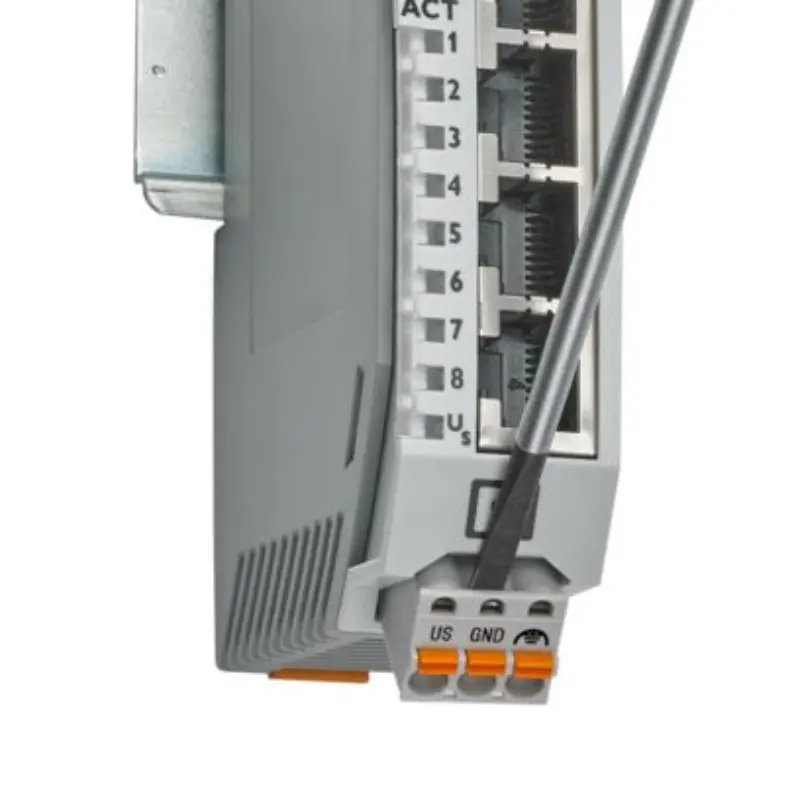

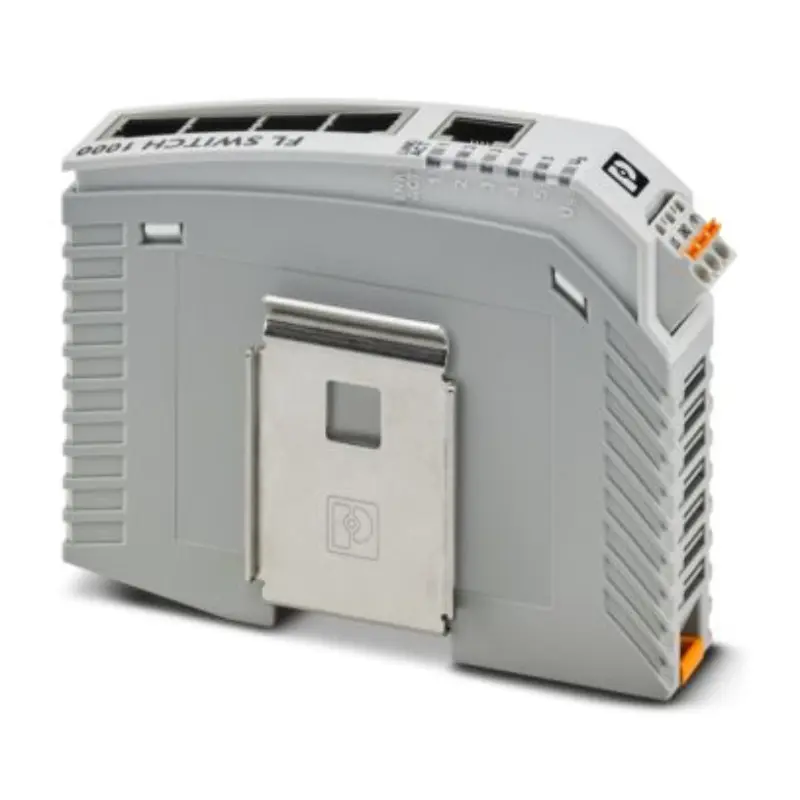

Model Name: FL SWITCH 1000N-8POE - Industrial Ethernet Switch 1343031
| Insulation & General Characteristics | |
|---|---|
| Product Type | Current measuring transducer / Switch |
| Product Family | Unmanaged PoE Switch 1000 |
| Type | Stand-alone |
| Width / Height / Depth | 40 mm / 140.4 mm / 92.4 mm |
| Notes on Operation | Mode A PoE |
| Housing Material | Polycarbonate fiber reinforced / Aluminum / steel sheet DC01 |
| Mounting Type | DIN rail mounting |
| Connection Method | RJ45 |
| Transmission Speed | 10/100 Mbps |
| Transmission Physics & Length | Ethernet RJ45 / 100 m (Between transmitter & receiver) |
| Signal LEDs | LNK/ACT, POE |
| No. of Channels | 8 (RJ45 PoE ports) |
| Power & Electrical Properties | |
| Supply Voltage (DC) | 24 V (Range: 20 V DC ... 57 V DC) |
| Power Supply Connection | Via COMBICON, max. conductor cross-section 2.5 mm² |
| Residual Ripple | 3.6 VPP (within the permitted voltage range) |
| Max. / Typ. Current Consumption | 7 A (at 20 V DC) / 95 mA (at 24 V DC) |
| Connection Technology Details | |
| Connection Name / Pluggable | Power supply / Yes |
| Connection Method | Push-in spring connection |
| Conductor Cross-section (Rigid/Flexible) | 0.2 mm² ... 2.5 mm² / AWG 24 ... 12 |
| Conductor with Ferrule (with/without plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Stripping Length | 10 mm |
| Reliability Standards (MTTF) | |
| MIL-HDBK-217F Standard | 58 Years (temp 25°C, operating cycle 100%) |
| SN 29500 Standard | 521.3 Years (temp 25°C, operating cycle 21%) |
| Telcordia Standard | 583.5 Years (temp 25°C, operating cycle 21% (5 days/wk, 8 hrs/day)) |
| Basic Functions | PSE, complies with IEEE 802.3af/at, Autonegotiation, Store & Forward switching mode |
| Item Number | 1343031 |
| Packing Unit / MOQ | 1 pc / 1 pc |
| Weight (including packing) | 539 g |
| Weight (excluding packing) | 457 g |
| Customs Tariff Number | 85176200 |
| Country of Origin | TW |
