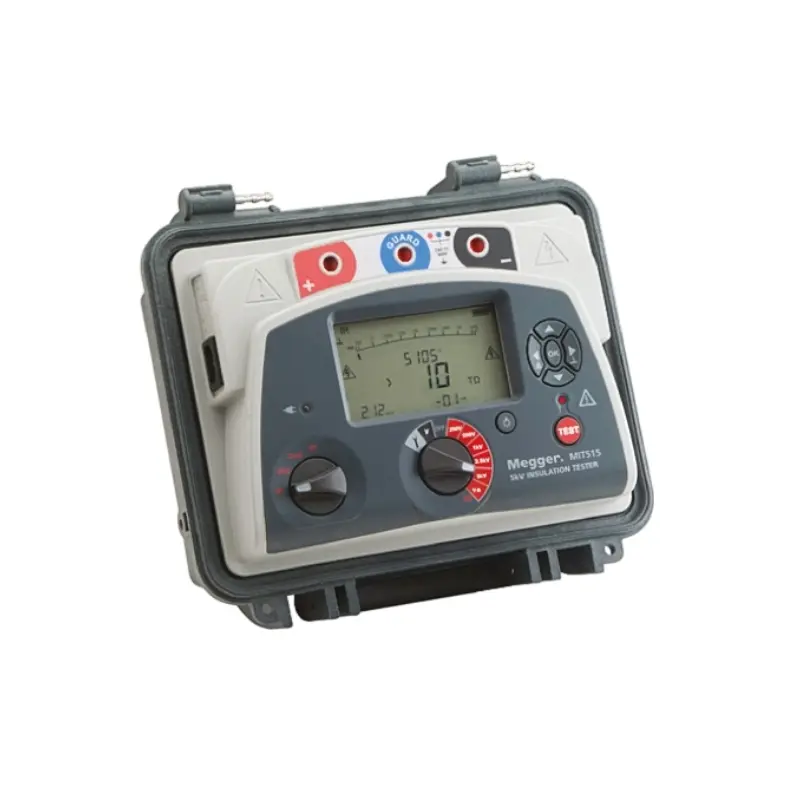

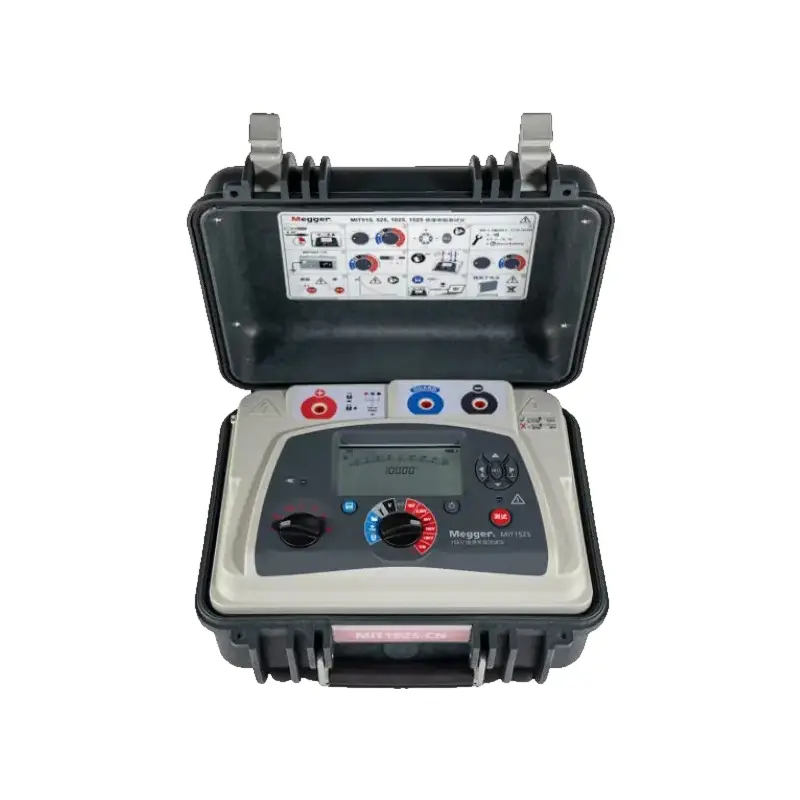

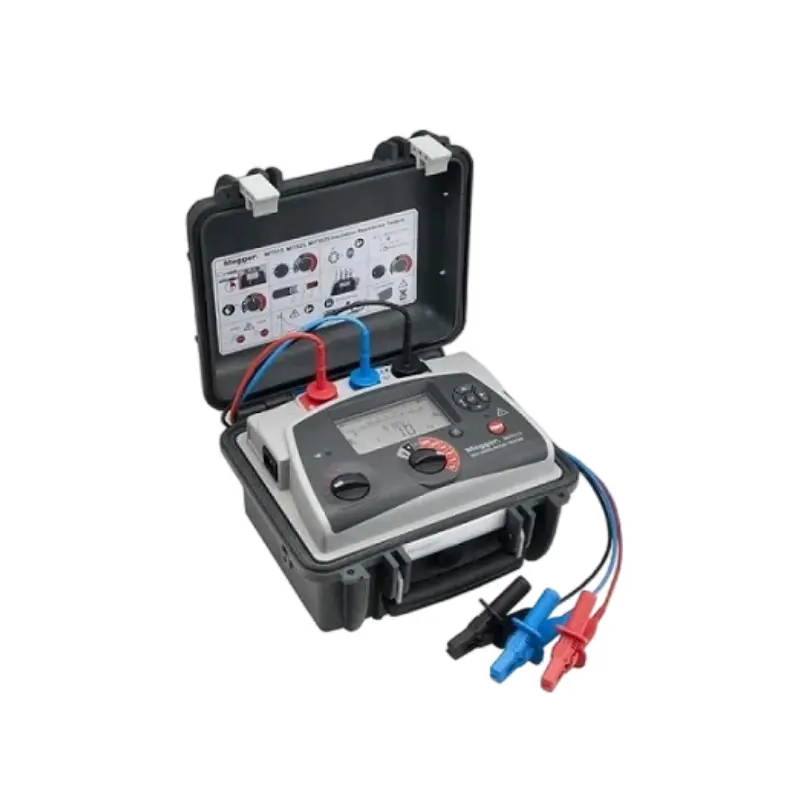

| Parameter | Details |
|---|---|
| Analog Insulation Range | 100 kΩ to 10 TΩ |
| Digital Insulation Range | 10 kΩ to 10 TΩ |
| Test Voltages | 250 V, 500 V, 1000 V, 2500 V, and 5000 V |
| User Defined Test Voltages | 100 V to 1 kV in 10 V Steps; 1 kV to 5 kV in 25 V Steps |
| Accuracy (23°C) | ±5% to 1 TΩ, ±20% to 10 TΩ |
| Voltage Output Accuracy (0 to 30°C) | +4% - 0% ±10 V of nominal test voltage at 1 GΩ load |
| Voltmeter Range | 30 to 660 V ac or dc, 50/60 Hz Accuracy: ±3% ±3 V Frequency Range: 45 Hz to 65 Hz |
| Short Circuit Current | 3 mA Nominal, Max. Power on All Loads Outperforming Many 5 mA Testers |
| Insulation Alarm | 100 kΩ to 1 GΩ |
| Current Measurement | Range: 0.01 nA to 6 mA Accuracy: ±5% ±0.2 nA at All Voltages |
| Capacitance Range Above 500 V | 10 nF to 25 µF (Dependent on Measurement Voltage) Accuracy (23°C): ±10% ±5 nF |
| Capacitor Charge | <3 s per µF at 3 mA to 5 kV |
| Capacitor Discharge | <250 ms/µF to Discharge from 5000 V to 50 V |
| Timer Range | Up to 99 Minutes, 15 Seconds Minimum Setting |
| Memory Capacity | 5 1/2 Hours Continuous Logging Every 5 Seconds or 33 Logged PI Tests or 350 Logged IR Tests |
| Industry-Standard Tests | IR, IR(t), DAR, PI |
| Safety Rating | CAT IV 600V |
| Dimensions | L 315 mm x W 285 mm x H 181 mm |
| Weight | 4.5 kg |
| Operating Temperature | -20 °C to +50 °C |
| Power Supply | 85 - 265 Veff 50/60 Hz, 60 VA; 11.1V, 5.2 Ah lithium-ion battery |
| Battery Life | Continuous operation for 6 hours at 5 kV/100 MΩ load |
| Charging Time | 2.5 hours for a full charge |
