| Parameter | Specification |
|---|---|
| Insulation Test Voltage | 50V, 100V, 250V, 500V |
| Insulation Resistance Accuracy | 50V 10GΩ: ±2% ±2 digits ±4.0% (per G)Ω 100V 20GΩ: ±2% ±2 digits ±2.0% (per G)Ω 250V 50GΩ: ±2% ±2 digits ±0.8% (per G)Ω 500V 100GΩ: ±2% ±2 digits ±0.4% (per G)Ω |
| Display Range | Analog: 1GΩ full-scale display |
| Resolution | 0.1kΩ |
| Short-Circuit/Charging Current | 2mA +0% -50% (in accordance with EN 61557-2 (2007) standard) |
| Open-Circuit Voltage | -0% +2% ±2V |
| Test Current | 1mA. The transmitted insulation value is up to 2mA |
| Continuity Test Range | 0.01Ω to 1MΩ |
| Continuity Test Accuracy | ±3% ±2 digits (0 to 100Ω); ±5% ±2 digits (>500kΩ - 1MΩ not specified) |
| Open-Circuit Voltage (Continuity) | 5V ±1V |
| Test Current (Continuity) | 200mA (-0mA +20mA) (0.01Ω to 4Ω) |
| Lead Resistance | Zero-compensation resistance up to 10Ω |
| AC Voltage Measurement Range | 10mV to 600V trms sinusoidal (40Hz to 400Hz) |
| DC Voltage Measurement Range | 0 to 600V |
| Frequency Measurement Range | 15Hz to 400Hz |
| Capacitance Measurement Range | 0.1nF to 10μF |
| Power Supply | 6 x 1.5V IEC LR6 (AA) alkaline batteries; 6 x 1.2V Ni-MH rechargeable batteries can also be used |
| Dimensions | 228mm x 108mm x 63mm |
| Weight | 800g |
| Operating Temperature Range | -10°C to +55°C |
| Safety Rating | CAT IV 600V, compliant with EN 61010-1 requirements |
| Protection Class | IP54 |

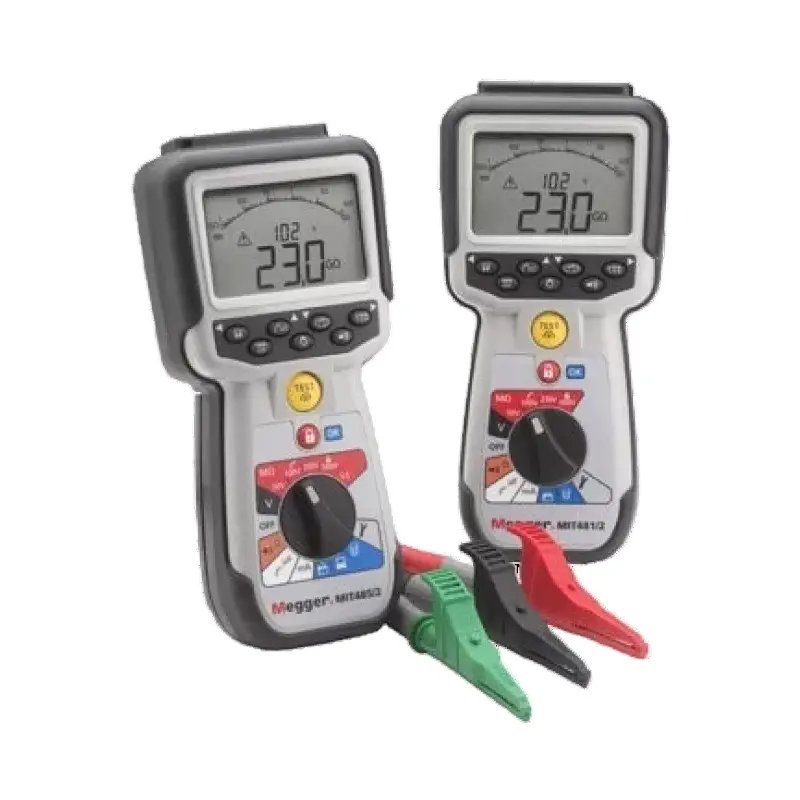

| Models | Megger Insulation Resistance Tester MIT480-2 series MIT481-2 |
|---|---|
| Feature | • Insulation testing up to 500 V and 100 GΩ range in a hand held instrument |
| Feature | • 3-wire connection for A, B, and E (Tip, Ring and Ground/Earth) connection |
| Feature | • Gated access to 500 V to prevent accidental damage |
| Feature | • Rechargeable options for mains and car charging |
| Feature | • Single range, faster continuity testing from 0.01 Ω to 1 MΩ |
| Feature | • Differential measurement capability |
| Feature | • Stabilised insulation test voltage |
| Feature | • 600 V Trms AC and DC voltage measurement |
| Feature | • Test result storage and Bluetooth® downloading |
| Feature | • CAT IV 600 V and IP 54 |
