| Parameter | Specification |
|---|---|
| Insulation Test Voltage | 50V, 100V, 250V, 500V, 1000V DC |
| Insulation Resistance Measuring Range | 2GΩ - 200GΩ |
| Insulation Resistance Accuracy | ±3% ±2 digits |
| Continuity Test Range | 0.01Ω - 999Ω |
| Continuity Test Current | 200mA (0.01Ω - 9.99Ω), 20mA (10.0Ω - 99.9Ω) |
| Continuity Test Accuracy | ±3% ±2 digits (0 - 100Ω) |
| Voltage Measurement Range | 25 - 600V AC (50/60Hz) or DC |
| Voltage Measurement Accuracy | ±2% (DC), not specified (AC) |
| Display Type | LCD, combines analog arc with dual-digital readout |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | Not specified |
| Protection Class | IP54 |
| Safety Rating | CAT IV 600V, meets EN 61010-1 requirements |
| Battery Type | 5 x AA alkaline or rechargeable Ni-MH batteries |
| Dimensions | Not specified |
| Weight | Approximately 600g |

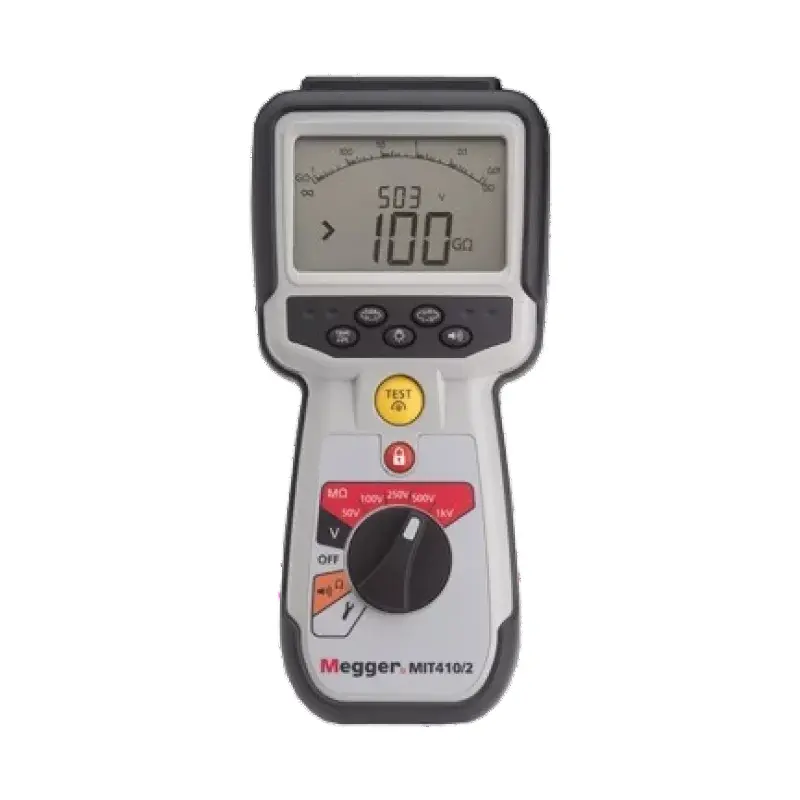

| Models | Megger Insulation Resistance Tester MIT400/2 series MIT410/2 |
|---|---|
| Feature | • Insulation testing up to 1000 V and 200 GΩ range • Stabilised insulation test voltage (New) • Single range, faster continuity testing from 0.01 Ω to 1 MΩ (New) • 600 V T RMS AC and DC voltage measurement • Live circuit detection and protection • User variable insulation test voltage from 100V to 1000V (New) depending on model • Test result storage and Bluetooth® downloading depending on model • Rechargeable options for mains and car charging (New) depending on model • CAT IV 600 V and IP54 |
