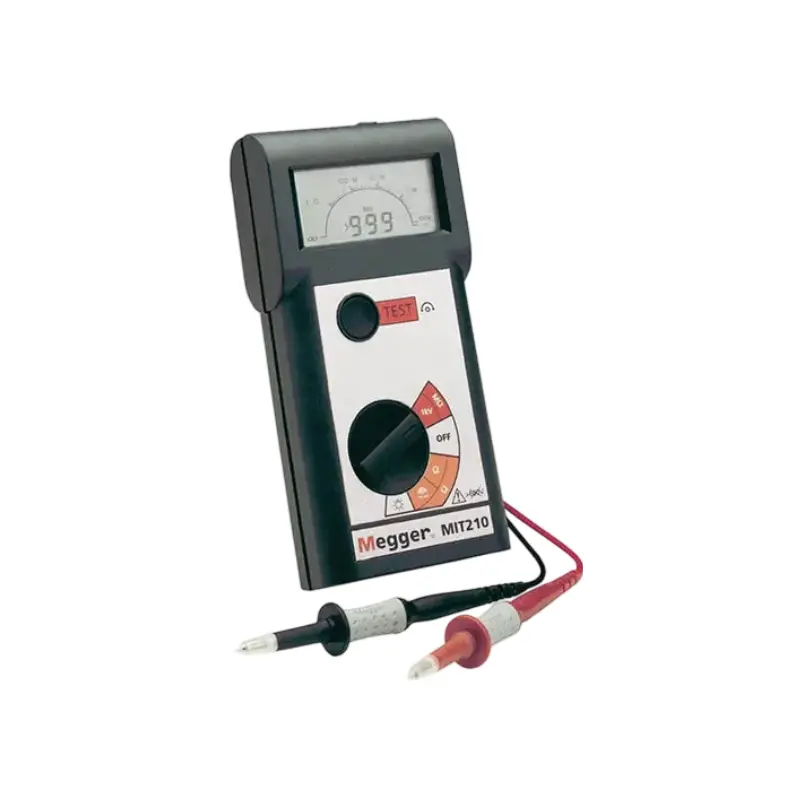

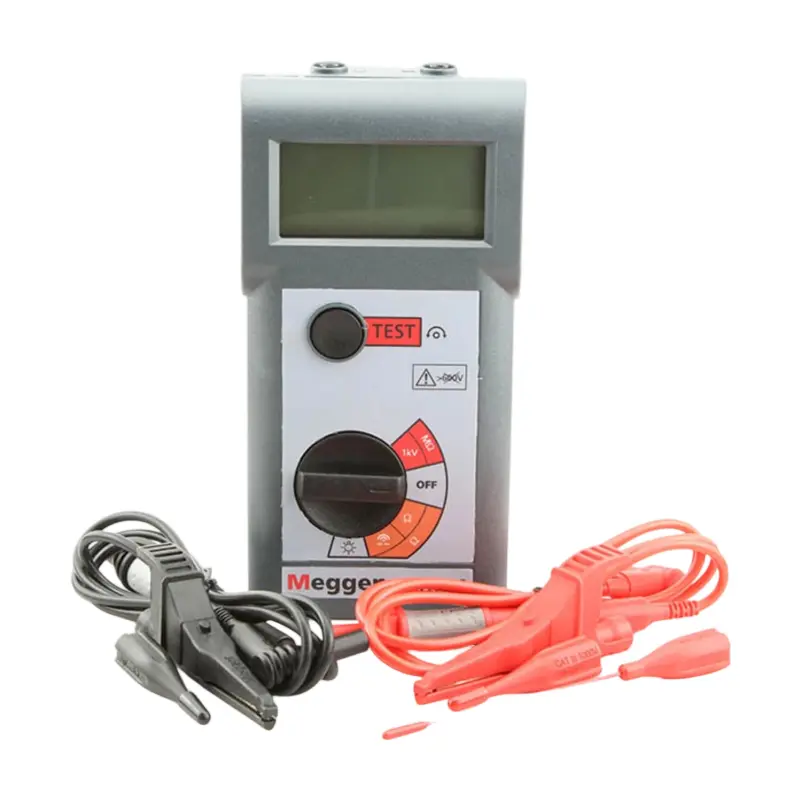

The Megger MIT210, part of the MIT200 series, is a compact, portable, and versatile insulation and continuity tester suitable for testing a wide range of electrical equipment and circuits.
Ideal for electrical contractors, domestic & industrial systems, and maintenance service departments. Recommended for testing:
| Parameter | Specification |
|---|---|
| Model | MIT210 |
| Series | MIT200 |
| Brand | Megger |
| Instrument Type | Portable insulation resistance tester (with continuity & voltage measurement) |
| Insulation Resistance Testing | |
| Test Voltage Ranges | 250 V DC, 500 V DC, 1000 V DC |
| Insulation Resistance Range | 10 kΩ – 1000 MΩ |
| Accuracy (20°C ±5°C) |
- 10 MΩ – 100 MΩ: ±3% of reading ±2 digits - 100 MΩ – 1000 MΩ: ±5% of reading ±2 digits - Below 10 MΩ: ±10% of reading ±2 digits |
| Polarization Index (PI) | Supported (1 min / 10 min ratio calculation) |
| Dielectric Absorption Ratio (DAR) | Supported (30 sec / 60 sec ratio calculation) |
| Continuity Testing | |
| Continuity Test Current | Max. 200 mA (at <10 Ω) |
| Continuity Resistance Range | 0.01 Ω – 1000 Ω |
| Accuracy (20°C ±5°C) |
- 0.01 Ω – 10 Ω: ±3% of reading ±2 digits - 10 Ω – 1000 Ω: ±5% of reading ±2 digits |
| Lead Compensation | 0 – 9.99 Ω (manual zero adjustment) |
| AC Voltage Measurement | |
| Voltage Range | 25 V – 600 V AC (50/60 Hz) |
| Accuracy | ±1% of reading ±1 digit |
| Live Circuit Warning | Activates when connected to >25 V AC/DC; blocks insulation/continuity tests if >50 V |
| Display, Physical & Environmental | |
| Display Type | Dual digital/analog LCD (with DART™ technology) |
| Dimensions (W×H×D) | 195 mm × 98 mm × 40 mm |
| Weight | ~550 g (including batteries) |
| Protection & Safety Class | IP40 (IEC 60529) | CAT III 600 V (IEC 61010-1) |
| Operating Temperature | -10°C – +55°C |
| Power Supply | 6 x 1.5 V AA alkaline batteries (or optional rechargeable Li-ion pack) |
