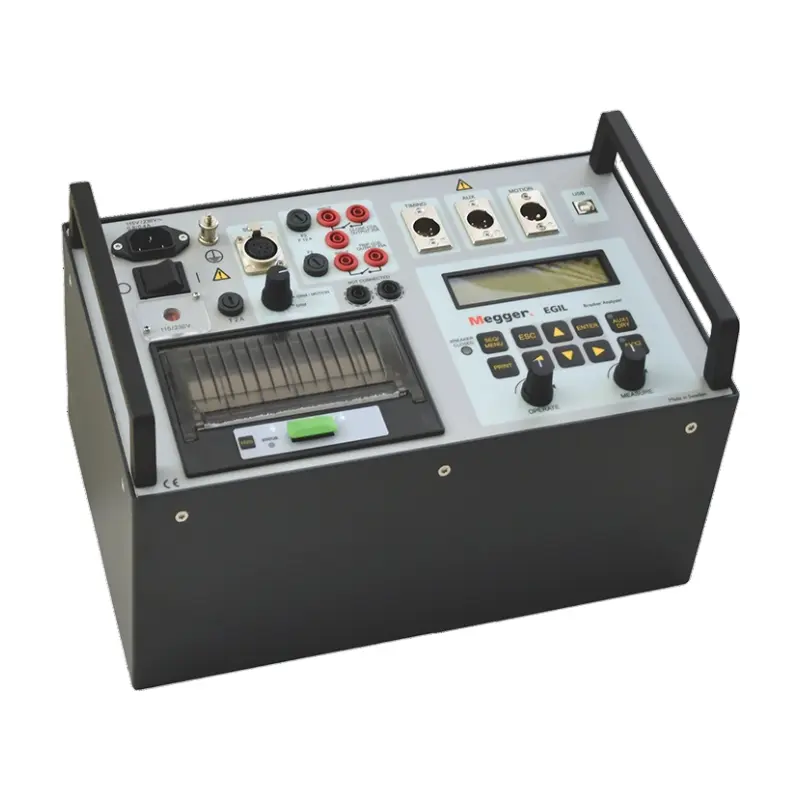

The Megger EGIL213 is a circuit breaker analyzer from the EGIL200 series. Designed for reliability and precision, it offers comprehensive test functionalities for medium- and high-voltage circuit breakers.
Optimized for medium- and high-voltage circuit breakers configured with one contact per phase. Perfect for substation routine testing and diagnostics.
| Parameter Category | Item | Specification |
|---|---|---|
| Basic Information | Model Name | Megger EGIL213 Circuit Breaker Analyser |
| Product Series | EGIL200 Series | |
| Protection Rating | IP67 (instrument housing) | |
| Measurement Channels | Auxiliary Contact Timing Channels | 3 channels |
| Digital Inputs (for Encoders) | 3 channels (for incremental motion sensors) | |
| BNC Inputs (for Current Clamps) | 1–3 channels (dedicated to current clamps) | |
| Multifunctional Analog Channels | 1–3 channels | |
| Electrical Performance | Output Open-Circuit Voltage | 4.095V ± 4mV |
| Short-Circuit Current | 115mA | |
| Input Voltage Range | -4V to +4V | |
| Measurement Resolution | 2mV | |
| Measurement Inaccuracy | 1% of the measurement range | |
| Power Supply Voltage | 115/230V AC (switchable), 50/60Hz | |
| Power Consumption | Maximum 100VA | |
| Environmental Conditions | Operating Temperature | 0°C to +50°C |
| Operating Humidity | 5%–95% relative humidity, non-condensing | |
| Mechanical Dimensions | Dimensions (L × W × H) | 360mm × 210mm × 190mm |
| Compliance | Applicable Standards | IEEE C37, IEC 62271 (covers all standard measurements for circuit breakers) |
