Wholesale Megger DLRO2X 2 A low resistance ohmmeters Supplier, Product

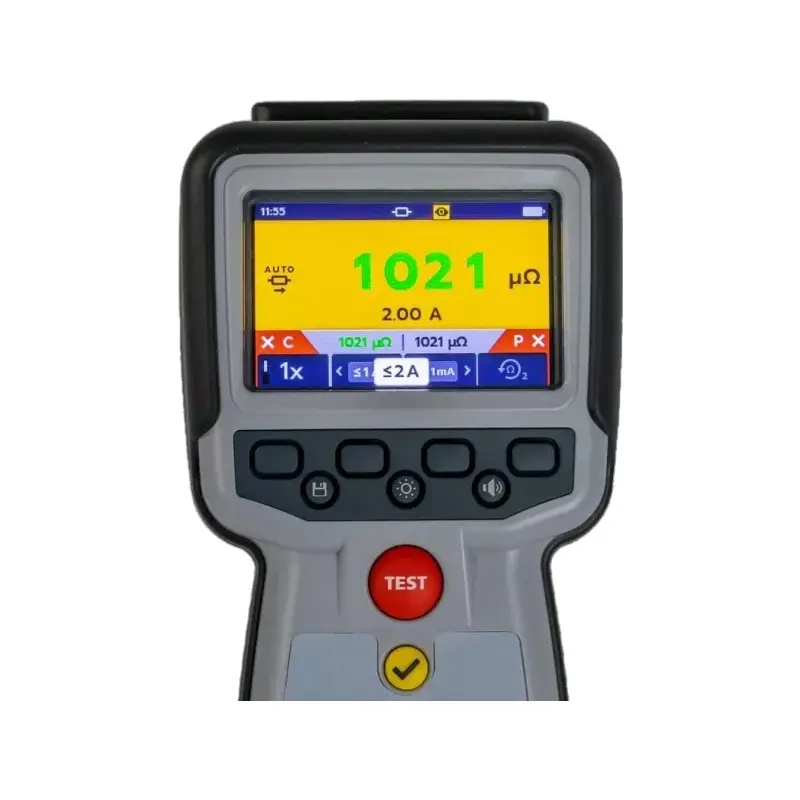

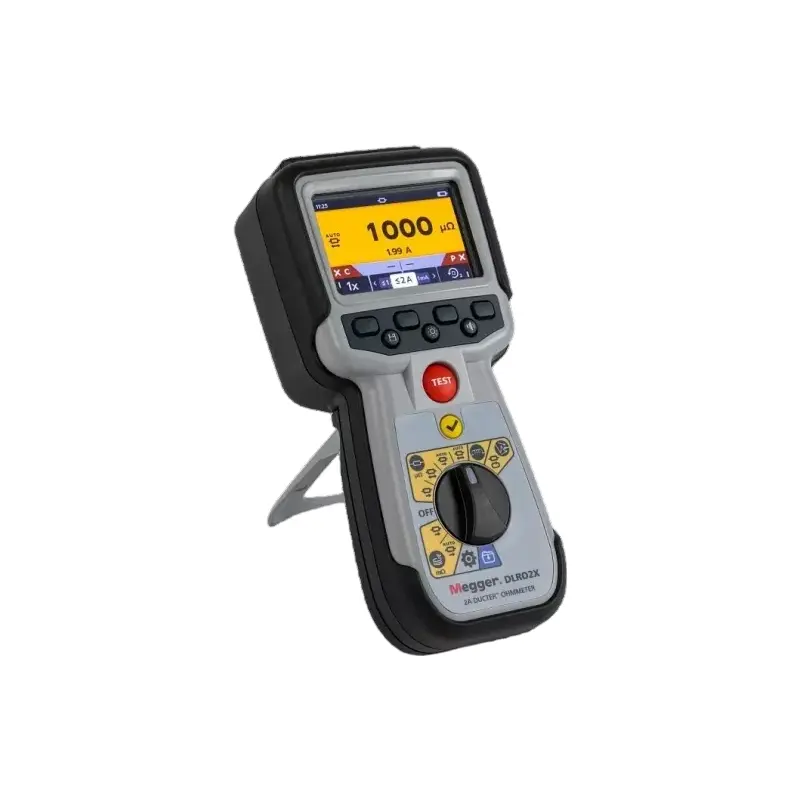

The DLRO2X 2 A Low resistance ohmmeter is a handheld instrument designed to give you fast, accurate, repeatable measurements, even in electrically noisy locations. The DLRO2X is the latest in a long line of instruments to proudly display the Ducterâ„¢ brand, the Ducterâ„¢ testers being as well-known and relied upon as Megger insulation resistance testers.

Send Inquiry

Product Description

Product Overview

The Megger DLRO2X is a rugged, 2A, low-resistance ohmmeter designed for accurate and reliable measurements in a wide range of applications, including industrial, railway, and avionics.

Measurement Capabilities

Resistance Range: 1 µΩ to 2000 Ω, meeting a wide range of low-resistance measurement needs.
Resolution: Reaches 0.1 µΩ (for 1 µΩ–999.9 µΩ), 1 µΩ (for 1.000mΩ–9.999mΩ), 10 µΩ (for 10.00mΩ–99.99mΩ), 0.1mΩ (for 100.0mΩ–999.9mΩ), and 0.01Ω (for 1Ω–2000Ω).
Test Current: Selectable 2A, 1A, 100mA, 10mA, and 1mA in Normal Mode; 1A fixed in Long Test Lead Mode.
Accuracy: ±1% of reading ±2 digits (Bidirectional Mode); ±1% of reading ±10 digits (Unidirectional Mode).

Key Features

Noise Suppression: Difference meter and Confidence Meter™ ensure accurate measurements in high-noise conditions.
Test Modes: Bidirectional, unidirectional, and inductive load test functions (safely testing at 1A).
Data Management: Internal storage up to 8 million records, Bluetooth connectivity, and Cert Suite asset software compatibility.
Safety & Rating: CAT III 600V/CAT IV 300V safety rating, 600V false touch protection, and IP54 dust/water resistance.

Specifications

Parameter	Specification Details
Data storage and communication	USB
Max output current (DC)	2 A
Power source	Battery
Safety features	CAT III 600 V / CAT IV 300 V
Output Voltage	2A mode: 2.2V 1A mode: 3.24V
Safety Rating	CAT III 600V / CAT IV 300V (in accordance with IEC61010 standard) Protection against accidental live 600V connections (without blowing a fuse)
Protection Level	IP54 (dust-proof and water-proof)
Operating Temperature	0°C - 50°C
Storage Temperature	-20°C - 50°C
Humidity	Operating: ≤95%, Storage: ≤90% (non-condensing)
Battery Type	6 * HR6 nickel-metal hydride rechargeable batteries (AA alkaline batteries can be used as alternative). Charging time: < 4 hours
Battery Life	>1000 bidirectional tests (2A, 1Ω load)
Display	Full-color LCD screen with user-adjustable backlight
Data Storage	Internal storage: 8 million records. Supports storage classified by asset ID (256 IDs, 256 records per day)
Communication Interface	USB (for firmware updates) + Bluetooth (for data transfer)
Dimensions	228mm (H) x 105mm (W) x 75mm (D) (8.98 x 4.1 x 2.95 inches)
Weight	905 grams

Models & Features

Model	Included Features
Megger DLRO2X	Noise rejection mode with Confidence Meter™ Manual and auto save results for export to USB Difference Meter for quick data comparisons Use long test leads at 1 A using dedicated test mode Safely test the resistance of inductive loads at 1 A <600 V active protection against inadvertent live connections without blowing a fuse Ideal for outdoor use with protection against dust and moisture to IP54 Industry standard safety rated at CAT III 600 V/CAT IV 300 V Transfer results via Bluetooth

Model

Included Features

Megger DLRO2X

Noise rejection mode with Confidence Meter™
Manual and auto save results for export to USB
Difference Meter for quick data comparisons
Use long test leads at 1 A using dedicated test mode
Safely test the resistance of inductive loads at 1 A
<600 V active protection against inadvertent live connections without blowing a fuse
Ideal for outdoor use with protection against dust and moisture to IP54
Industry standard safety rated at CAT III 600 V/CAT IV 300 V
Transfer results via Bluetooth

Delivery Information

Dimension: 228 * 105 * 75mm
Weight: 905g
Battery Parameters: Equipped with 6 IEC HR6 nickel-metal-hydride (NiMH) rechargeable batteries
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals & Resources

Megger DLRO2X Datasheet Document Preview

Megger DLRO2X 2 A low resistance ohmmeters datasheet.pdf

Download

Frequently Asked Questions

1. What is the measurement range of the Megger DLRO2X?

The ohmmeter has a wide resistance measurement range from 1 µΩ to 2000 Ω, making it suitable for a broad variety of low-resistance applications.

2. How long does it take to charge the device, and what is its battery life?

It charges in less than 4 hours using six HR6 NiMH rechargeable batteries, and offers a battery life capable of performing over 1,000 bidirectional tests (at 2A with a 1Ω load).

3. What safety protections does the DLRO2X feature?

The device holds a safety rating of CAT III 600 V / CAT IV 300 V under the IEC61010 standard. It also offers up to 600 V active protection against accidental live connections without blowing a fuse.

4. Can this low-resistance ohmmeter be used outdoors?

Yes. The Megger DLRO2X has an IP54 protection level, making it dust-proof and water-proof, which is ideal for demanding outdoor environments.

5. How does the Noise Rejection mode and Confidence Meter™ help?

The Confidence Meter™ ensures stable and reliable measurements by suppressing noise, allowing for accurate readings even in highly challenging, high-noise settings.

6. How many test records can be stored on the device?

The internal storage of the DLRO2X can hold up to 8 million records. It supports data organization classified by up to 256 asset IDs (with up to 256 records per day).
