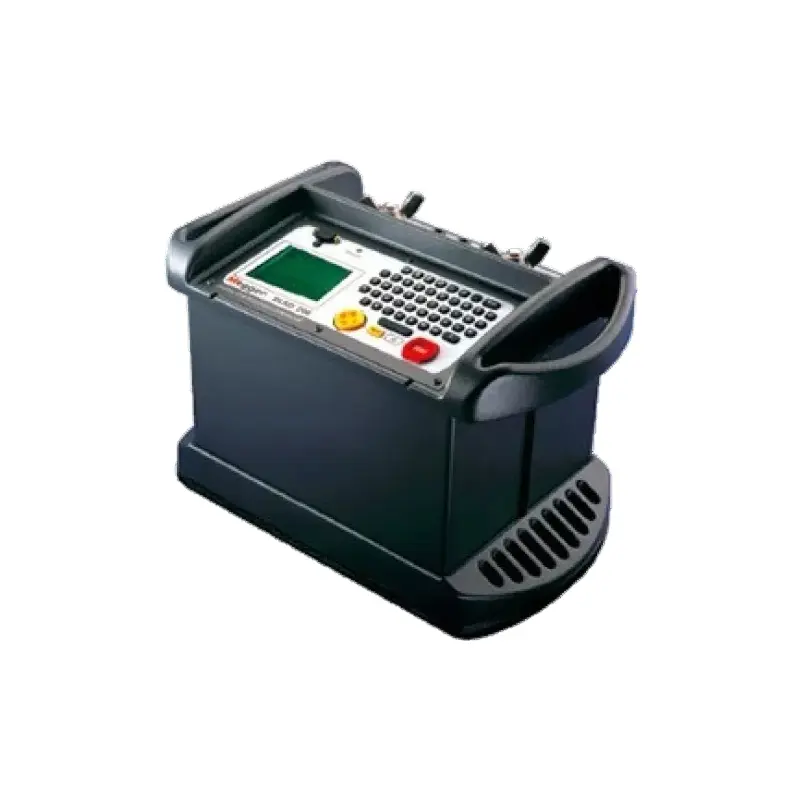

The Megger DLRO200 is a high-performance 200A micro-ohmmeter designed for precision resistance measurements in demanding industrial environments.
Measurement Range: 0.1µΩ - 1Ω with test current range from 10A to 200A DC.
Optimal Resolution: High-precision measurement with 0.1µΩ resolution.
Data Storage: Internal memory for up to 300 sets of results and annotations.
High-Res Display: Backlit LCD showing all parameters and results clearly.
Operating Modes
Normal Mode
The test current rapidly rises to the set value, remains for 2 seconds, and then decreases. Process takes approx. 10 seconds.
Automatic Mode
Set the current and connect test leads; the test begins automatically upon connecting the voltage test leads.
Continuous Mode
Injects current continuously, measuring voltage every two seconds until stopped by the user or circuit disconnection.
Specifications
Specification
Details
Model
DLRO200
Max Output Current
200 A DC
Resistance Range
0.1 µΩ - 999.9 mΩ
Resolution
0.1 µΩ
Accuracy (Resistance)
Better than ±1% from 30µΩ; Better than ±2% from 100µΩ to 300µΩ
Accuracy (Voltage/Current)
V: ±0.5% +0.1 mV / I: ±0.5% +0.1 A
Data Transfer
RS232 Port
Power Supply
100-265 V ac rms 50/60Hz
Safety Standard
IEC 61010-1
Dimensions
410 x 250 x 270 mm
Weight
14.5 kg (excluding leads)
Applications & Information
Applications: Ideal for testing circuit breaker contacts, switch contacts, busbar connectors, and other high-current requirements.
Standard Accessories: Includes 5m test leads and data download software.
Technical Resources
Megger DLRO200 Datasheet Reference
Frequently Asked Questions (FAQ)
Q1: What is the maximum test current of the Megger DLRO200?A: The instrument provides a high-current DC output ranging from 10A up to a maximum of 200A.
Q2: What is the best measurement resolution available?A: The DLRO200 offers an optimal resolution of 0.1 µΩ, making it suitable for very low resistance measurements.
Q3: Can the test results be exported to a computer?A: Yes, it features an internal memory for 300 results which can be downloaded via the RS232 port using the supplied software.
Q4: What are the three operating modes used for?A: Normal mode is for standard tests, Automatic mode starts measurements as soon as probes contact the piece, and Continuous mode is for monitoring resistance over time.
Q5: Is the DLRO200 portable for field use?A: Yes, despite its high current output, it weighs less than 15 kg (approx. 14.5 kg) and has compact dimensions of 410 x 250 x 270 mm.
Q6: What safety standards does this micro-ohmmeter comply with?A: The instrument is designed to comply with the IEC 61010-1 safety standard.
