📋 Overview
This servo drive incorporates a new high-computing platform with a 2.4-fold increase in clock frequency, featuring an 8K position loop and 16K velocity loop. Response speed and control precision are significantly enhanced to meet the demands of highly dynamic applications such as robotics and logistics equipment.
Regarding performance enhancements, the drive supports stable operation at temperatures as low as -20°C. Motors can be specified with an IP67 protection rating, ensuring resilience against extreme cold, humidity, and dusty environments. This makes it suitable for diverse sectors including logistics, healthcare, and outdoor equipment.
Its power supply voltage range spans 24–60V, with continuous output current increased by 20% and robust overload capacity, making it suitable for high-intensity applications like heavy-duty mobile robots (AGVs/AMRs).
For debugging and communication, the Type-C interface enables direct connection to computers. Paired with KS3 software, it achieves plug-and-play functionality, reducing debugging time by over 50%. It simultaneously supports multi-protocol hierarchical communication via RS485, CANopen, and EtherCAT, facilitating seamless multi-axis coordination to meet intelligent requirements for complex production lines.
For safety, the drive integrates multiple protective mechanisms including overspeed, overheat, and short-circuit protection, and holds UL and CE certifications, effectively ensuring human-machine collaboration safety and long-term stable operation.
⚙ Specifications
| Item |
Specification |
| Model |
FD125 - AB/EB - 000 |
| Power Range |
200 - 400W |
| Maximum Continuous Output Current (rms) |
15A (up to 12A without auxiliary cooling plate) |
| Peak Current |
48A |
| Control Mode |
RS485, CANopen (FD125 - AB - 000); EtherCAT (FD125 - EB - 000); Pulse & Direction |
| Power Supply Voltage |
DC 24 - 60V |
| Features |
Automatically identify motor parameters; Motor temperature monitoring and over - temperature protection; S - curve and parameter self - tuning function; Motor overspeed protection; USB - C debugging port |
💻 Models

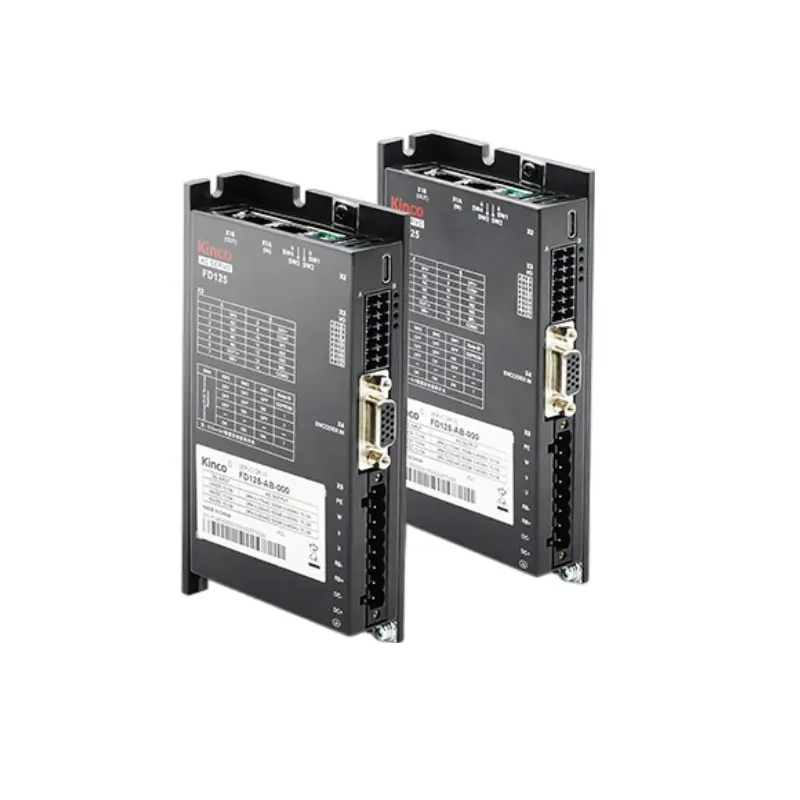

Kinco FD1X5 series low-voltage servo drive FD-125B-000
🔁 Delivery Information
Dimensions & Weight
Dimension: 90*60*28mm
Weight: 0.3kg
Battery parameters
Without battery
Note: The delivery cycle of industrial products is influenced by various factors, such as the inventory status of the products, the scale of the order quantity, the region where the customers are located, and the choice of transportation methods.
📂 Manuals + resources
❓ Frequently Asked Questions (FAQ)
Q1: What is the input voltage range for this servo drive?
A1: The power supply voltage range spans from DC 24V to 60V, making it suitable for low-voltage applications.
Q2: How does the drive perform in cold or harsh environments?
A2: The drive supports stable operation in temperatures as low as -20°C. Additionally, motors can be specified with an IP67 protection rating for moisture and dust resilience.
Q3: Which communication protocols are supported?
A3: It supports hierarchical communication via RS485, CANopen, and EtherCAT, depending on the model, as well as Pulse & Direction control.
Q4: Does the drive feature any built-in safety protections?
A4: Yes, it includes multiple protective mechanisms such as overspeed, overheat, and short-circuit protection, and it is certified by UL and CE.
Q5: How easy is it to debug this servo drive?
A5: It features a Type-C interface for direct PC connection. Paired with KS3 software, it provides plug-and-play functionality that reduces debugging time by over 50%.
