| Supported data rates | 120 Gbaud |
| Standards |
PCIe 7.0 PCIe 6.0 PCIe 5.0 USB4 400/800/1600 GbE OIF-CEI-112G OIF-CEI-224G |
| Number of channels | 1 to 2 |
| Module type |
Pattern Generator Error Analyzer |
| Line coding |
NRZ PAM3 PAM4 PAM6 PAM8 |
| Amplitude | 1.4Vpp @ 120 GBd |
| Clock data recovery built - in | Yes w/ adj loop bandwidth (16 MHz max) |
| Equalizer | FFE |
| Jitter Type | SJ (LF, HF), RJ, BUJ, Clk/2 |
| Link Training | 800G, 1.6T |
| Maximum data rate | 120 GBd |
| Type | BERT |
| Model | Function | Description |
|---|---|---|
| M8053A Interference Source 64 GHz | The interference source enables interference tolerance testing of highest - speed digital receivers supporting symbol rates above 64 GBd. Recommended for 1.6T receiver stress testing and future generations of PCIe. |
• RI and SI up to 64 GHz • 2 differential channels • 2 - slot AXle module • Control from M8070B |
| M8054A Interference Source 32 GHz | The interference source, can be used as level interference source with sinusoidal and random modulation (also called gaussian or white noise). Recommended for USB, PCIe, SATA, SAS, 400GbE receiver stress testing. |
• RI and SI up to 32 GHz • 4 differential channels • 1 - slot AXle module • Control from M8070B |
| M8195A/ M8196A/ M8194A Arbitrary Waveform Generators | The AWGs are flexible sources with wide bandwidth suitable for multiple applications. They can also be used as level interference source with sinusoidal and random modulation. |
• RI and SI up to 25/ 32/ 40 GHz • 4 differential channels • 1 - slot AXle module • Control from M8070B |
| 81160A Pulse Function Arbitrary Noise Generator 500 MHz | High precision pulse generators enhanced with versatile signal generation, modulation and distortion capabilities. Recommended for automotive Ethernet with symbol rates < 10 GBd. |
• Noise up to 160 MHz • Sinewave up to 500 MHz • Stand - alone instrument |

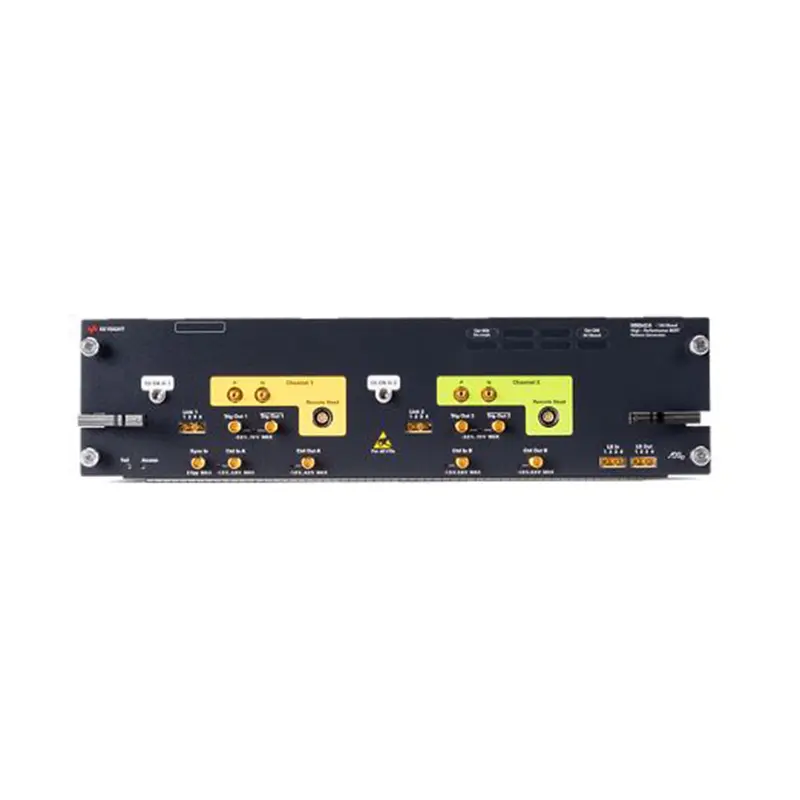

| Model | Physical dimensions (W x H x D) | Power requirements | Weight net | Weight shipping | Additional information |
|---|---|---|---|---|---|
| M8042A - 0G1 (1 channel version) | 351 mm x 61 mm x 315 mm | 300 W (nom.) | 6.1 kg | 9.6 kg | - |
| M8042A - 0G2 (2 channel version) | 351 mm x 92 mm x 315 mm | 600 W (nom.) | 8.5 kg | 12.0 kg | - |
| M8058A and M8059A (remote head without cables) | 157 mm x 90 mm x 44 mm | - | 1.0 kg |
One Head: 3.7 kg Two Heads: 4.7 kg |
Cable to M8042A: ~500 mm Head Length: 157 mm Cable to DUT: ~150 mm |
| M8058A and M8059A (remote head with cables) | ~810 mm x 90 mm x 44 mm | - | - | - | Cable details as above |
| M8068A and M8069A (remote head without cables) | 157 mm x 101 mm x 59 mm | - | 1.3 kg |
One Head: 4.0 kg Two Heads: 5.0 kg |
Cable to M8042A: ~500 mm Head Length: 157 mm Cable to DUT: ~150 mm |

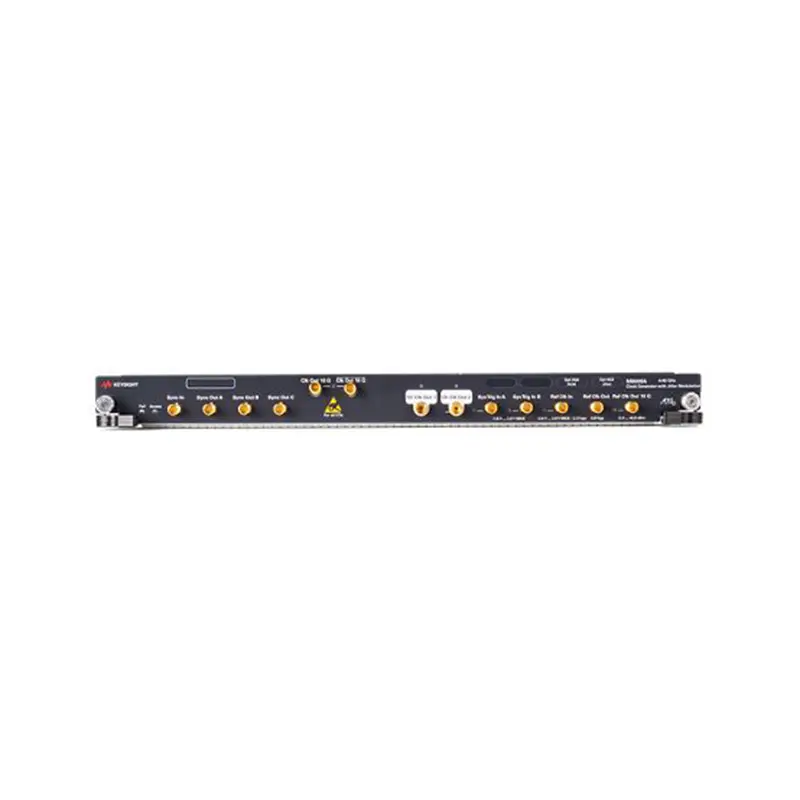

| M8068A and M8069A (remote head with cables) | ~810 mm x 101 mm x 59 mm | - | - | - | Cable details as above |
| M8009A | 351 mm x 30 mm x 315 mm | 200 W (nom.) | 3.9 kg (meas.) | 7.5 kg (meas.) | - |
| M8043A | 351 mm x 60 mm x 305 mm | 320 W (nom.) | 4.8 kg (meas.) | 9.8 kg (meas.) | Includes power for M8052A |
| M8052A (remote head without cables) | 160 mm x 85 mm x 45 mm | - | 1.0 kg | 3.5 kg including cables |
Cable to M8043A: ~500 mm Head Length: 160 mm Cable to DUT: ~150 mm |
| M8052A (remote head with cables) | ~810 mm x 85 mm x 45 mm | - | - | - | Cable details as above |

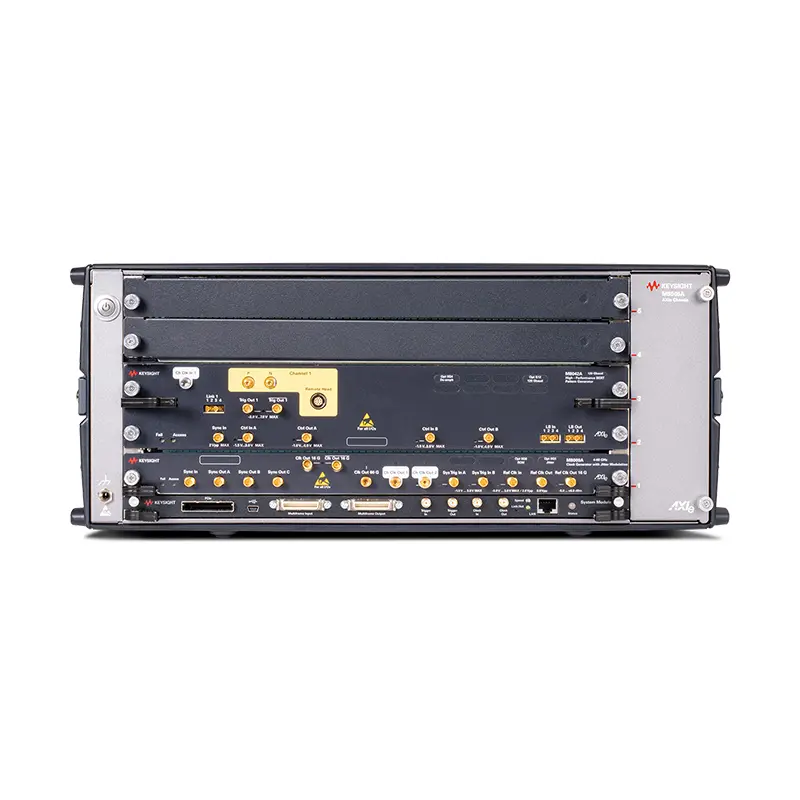

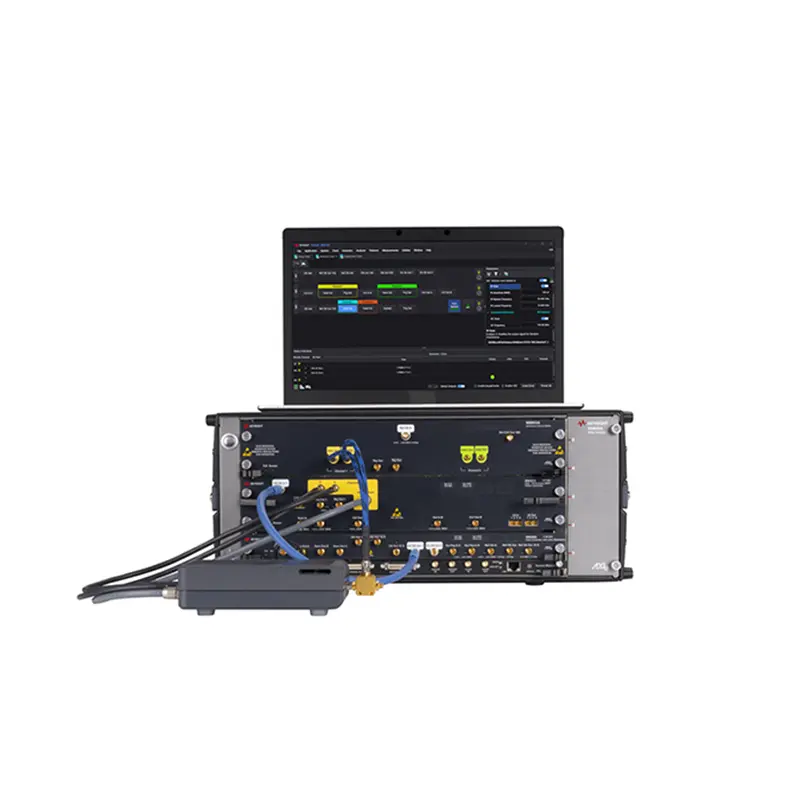

| M8050A - BU2, - BU3, - BU4, and - BU5 (with AXle chassis) |
M8050A - BU2 / - BU3: 462 mm x 193 mm x 485 mm M8050A - BU4 / - BU5: 462 mm x 384 mm x 485 mm |
- |
M8050A - BU2: 2.9 kg + 13.3 kg M8050A - BU3: 2.9 kg + 13.3 kg M8050A - BU4: 2.9 kg + 26.6 kg M8050A - BU5: 2.9 kg + 26.6 kg |
M8050A - BU2 / - BU3: 12.3 kg M8050A - BU4 / - BU5: 24.6 kg |
Depth includes semi-rigid cables |
