One-stop shop with fifteen integrated measurements
Measure low resistance and low current on low-power devices with high accuracy and high resolution. Utilize the integrated 16-bit digitizer to record fleeting impulses. To get as much test data as possible, view two measurements at once. There is no need for extra instruments with the DMM6500 6.5 digit multimeter.
Use the best touchscreen in the business to swiftly transform raw data into insights
In order to examine your data more quickly and do away with the need for extra measures, you can get immediate measurement insight by collecting transitory signals and viewing data patterns and statistics directly on the touchscreen.
Key Points
- Plots of waveforms are shown, along with overlays between them.
- Studying transients and signal waveshapes is made possible by pinch and zoom functionalities.
- Waveforms are characterized using computer statistics and user cursors.
Cloud-based real-time monitoring and data visualization
You can now create real-time IoT dashboards and data visualizations that are available from anywhere by streaming data from your DMM6500.
Key Points
- Without the need for a PC in the middle, you may monitor and record data streams straight from the DMM6500 in real time and from any location.
- Utilize triggers based on measurement thresholds and other mathematical principles to receive email and text alerts.
- Data may be accessed, visualized, archived, shared, transformed, and analyzed from any location without the need for installation.
- Make dashboards that are readable, repeatable, and standardized.
- Compare, overlay, and time-dilate data sets between test runs.

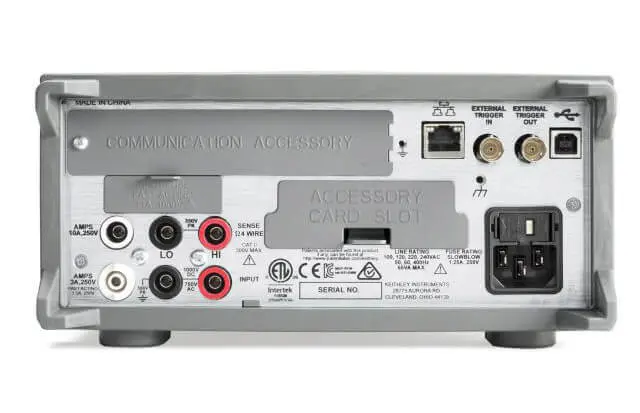

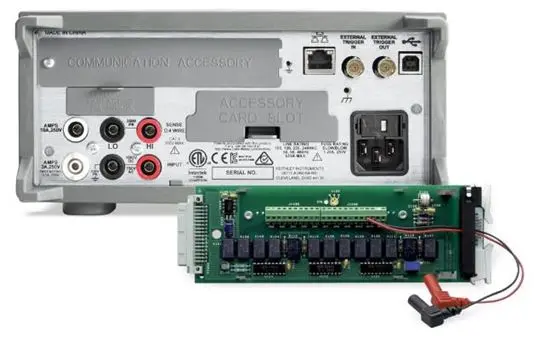

Graphical Touchscreen Multimeter with 6.5 Digits
DMM6500_Datasheet_050924.pdf
Document Download
Frequently Asked Questions (FAQ)
What measurement capabilities does the DMM6500 offer?
The DMM6500 is a 6.5 digit multimeter equipped with fifteen integrated measurement functions. It can measure low resistance and low current on low-power devices with high accuracy and resolution, eliminating the need for extra instruments.
How does the touchscreen interface benefit users?
The capacitive touchscreen allows users to swiftly transform raw data into insights. It can capture transitory signals and display waveform plots, statistics, overlays, pinch-to-zoom functions, and cursor metrics directly on the screen without needing a PC.
Can I monitor the DMM6500 measurements remotely?
Yes. The DMM6500 supports cloud-based real-time monitoring. You can stream measurement data directly to construct IoT dashboards, configure mathematical or threshold-based alerts (via text or email), and compare datasets from any location.
What are the specifications of the built-in digitizer?
The DMM6500 features an integrated 16-bit digitizer that supports a sampling rate of up to 1 M sample/s, which is ideal for studying transients and recording fleeting signal waveshapes.
What are the physical dimensions and weight of the instrument?
The instrument measures 224.0 mm (W) x 107.2 mm (H) x 387.4 mm (D) in bench configuration and has a shipping weight of 4.54 kg (10.0 lb) for the instrument only.
