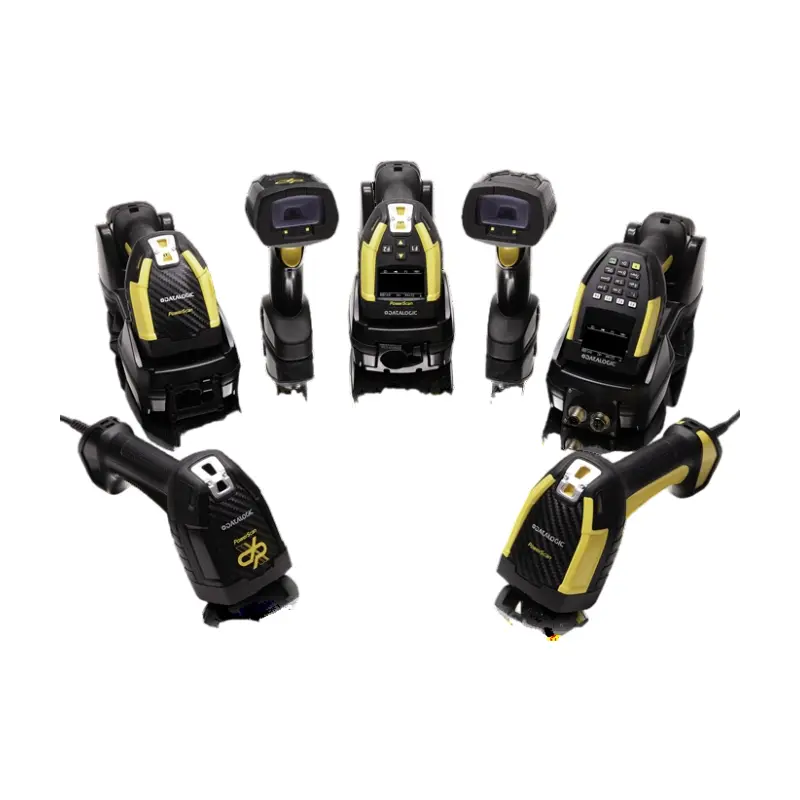

Wholesale Datalogic Industrial PowerScan 9600 Series Manufacturers, Exporters

The Datalogic Industrial PowerScan 9600 Series is a line of high-performance industrial-grade handheld scanners characterized by rugged durability, powerful functionality, and flexible communication options. Below is a detailed overview:

Product Features

Rugged Durability

With IP65 and IP67 protection ratings, it withstands drops from 2.5 meters onto concrete. The scan trigger is tested for 10 million actuations, unaffected by dust or water, ensuring reliable operation in harsh industrial environments.

Superior Performance

Scanning speed exceeds competitors by 20%. Reads UHF RFID tags alongside 1D/2D barcodes. Select models also capture OCR text and color images. RFID engine reads/writes tags from over 1 meter away and supports multiple tag formats.

Flexible Wireless Communication

Utilizes Datalogic's proprietary Star Radio narrowband wireless system for extended range and fully bidirectional communication. A single cradle supports up to 16 devices. Bluetooth versions are also available.

User-Friendly Operation

Optional displays and keyboards provide audible beeps and green light feedback. Smart battery technology enhances charging efficiency and eliminates charging issues caused by dirty contacts through wireless charging.

Versatile Connectivity

Featuring a plug-and-play architecture, it easily configures between RS-232, USB, USB-C, Ethernet, Ethernet I/P, or Profinet. The communication module on the cradle is interchangeable.

Series Models

Auto Focus (AR) Series: Includes the wired desktop version PD9600 AR, the wireless version PM9600AR equipped with Datalogic Star 433 MHz Cordless System 2.0 proprietary radio, and the wireless Bluetooth 5.0 version PBT9600 AR with full keyboard/display options.

DPX Series: Primarily designed for traceability applications in automotive, aerospace, tire, and electronics industries, also suitable for healthcare. Models include the wired desktop PD9600 DPX, the wireless PM9600-DDPX featuring Datalogic Star 433 MHz Cordless System 2.0 proprietary radio, and the Bluetooth 5.0 wireless PBT9600 DPX with full keyboard/display option.

RFID Series: The industry's first scanner integrating high-performance barcode reading and UHF RFID technology into a rugged wireless device. Options include standard-range models and document capture models, with the latter adding dual-camera imaging, a display, and keyboard for advanced data collection.

Applications

This scanner series serves multiple industries including retail, transportation and logistics, manufacturing, and healthcare.

Retail: Prevents barcode switching, accurately manages returns, improves inventory, and speeds up checkout.
Transportation and Logistics: Enables precise cargo tracking, captures proof of status, and streamlines warehouse processes.
Manufacturing: Monitors work-in-progress, ensures component traceability, and maintains quality in harsh environments.
Healthcare: Manages medical inventory, verifies patients and samples, and tracks surgical instruments.

Specifications

Parameter	Description
General Specifications
Model Types	Auto Range (AR) series: PD9600 AR (wired desktop), PM9600AR (wireless with Star 433 MHz Cordless System 2.0), PBT9600 AR (wireless Bluetooth 5.0 with full keypad/display option) DPX series: PD9600 DPX (wired desktop), PM9600 - DDPX (wireless with Star 433 MHz Cordless System 2.0), PBT9600 DPX (wireless Bluetooth 5.0 with full keypad/display option) RFID series: PBT9600 - DKDCRFEU, PBT9600 - DKDCRK10EU, PBT9600 - DKDCRFUS, etc.
Protection Level	IP65 and IP67
Drop Resistance	Can withstand drops from a height of 2.5 meters onto concrete
Trigger Life	Tested to withstand 10 million trigger operations
Scanning Performance
Scanning Technology	For barcode: One-dimensional and two-dimensional barcode scanning; for RFID: UHF RFID technology
Reading Rate	20% faster than competing products
Reading Distance	RFID engine can read and write tags from more than 1 meter away; barcode reading distance varies by model and type
Image Capture	Some models support color image capture for quality control or signature verification
Communication Specifications
Wireless Technology	Star Radio (proprietary narrow-band wireless communication system), Bluetooth 5.0
Wired Interface	RS-232, USB, USB-C, Ethernet, Ethernet I/P, Profinet
Number of Connected Devices	One cradle can connect up to 16 devices with Star Radio, while Bluetooth can connect up to 7 devices
Power Specifications
Power Supply	Wireless charging through the cradle; smart battery technology to optimize charging efficiency
Battery Type	Removable battery (for some models)
Physical Characteristics
Dimensions and Weight	Not explicitly given in the available information, but generally designed to be handheld and portable
Display and Keypad	Optional display and keypad; some models are equipped with an OLED display and a 16-key keypad

Models

Models: Datalogic Industrial PowerScan 9600 Series

Delivery Information

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals & Resources

Datalogic Industrial PowerScan 9600 Series datasheet.pdf

Download

Frequently Asked Questions

What is the rugged protection rating of the PowerScan 9600 Series?

The series features IP65 and IP67 protection ratings, meaning it is highly resistant to dust and water. It is built to withstand drops from up to 2.5 meters onto concrete, and its scan trigger has been tested for up to 10 million actuations.

Does the PowerScan 9600 Series support RFID technology?

Yes, the RFID Series integrates both high-performance 1D/2D barcode scanning and UHF RFID technology. The RFID engine can read and write tags from a distance of more than 1 meter.

What are the wireless communication systems utilized?

It utilizes Datalogic's proprietary Star Radio narrowband system for robust, bidirectional communication with extended range. Alternatively, Bluetooth 5.0 versions are available for easy integration with standard Bluetooth host devices.

How many devices can connect to a single wireless cradle?

With the proprietary Star Radio narrowband wireless system, a single cradle can support connection for up to 16 devices simultaneously, which helps optimize hardware deployment.

What are the benefits of the wireless charging system?

The smart battery wireless charging system eliminates physical charging contacts on both the scanner and cradle. This solves common failure points caused by dirty, bent, or damaged contact pins, ensuring consistent power replenishment and longer battery lifetime.
