Wholesale Datalogic Laser Marking Systems AREX400 Supplier, Suppliers

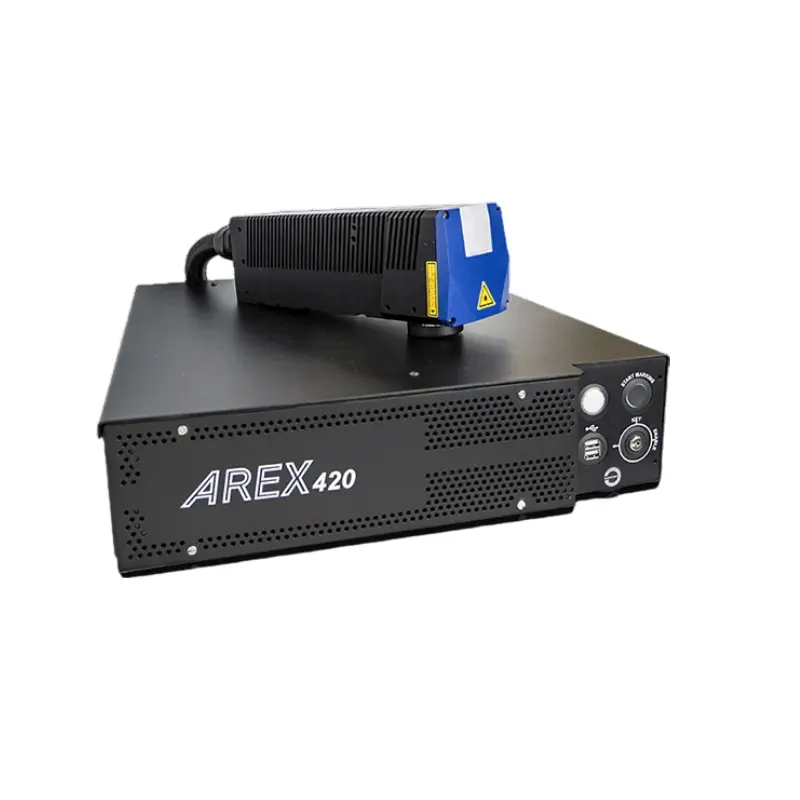

Datalogic Laser Marking Systems AREX400 is a series of high-performance laser marking machines based on fiber laser technology, primarily designed for industrial direct part marking (DPM) applications.

Send Inquiry

Product Description

Product Features

Compact & Durable

The scanning head is machined from solid aluminum, featuring an ultra-compact size and robust construction. With an IP64 rating, it offers protection against dust, lubricants, and oil droplets, making it suitable for harsh environments.

Superior Performance

Models like the AREX 401 deliver average power up to 100W, excelling in marking speed and engraving depth. This ensures reliable traceability on components subjected to high stress and wear.

Multiple Configurations

Available in various configurations and power levels, supported by the innovative Lighter Marvis software suite, ensuring optimal results in nearly all applications.

Seamless Communication

Features built-in cost-effective communication protocols like TCP/IP, Ethernet IP, and Profinet for easy integration and connectivity.

User-Friendly Operation

The next-generation Embedded Marking Controller (EMC), powered by up to a quad-core 1.83 GHz processor and the latest Lighter Suite, enables remote installation, setup, control, and system diagnostics.

Safety and Reliability

Features embedded Safety Laser Off (SLO) functionality and employs a low-noise air cooling system, operating at noise levels as low as 65 dB.

Applications: Suitable for industrial environments including automotive, tools and precision machinery, industrial electronics, household products, surgical and medical equipment, enabling traceability, personalization, and branding of components.

Specifications

Parameter	Description
Laser Type	Pulsed fiber (1 in model number), Fiber MOPA (a in model number)
Power Options	10W, 20W, 30W, 50W, 100W (AREX 401)
Wavelength	1.06 µm - 1.07 µm
Max. Pulse Rate	100kHz
Max. Pulse Energy	1.1 J
Pulse Length	100ns
Beam Diameter	8mm
Q - Switchable	Yes
Marking Range	100 × 100 mm (typical)
Marking Speed	≤ 7000 mm/s
Head Dimensions/Weight	89 mm x 96 mm x 311 mm – 3 kg
Controller Dimensions	427 mm x 111 mm x 435 mm – 16 kg
Protection Level	IP64
Operating Temperature	0 - 40°C
Embedded Controller	Quad core Celeron processor, 4 GB RAM, 16 + 16 GB flash disks
Communication Protocols	TCP/IP, Ethernet IP, Profinet
I/O Interface	2 I/O interface ports, encoder port, photocell port, 2 device ports
Ethernet Ports	3 RJ45 Ethernet ports
USB Ports	4 USB ports
Safety Features	Embedded Safe Laser Off (SLO) with failsafe circuit, double safety relays, and redundant feedback
Cooling System	Low noise air cooling

Models

Standard Configured Models: Datalogic Laser Marking Systems AREX400 series.

Delivery Information

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals + Resources

Datalogic Laser Marking Systems AREX400 datasheet.pdf

Download Document

Frequently Asked Questions

What are the primary applications for Datalogic AREX400?

The AREX400 series is designed for industrial direct part marking (DPM) across sectors like automotive, precision machinery, industrial electronics, surgical equipment, and household products.

What level of environmental protection does the marking head offer?

The scanning head features an IP64 protection rating, offering dust-tight defense and protection against lubricants and oil droplets in harsh industrial environments.

What laser power options are available in this series?

The system is available in multiple configurations with power options of 10W, 20W, 30W, 50W, and up to 100W for the high-performance AREX 401 model.

Which communication protocols are integrated into the system?

The AREX400 features built-in communication protocols including TCP/IP, Ethernet IP, and Profinet, making integration with factory automation systems seamless and cost-effective.

What safety mechanisms are built into the AREX400?

It comes with an embedded Safety Laser Off (SLO) functionality featuring a failsafe circuit, double safety relays, and redundant feedback systems to ensure high operating reliability.

How is the controller set up and managed?

The system features an Embedded Marking Controller (EMC) running the Lighter Suite, which allows remote installation, configuration, diagnostics, and system setup over a standard Ethernet TCP/IP connection.
