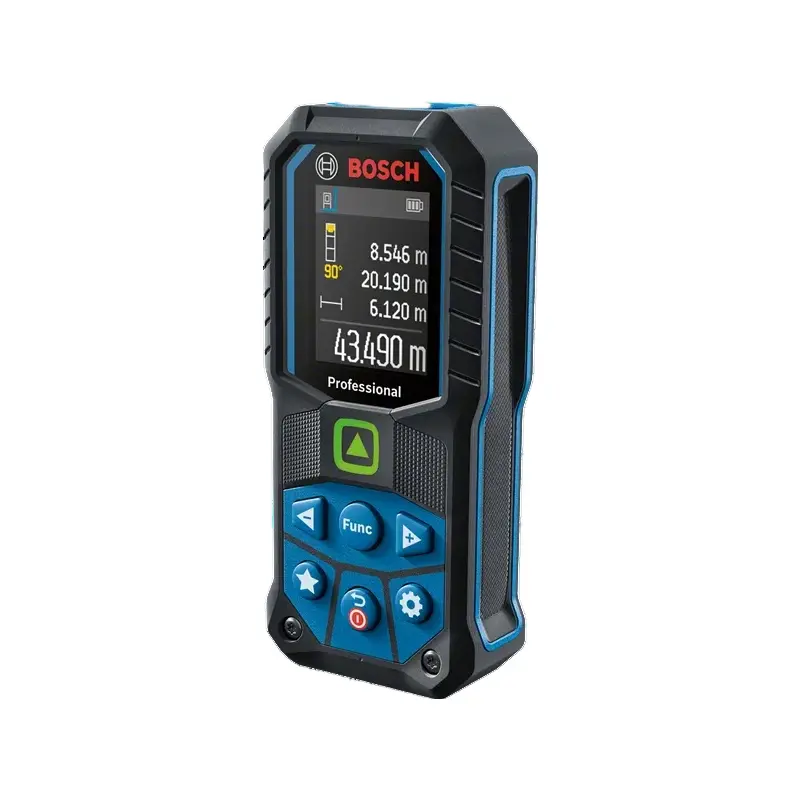

Wholesale Bosch GLM 50-23 G Professional Laser rangefinder Supplier, Product
1 / 1
Wholesale Bosch GLM 50-23 G Professional Laser rangefinder Supplier, Product

Wholesale Bosch GLM 50-23 G Professional Laser rangefinder Supplier, Product

The Bosch GLM 50-23 G Professional Laser Measure features a built-in 360° tilt sensor, enabling effortless angle and inclination measurements to enhance the practicality of its laser distance measurement capabilities. Its intuitive user interface includes dedicated function keys, a color display, and help features for straightforward operation. With IP65 protection and a shock-absorbing rubber housing, this device withstands demanding jobsite conditions, making it an ideal choice for complex applications.

Send Inquiry

Product Description

Bosch GLM 50-23 G Professional is a high-precision, durable laser rangefinder designed for professional scenarios such as construction, interior design, and maintenance. It integrates accurate distance measurement with versatile auxiliary functions, making it suitable for both on-site rough operations and fine dimension verification. Below is a detailed breakdown of its core attributes:
1. Core Features
  • Versatile Measurement Functions
    • 360° Tilt Sensor: Built-in high-sensitivity tilt sensor, supports real-time angle/inclination measurement (range: 0° – 360°) with accuracy ± 0.1°. It is especially useful for scenarios like checking floor levelness, wall plumbness, or calculating slope angles of roofs, eliminating the need for additional protractors.
    • Multiple Measurement Modes:
      • Single measurement: Quick one-click distance reading (e.g., measuring room length/width).
      • Continuous measurement: Tracks real-time distance changes (e.g., aligning materials during installation).
      • Indirect measurement: Uses 2-point or 3-point Pythagorean theorem to calculate inaccessible distances (e.g., height of high ceilings, diagonal of large furniture).
      • Area/volume calculation: Automatically computes area (length × width) or volume (length × width × height) after inputting multiple dimensions, saving manual calculation time.
  • User-Friendly Operation Design
    • Intuitive Interface: Equipped with a "favourite button" that allows users to save frequently used modes (e.g., area calculation) for one-click activation, avoiding repeated menu navigation. The built-in "help function" provides on-screen operation prompts, lowering the learning threshold for new users.
    • Backlit Color Display: The color screen clearly distinguishes measurement results, modes, and status indicators (e.g., low battery, laser activation), and the adjustable backlight ensures readability even in direct sunlight (common on construction sites) or dimly lit spaces (e.g., under stairwells).
    • One-Handed Operation: The ergonomic curved grip and compact size enable comfortable one-handed use—users can hold the device and record data with a notebook simultaneously, improving on-site efficiency.
  • Durability for Harsh Environments
    • Shock-Absorbing Rubber Casing: The outer shell is wrapped with thickened non-slip rubber, which can absorb impact from accidental drops (tested to withstand drops from 1.2 m onto concrete) and prevent slipping when hands are sweaty or greasy.
    • IP65 Protection: Fully dustproof design prevents fine particles (e.g., concrete dust, wood chips) from entering the internal components; water-resistant performance allows normal use in light rain or when cleaning the device with a damp cloth, extending its service life in harsh job sites.
2. Application Scenarios
Ideal for professional users (architects, decorators, carpenters, property maintenance personnel) in scenarios such as:
  • Interior Decoration: Measuring room dimensions for flooring/carpet cutting, calculating wall area for paint purchase, or verifying the levelness of installed cabinets.
  • Construction Sites: Checking the plumbness of concrete walls, measuring the distance between steel bars, or calculating the slope of scaffolding.
  • Facility Maintenance: Measuring the height of equipment for replacement part selection, or verifying the spacing of pipeline supports.
3. Optional Accessories (Commonly Used)
  • Bosch Professional AAA high-performance batteries (long-lasting, suitable for frequent on-site use).
  • Protective carrying case (prevents scratches during transportation and storage).
Technical Specifications
Additional data
Tripod thread 1/4"
Measurement time, typical 0.5 s
Units of measurement m/cm, ft/inch
Laser diode 515 nm, < 1 mw
Measurement range 0.05-50.00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mm
Measurement range of incline measurement 0-360° (4x90°)
Measuring accuracy (typical) ± 0.2°
Measurement time, max. 4 s
Power supply 2 x 1.5 V LR6 (AA)
Automatic deactivation 5 min
Weight, approx. 0.2 kg
Memory capacity (values) 30
Dust and splash protection IP 65
Laser colour Green
Measuring range, up to 50 m
Available Models
Model Name: Bosch GLM 50-23 G Professional Laser rangefinder
Delivery Information
  • Dimension: 53*29*119mm
  • Weight: 120g
  • Battery parameters: Equipped with 2 AAA batteries
  • Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
Manuals & Resources
Bosch GLM 50-23 G Professional Laser rangefinder datasheet

Bosch GLM 50-23 G Professional Laser rangefinder datasheet.pdf

Download
Frequently Asked Questions
Q1: What is the measurement range and accuracy of the Bosch GLM 50-23 G?
A1: It has a measurement range of 0.05 to 50.00 meters with a typical measurement accuracy of ± 1.5 mm. It utilizes a highly visible green laser diode for enhanced accuracy and visibility.
Q2: Does this model support angle and tilt measurements?
A2: Yes, the device features a built-in 360° tilt sensor that supports real-time angle and inclination measurements (ranging from 0° to 360°) with a typical accuracy of ± 0.2°.
Q3: How durable is the Bosch GLM 50-23 G on rough construction sites?
A3: The rangefinder is built for harsh environments, featuring IP65 dust and splash protection and a shock-absorbing rubber casing that is drop-test certified up to 1.2 meters on concrete.
Q4: What power source does the laser rangefinder require?
A4: The rangefinder is powered by 2 x 1.5 V LR6 (AA) batteries. It also features an automatic deactivation function that shuts the device off after 5 minutes of inactivity to conserve battery life.
Q5: Can the device save previous measurement results?
A5: Yes, the Bosch GLM 50-23 G has a built-in memory capacity that can automatically store up to 30 measurement values for quick recall.
Q6: What units of measurement are supported?
A6: You can easily switch between metric and imperial units, including meters (m), centimeters (cm), feet (ft), and inches.
