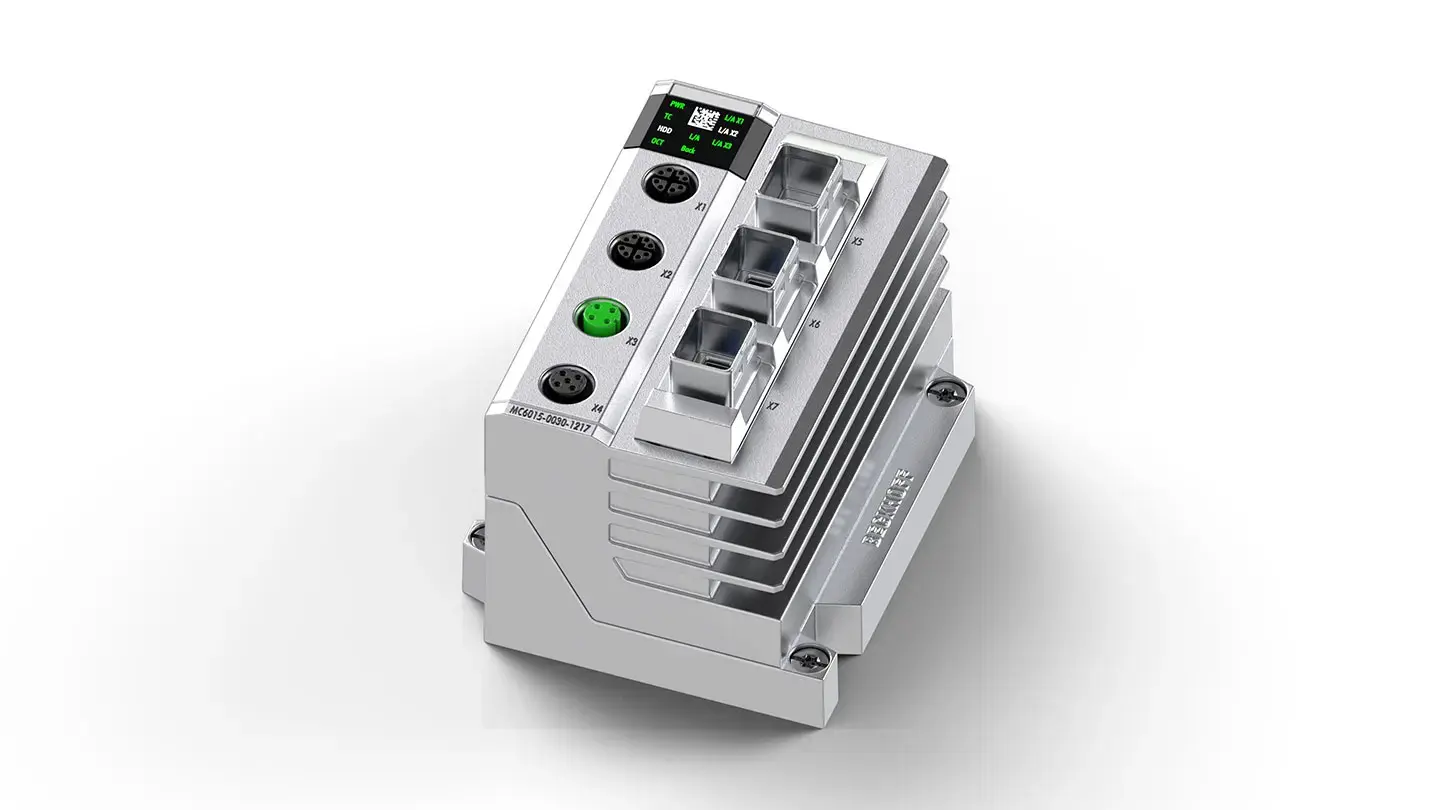

Wholesale BeckHoff MC6015-0030-1217 IPC module Industrial PC Suppliers, Product

The MC6015-0030-1217 IPC module enables the integration of industrial PCs into MX systems. The full integration and interoperability of TwinCAT and EtherCAT form the foundation for this. This interoperability between TwinCAT and EtherCAT underpins the objective. The module can be used in the first slot of any size backplane.

Send Inquiry

Product Description

Overview

Processor

Utilises the Intel Atom® X6xxx RE processor, based on Intel's 10nm SuperFin technology, featuring up to 4 CPU cores with a base frequency of up to 1.9GHz. This delivers enhanced CPU performance within a low-power range, with a maximum power consumption of 12W.

Memory

Equipped with 8GB DDR4 memory, expandable to 64GB DDR4 memory configuration options.

Storage

Features one M.2 SSD slot dedicated for installing highly reliable solid-state storage devices.

Interfaces

Includes two M12, 8-pin, X-coded Ethernet interfaces with robust data transfer rates supporting 10/100/1000Mbit/s.

Application Scenarios

The MC6015-0030-1217 forms part of the MX system, functioning as an EtherCAT master. It is ideally suited for industrial automation, the Internet of Things (IoT), and other harsh environments, meeting the demands of diverse industrial applications.

Specifications

Technical data	MC6015-0030-1217	Options
Product category	IPC modules	-
Category/version	Intel Atom®	-
Processor	Selection from the processor option list at an additional cost	Up to Intel Atom® x6416RE, 1.7 GHz, 4 cores (TC3: 50)
Slots for hard disk/flash	1 slot for M.2 SSD	-
Operating system	Selection from the option list at an additional cost	-
Memory	Selection from the CPU/DRAM option list at an additional cost	Up to 8 GB DDR4 RAM ex factory
Hard disks/flash	Selection from the SSD option list at an additional cost	Up to 320 GB M.2 SSD
Interfaces	2 x Ethernet 10/100/1000 Mbit/s (M12) 1 x EtherCAT OUT (M12) 1 x UPS IN (M12) 1 x mini DisplayPort (push-pull) 2 x USB 3.1 Gen. 2 (push-pull)	-
Housing data	R1S2T2	-
Baseplate interface	Data connector	-
Number of data slots	1	-
Operating temperature	0 to 50°C	-
Storage temperature	-25 to +60°C	-
Protection rating	IP65/67	-
Approvals/markings	CE, UL (in preparation)	-

Models

Model Variation: MC6015-0030-1217 | IPC module, Industrial PC, Intel Atom® x6, M12, push-pull

Delivery Information

The delivery cycle of industrial products is influenced by various factors, such as the inventory status of the products, the scale of the order quantity, the region where the customers are located, and the choice of transportation methods.

Manuals + Resources

MC6015-0030-1217 IPC module Industrial PC datasheet.pdf

Document Sheet

Frequently Asked Questions

What processor powers the MC6015-0030-1217?

The module is powered by an Intel Atom® X6xxx RE processor, engineered with Intel's 10nm SuperFin technology. It offers up to 4 CPU cores, a base frequency of up to 1.9GHz, and runs within a low-power envelope with a maximum consumption of 12W.

What are the default and maximum memory capacities?

It features 8GB DDR4 RAM as standard, which is expandable to a maximum configuration of up to 64GB DDR4 memory.

How is storage handled on this industrial PC module?

The device contains one M.2 SSD slot, allowing for customizable storage drive configurations, supporting options up to 320 GB M.2 SSD.

What type of network interfaces does the module provide?

The hardware features two M12, 8-pin, X-coded Ethernet interfaces supporting high-speed transmission rates of 10/100/1000Mbit/s, along with an EtherCAT OUT (M12) connection.

What are the environmental and protection limits?

The unit boasts an IP65/67 protection rating. It is designed to operate in temperatures ranging from 0°C to 50°C and can withstand storage conditions from -25°C to +60°C.

What applications are best suited for this hardware?

It is designed to act as an EtherCAT master within control architectures, making it highly suitable for industrial automation, IoT infrastructures, and specialized hardware control environments.
