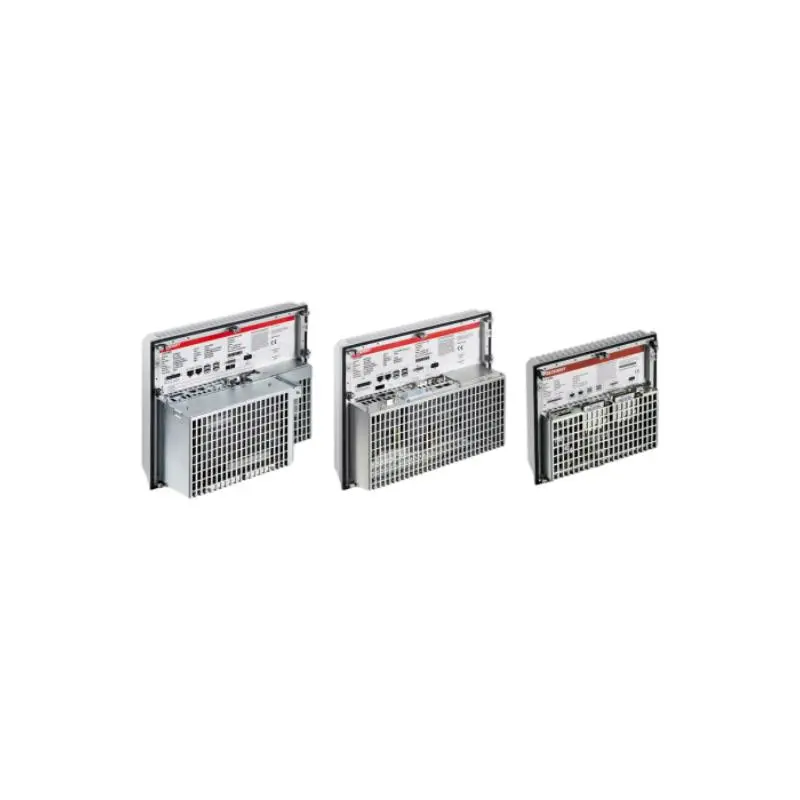

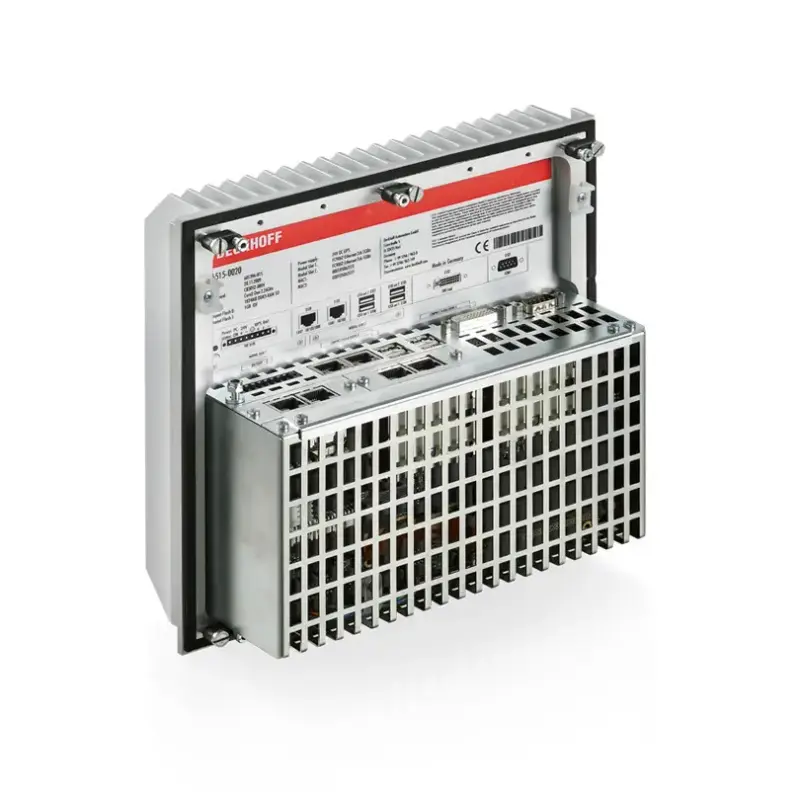

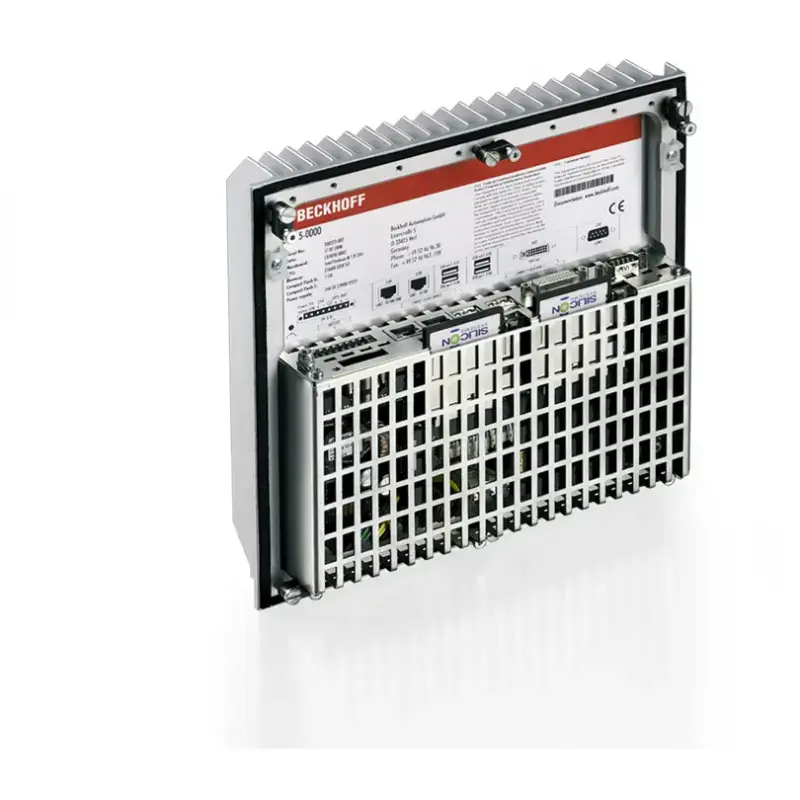

The Beckhoff C6515 is a fanless embedded industrial computer engineered for optimal space utilization and reliability in demanding control system environments.
| Technical data | C6515-0080 Standard | Options |
|---|---|---|

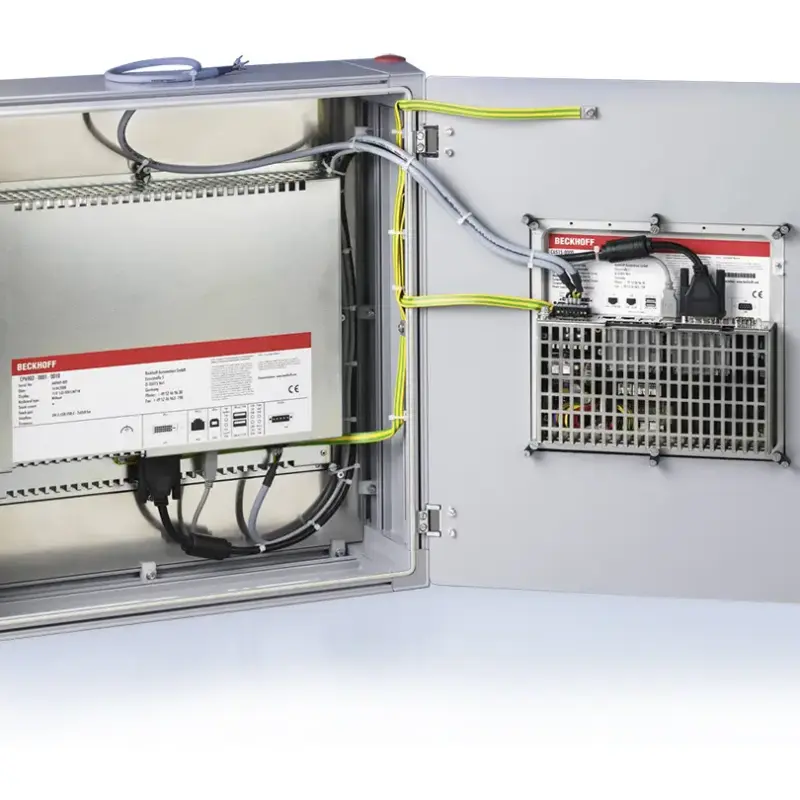

| Device type | Fanless built-in Industrial PC with external cooling to be mounted in the back panel of a control housing or in the wall of a control cabinet | – |
| Slots for hard disk/flash | 2 slots for CFast | – |
| Cooling | passive through heat sink structure outside | – |
| Free space for air circulation | 20 cm (7.9") around the heat sink required | – |
| Protection rating | outside IP65, inside IP20 | – |
| Operating temperature | outside 0 to 45°C, inside 0 to 55°C | – |
| Weight of basic configuration | 3 kg (6.6 lbs) | – |
| Dimensions (W x H x D) | 240 x 230 x 81 mm (9.5" x 9.1" x 3.2") | with PCIe module slots 107 mm (4.2") depth |
| Processor | Intel® Celeron® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50) | up to Intel® Core™ i7-11850HE 2.6 GHz, 8 cores (TC3: 80) |
| Motherboard | 3.5-inch motherboard for 11th generation Intel® Celeron®, Core™ i3/i5/i7 | – |
| PCIe®/PCI™ slots | – | 2 PCIe® module slots |
| Memory | 4 GB DDR4 RAM | – |
| Graphic | integrated in the processor | – |
| Ethernet | 1 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board | – |
| RAID | on-board SATA RAID 1 controller | – |
| Hard disks/flash | 40 GB CFast card | up to 320 GB CFast card |
| Interfaces | 4 x USB 3.2 Gen. 2, 1 x RS232, 1 x DVI | – |
| Power supply | 24 V DC | UPS |
| Operating system | – | Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2022, TwinCAT/BSD |
The delivery cycle of industrial products is influenced by various factors, such as the inventory status of the products, the scale of the order quantity, the region where the customers are located, and the choice of transportation methods.
