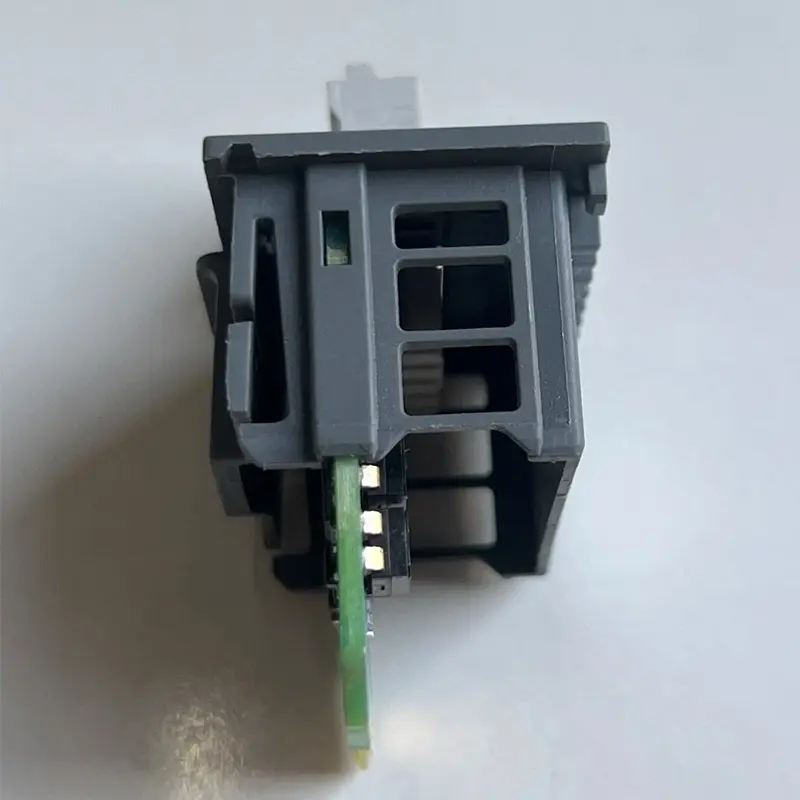

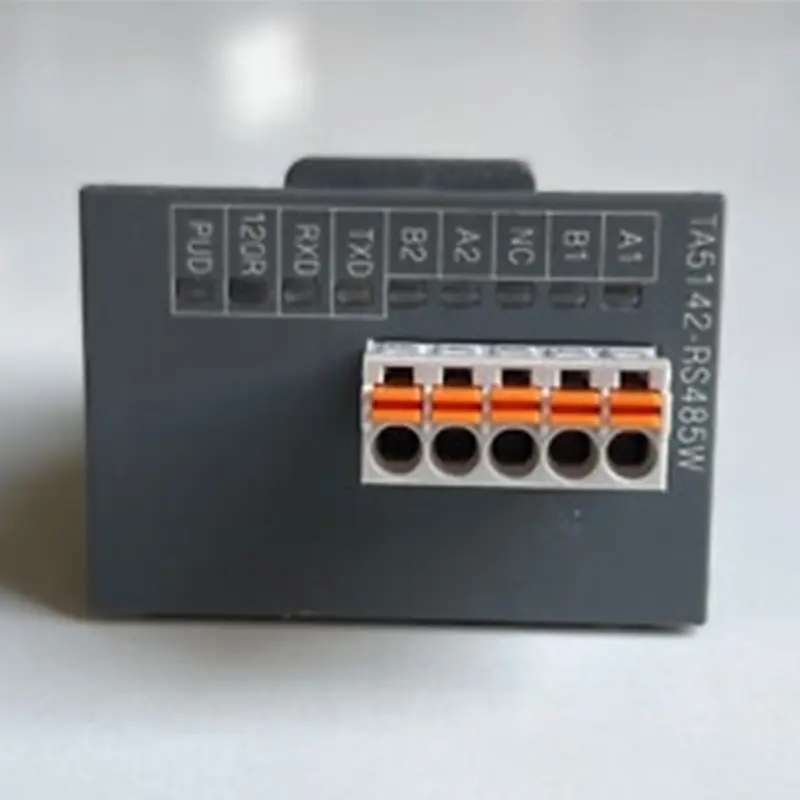

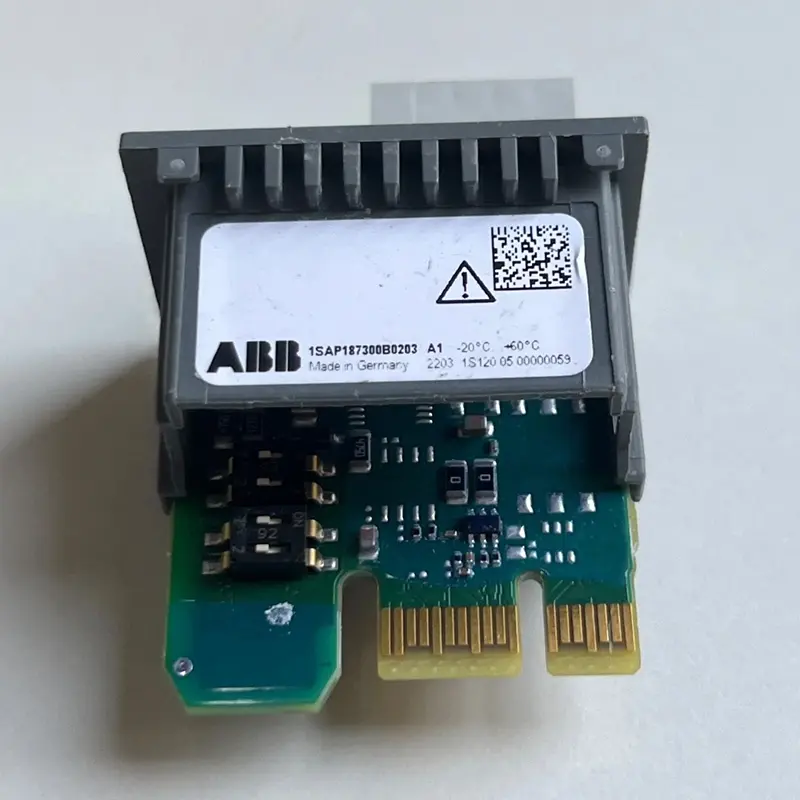

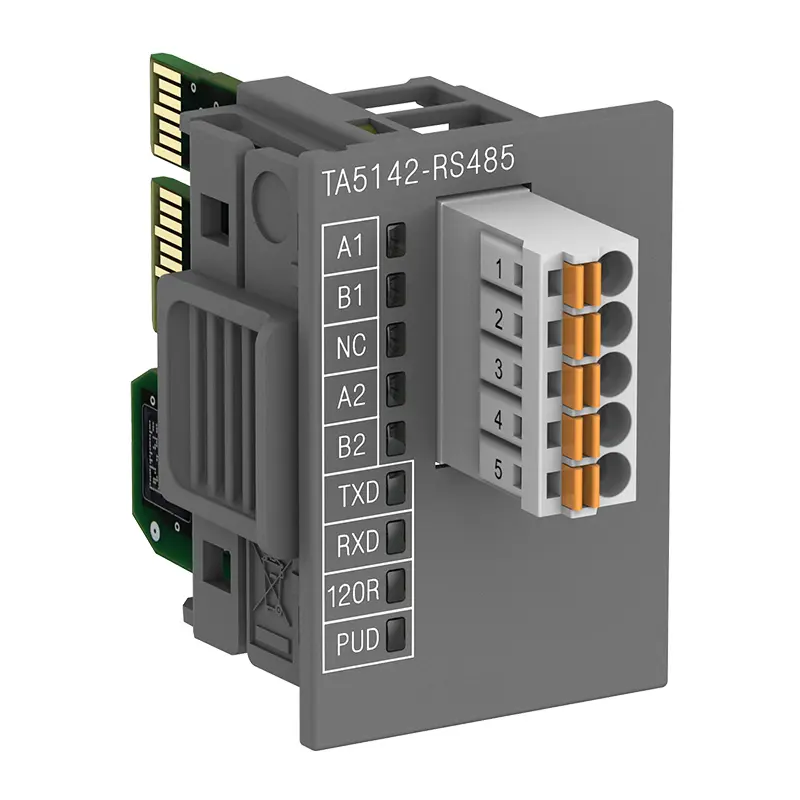

The TA5142-RS485W is a serial adapter option board featuring an RS-485 serial port (half-duplex, two-wire) for communication via Modbus RTU or CAA Serial Com.
Incorporates two LEDs (TXD and RXD) for communication status and two LEDs for terminal status. Bus termination is integrated and configurable. Features a W variant for extended temperature operation.
Only compatible with TA5141-RS232I(W), TA5142-RS485I(W), and TA5142-RS485(W) manufactured in 2023. Requires system firmware 3.5.0_hf-7 or higher, and boot firmware 3.5.1 or higher.
| General Information | |
| Extended Product Type | TA5142-RS485 |
| Product ID | 1SAP187300R0003 |
| Type Designation | TA5142-RS485 |
| EAN | 4013614551840 |
| Catalog Description | Serial adapter option board. RS485 non isolated. Spring terminals included (TA5142-RS485) |
| Long Description | TA5142-RS485:AC500-eCo Serial adapter option board. RS485 non isolated. Spring terminals included. |
| Ordering | |
| CN8 | 85389091 |
| Invoice Description | Serial adapter option board. RS485 non isolated. Spring terminals included (TA5142-RS485) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 3ADR980147 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | 61c19a9c-9995-42e0-96cb-f0d54436a3d1 Germany |
| RoHS Date | 2021 |
| RoHS Declaration | 3ADR980147 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Technical | |
| Function | RS485 non isolated. Spring terminals included |
| Degree of Protection | IP20 |
| Accessory Type | Electrical:Other |
| Product Main Type | TA5142 |
| Product Name | Distributed Automation PLCs |
| External Classifications and Standards | |
| eClass | 27-24-22-92 |
| ETIM 8 | EC002584 - Accessories/spare parts for controls |
| ETIM 9 | EC002584 - Accessories/spare parts for controls |
| ETIM 10 | EC002584 - Accessories/spare parts for controls |
| UNSPSC | 32151705 |
| Environmental | |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
TA5142-RS485: AC500-eCo Serial adapter option board. RS485 non isolated. Spring terminals included.
| Dimensions | |
| Product Net Weight | 0.015 kg |
| Product Net Depth / Length | 54.2 mm |
| Product Net Height | 42 mm |
| Product Net Width | 28.5 mm |
| Gross Weight | 0.033 kg |
| Package Levels | |
| Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Width | 40 mm |
| Package Level 1 Units | 1 carton |
The TA5142-RS485W is a serial adapter option board featuring an RS-485 serial port (half-duplex, two-wire) designed for communication via Modbus RTU or CAA Serial Com.
It incorporates two LEDs (TXD and RXD) for indicating communication status, alongside two LEDs for displaying terminal status.
Yes, the bus termination is integrated and configurable to meet different installation requirements.
It is only compatible with the TA5141-RS232I(W), TA5142-RS485I(W), and TA5142-RS485(W) manufactured in 2023. System firmware must be version 3.5.0_hf-7 or higher, and boot firmware must be version 3.5.1 or higher.
The "W" variant signifies that the option board is designed for operation in extended (wide) temperature ranges.
The device features an IP20 degree of protection and includes non-isolated RS485 connection with spring terminals.
