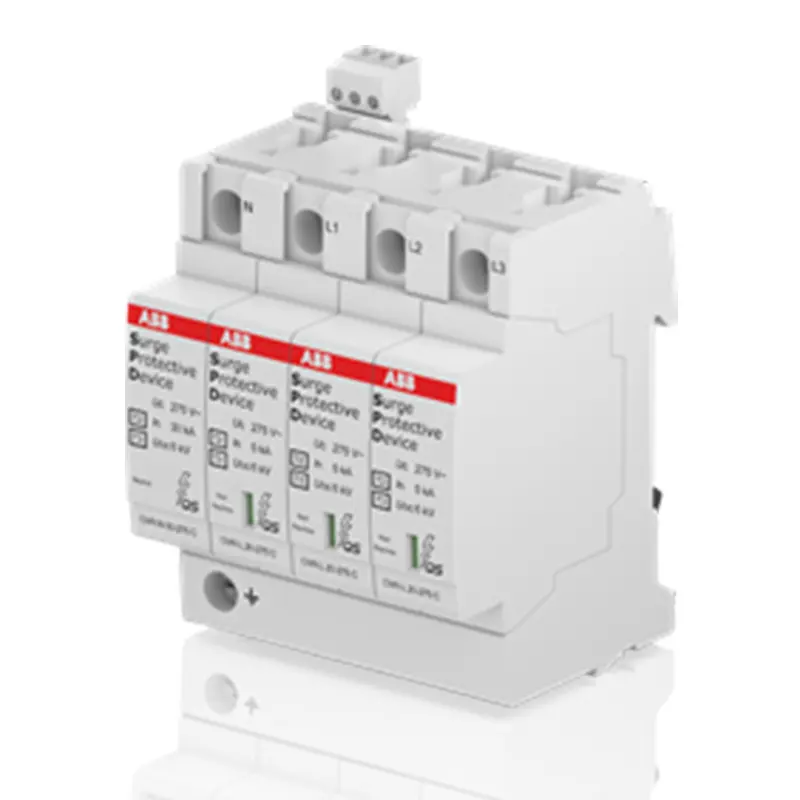

Model OVR SC N3 40-385 P TS QS, Order Number 10231762, Country of Origin: China.
Classified as a Type 2 surge arrester, designed to protect electrical installations and sensitive equipment from indirect surges, ensuring a low level of protection.
This surge arrester dissipates surges induced by lightning strikes or switching operations, limiting voltage peaks at terminal equipment to acceptable levels thereby extending device lifespan. It accommodates diverse applications across TT, TNC, TNS, IT and other grid types, incorporating end-of-life indicators and safety reserve systems.
Maximum surge current capacity of 40kA, with backup protection via 160A fuses or 125A miniature circuit breakers.
| ABB EcoSolutions | |
| Environmental Product Declaration - EPD | EPD declaration of OVR T1-T2 QS and OVR T2 QS |
| Technical | |
| Number of Batteries | 0 |
| Material Compliance | |
| RoHS Declaration | 9AKK108467A4099 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20221014 |
| REACH Declaration | 9AKK108467A4098 |
| Conflict Minerals Reporting Template (CMRT) | Conflict Minerals Reporting Template |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Product Net Width | 0.0712 m |
| Product Net Height | 0.0956 m |
| Product Net Depth / Length | 0.0653 m |
| Product Net Weight | 0.402 kg |
| Engineering | |
| EPLAN Data | 9AAC183885_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.434 kg |
| Extended Product Type | OVR SC N3 40-385 P TS QS |
| Product ID | 2TAM223100R4601 |
| EAN | 6941195400128 |
| Catalog Description | OVR SC N3 40-385 P TS QS SPD |
| Long Description | OVR SC N3 40-385 P TS QS -Surge Protective Device |
| Dimensions | |
| Product Net Width | 0.0712 m |
| Product Net Height | 0.0956 m |
| Product Net Depth / Length | 0.0653 m |
| Product Net Weight | 0.402 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.434 kg |
