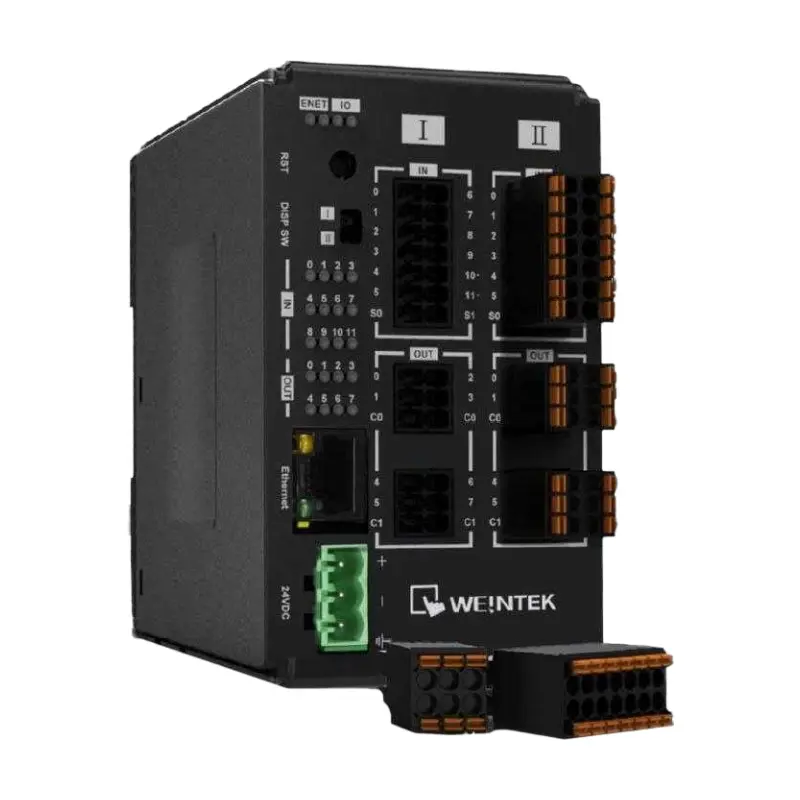

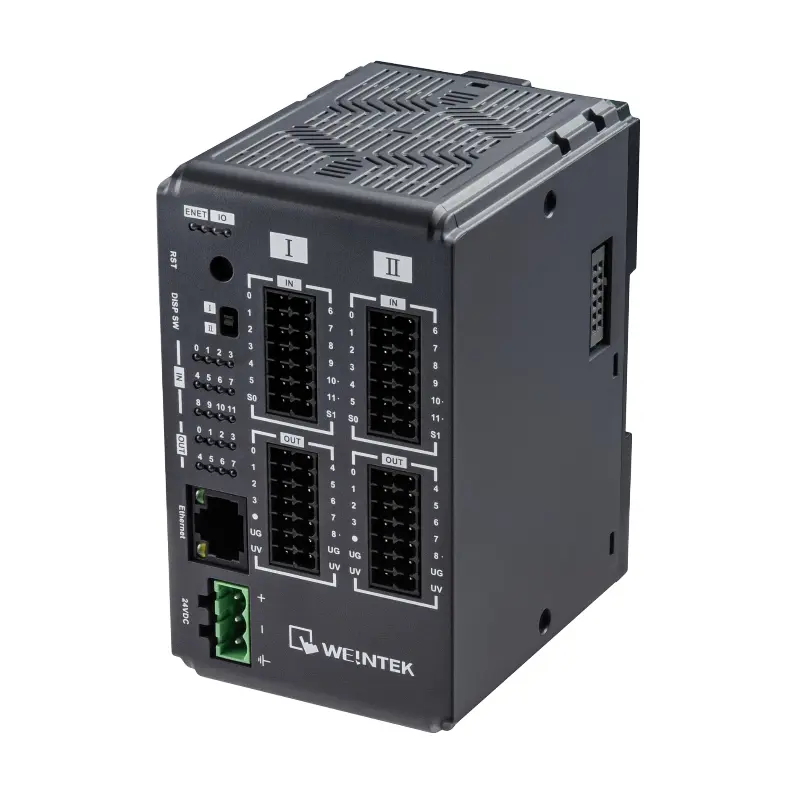

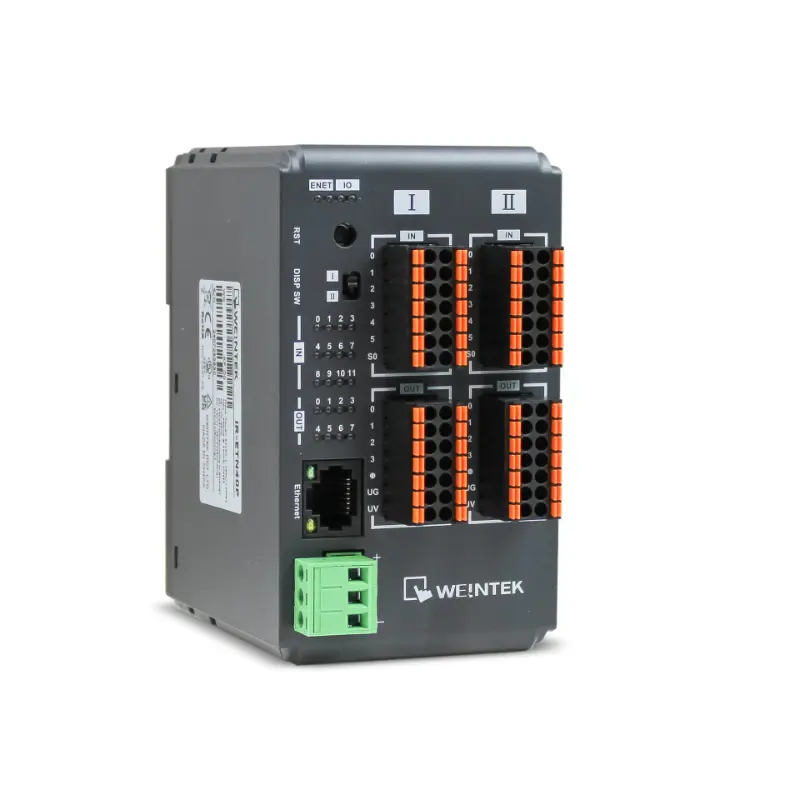

The Weintek IR-ETN40P is an industrial-grade Ethernet remote I/O module designed for high-performance automation environments.
As a modular I/O device, the IR-ETN40P provides standardized digital I/O channels (the "40P" configuration typically denotes a 40-point setup including various input and output channels). It connects to digital input devices such as pushbuttons, proximity switches, and photoelectric sensors, as well as digital output actuators like relays, solenoid valves, and indicator lights.
Features one Ethernet port for direct connection to PLCs, HMIs, SCADA systems, or industrial gateways. It fully supports Modbus TCP/IP for integration with Weintek CMT HMI series, cMT-CTRL PLCs, and third-party controllers from brands like Siemens, Mitsubishi, and Schneider Electric.
Designed for compact spaces, supporting standard 35mm DIN rail mounting. The secure screw-fastened terminals are built to handle frequent vibrations in demanding workshop settings.
Operates on a 24VDC industrial power supply (with tolerating voltage fluctuations of Ā±20%). It offers reverse polarity and overcurrent protection, and holds an IP20 rating ideal for dry control cabinet installations.
Enables structured distributed control, reducing wiring overhead by sending input signals from field sensors directly to higher-level controllers via Ethernet, and returning command signals to output actuators.
Configurable via EasyBuilder Pro or standard Modbus tools. Setup of IP addresses and mapping is straightforward, and hot-swappable module designs optimize maintenance routines.
Mix and match with other Weintek IR series modules (analog and special function modules) to dynamically expand your Ethernet control network from small machinery to massive production lines.
Withstands operating temperatures from -10Ā°C to 60Ā°C. Optimized electromagnetic compatibility (EMC) protects communication from shop floor electrical noise.
Single-Machine Equipment Control: Applied in injection molding, packaging, and printing machines to manage status signals (e.g., pressure and temperature) and output operations.
Distributed Production Lines: Used in automotive assembly and electronics fabrication, linking isolated assembly stations to central controllers over Ethernet.
Environmental and Room Monitoring: Integrates sensors monitoring temperature, humidity, and security/smoke alarms back to facility management portals.
Legacy Equipment Upgrades: Easily bridges non-networked traditional hardware to modern Ethernet infrastructures.
The IR-ETN40P serves as Weintek's core Ethernet I/O solution for small-to-medium project expansions as well as high-capacity distributed networks, bridging the physical field device layer to high-level system control.
Available Models: Weintek IR series IR-ETN40P / iR-ETN40R Ethernet I/O Module
| Communication Interface Specifications | ||
|---|---|---|
| No. of Ports | 1 | |
| Data Transfer Rate | 10/100 Mbps | |
| Data Transfer Medium | 4x2 twisted pair copper cable; category 3 (10 Mbps), category 5 (100Mbps) | |
| Distance Between Stations | 100 m between hub/switch and Bus Coupler | |
| Protocol | Modbus TCP Server, EtherNet/IP adapter | |
| Max. Number of TCP/IP Connections | 8 connections | |
| Network to Logic Isolation | Yes | |
| General Input Specifications | ||
| Total Number of Inputs | 20 | |
| Input Type | Sink or Source | |
| Logic 1 Input Voltage | 15~28 VDC | |
| Logic 0 Input Voltage | 0~5 VDC | |
| Response Time | OFF -> ON: 5 ms | ON -> OFF: 1 ms | |
| High-speed Input Specifications | ||
| Total Number of Inputs | 4 | |
| Input Type | SINK INPUT (PNP) | |
| Logic 1 Input Voltage | 15~28 VDC | |
| Logic 0 Input Voltage | 0~5 VDC | |
| Max. Input Frequency | 20KHz | |
| Physical & Environmental Specifications | ||
| PCB Coating | Yes | Enclosure: Plastic |
| Dimensions (WxHxD) | 64 x 109 x 81 mm | Weight: Approx. 0.27 kg |
| Mount | 35mm DIN rail mounting | |
| Protection Structure | IP20 | Storage Temp: -20Ā° to 70Ā°C (-4Ā° to 158Ā°F) |
| Operating Temperature | -10Ā° to 60Ā°C (14Ā° to 140Ā°F) | Relative Humidity: 10%~90% (non-condensing) |
| Altitude (Air Pressure) | Below 3,000 meters (70.1kPa) | Vibration: 10 to 25Hz (X, Y, Z direction 2G 30 mins) |
| Certificates | ||
| CE | CE marked | |
| UL | cULus Listed | |
| EtherNet/IP | ODVA Conformance Test | |
A1: The module supports Modbus TCP Server and EtherNet/IP adapter protocols, allowing it to communicate seamlessly with various controller types.
A2: The module features 20 general digital inputs and 4 high-speed inputs (max 20KHz frequency), totaling 24 input channels.
A3: The IR-ETN40P is designed to support standard 35mm DIN rail mounting, making it easy to install in standard control cabinets.
A4: Yes. The module features an IP20 protection structure and is equipped with protective PCB coating, making it suitable for standard, dry workshop cabinet environments.
A5: It operates reliably within a temperature range of -10Ā°C to 60Ā°C (14Ā°F to 140Ā°F) and relative humidity levels from 10% to 90% (non-condensing).
A6: Yes. Thanks to its standardized Modbus TCP and EtherNet/IP support, it is compatible with third-party PLCs and systems from brands like Siemens, Mitsubishi, and Schneider Electric.
