Overview

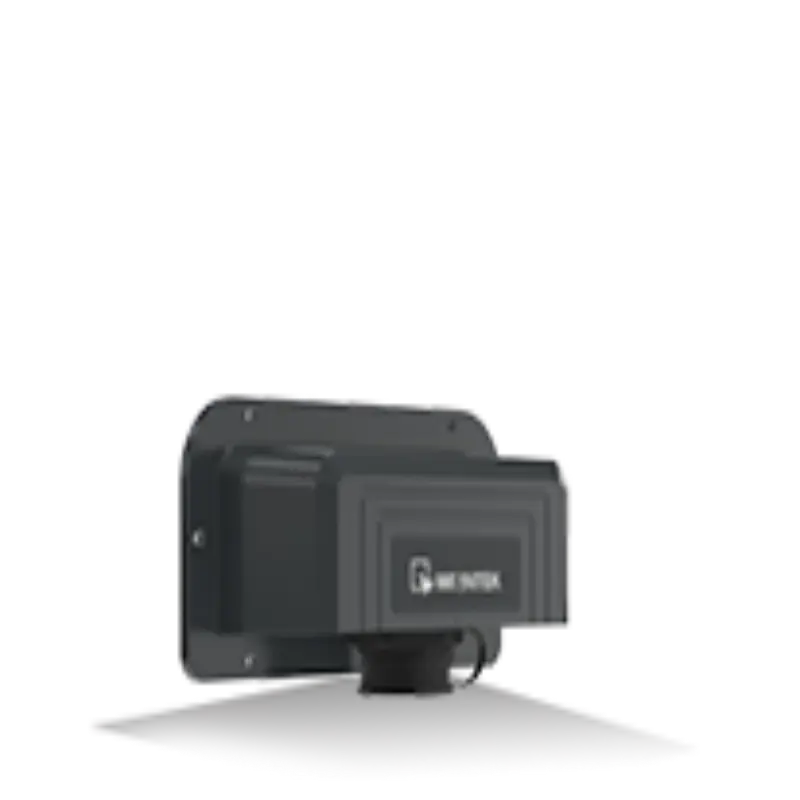

The Weintek cMT-XMBC is a compact connection box designed for external installation on control cabinets. All terminal connections are housed internally within the enclosure, and it features an IP66 protection rating.
Weintek cMT-XMBC is a compact connection box specifically designed for industrial automation scenarios. Its core purpose is to simplify equipment wiring, protect terminal connections, and accommodate installation requirements outside control cabinets. It is particularly suitable for industrial environments demanding stable wiring in harsh conditions, serving as a practical accessory for Weintek human-machine interfaces (HMIs) and industrial control equipment.
I. Core Design and Structural Features
Installation and Layout Design
Features an external control cabinet installation design, allowing direct mounting on equipment bodies, production line frames, or other external areas without occupying limited cabinet space. All terminal connections (e.g., power, communication, and signal wiring terminals) are centralized within the enclosure, eliminating exposed wiring. This simplifies on-site wiring management while reducing risks of accidental contact or damage.
Protection Performance
The enclosure boasts an IP66 protection rating, one of its core advantages. IP66 signifies:
- Dust-tight (Level 6): Complete prevention of dust ingress into the enclosure, avoiding accumulation that could compromise terminal contact.
- Water-resistant (Level 6): Withstands powerful water jets (e.g., industrial cleaning, on-site spraying) without water ingress, making it suitable for harsh workshop environments characterized by humidity, dust, and liquid splashes.
Compact Design
Adhering to a "compact" design philosophy, the enclosure features a small footprint and lightweight construction. It flexibly adapts to limited installation spaces, whether for wall-mounted or equipment-integrated installations, making it particularly suitable for small-to-medium equipment or areas with dense cabling.
II. Core Functions and Value
Centralized Wiring Management
As a connection hub, the cMT-XMBC consolidates dispersed external lines (e.g., communication cables between HMI and PLC, signal lines from sensors to controllers, equipment power branches) into terminals within the enclosure. This "one-box centralized wiring" significantly simplifies field wiring complexity and facilitates troubleshooting and replacement during maintenance.
Connection Protection
Featuring IP66 protection and a sealed enclosure design, it effectively shields terminal connection points from industrial hazards including physical damage (e.g., impacts, scratches), chemical corrosion (e.g., oil, solvents), and environmental interference (e.g., dust, moisture). This reduces equipment downtime risks caused by wiring failures and enhances system operational stability.
High Adaptability
As a complementary accessory within Weintek's industrial control ecosystem, the cMT-XMBC seamlessly integrates with Weintek HMIs (e.g., CMT series), PLCs (e.g., cMT-CTRL series), and other industrial equipment. It also supports standard terminal wiring requirements for mainstream brands, offering strong versatility.
III. Application Scenarios
Leveraging its combined advantages of "outside-the-control-cabinet installation + IP66 protection + compact design," the cMT-XMBC is primarily applied in the following industrial scenarios:
- Small-to-medium production equipment: Such as packaging machines, labeling machines, and small machine tools, used for centralized management of external power and communication wiring to save space inside control cabinets.
- Harsh workshop environments: Such as food processing (frequent cleaning), automotive components (high oil contamination), and electronics manufacturing (dust control), protecting wiring from environmental impacts.
- Dense wiring areas: Such as production line interfaces and equipment integration nodes, simplifying circuit layout through centralized wiring to enhance on-site tidiness and maintenance efficiency.
IV. Product Positioning
The cMT-XMBC is a "functionality-driven" industrial accessory. While lacking complex control or communication capabilities, it delivers reliable and convenient solutions for industrial wiring through optimized installation methods, enhanced protection, and simplified cable management. It serves as a practical tool for improving equipment installation standards and operational stability.
Frequently Asked Questions (FAQ)
What is the main application of the Weintek cMT-XMBC?
The cMT-XMBC is a compact connection box designed to simplify and protect terminal connections outside control cabinets in harsh industrial environments.
What protection rating does the enclosure have?
The Weintek cMT-XMBC has an IP66 protection rating, making it dust-tight and resistant to powerful water jets.
What are the physical dimensions and weight of the connection box?
The external dimensions are 157.9 x 75.9 x 55.2 mm with a panel cutout size of 119.4 x 29.95 mm. It weighs approximately 0.2 kg.
How is the cMT-XMBC mounted?
It is mounted using six M4 screws, with a mounting hole size of 4.6mm.
What is the operating temperature range for the cMT-XMBC?
It operates reliably in temperatures ranging from 0°C to 55°C (32°F to 131°F) with non-condensing relative humidity of 10% to 90%.
