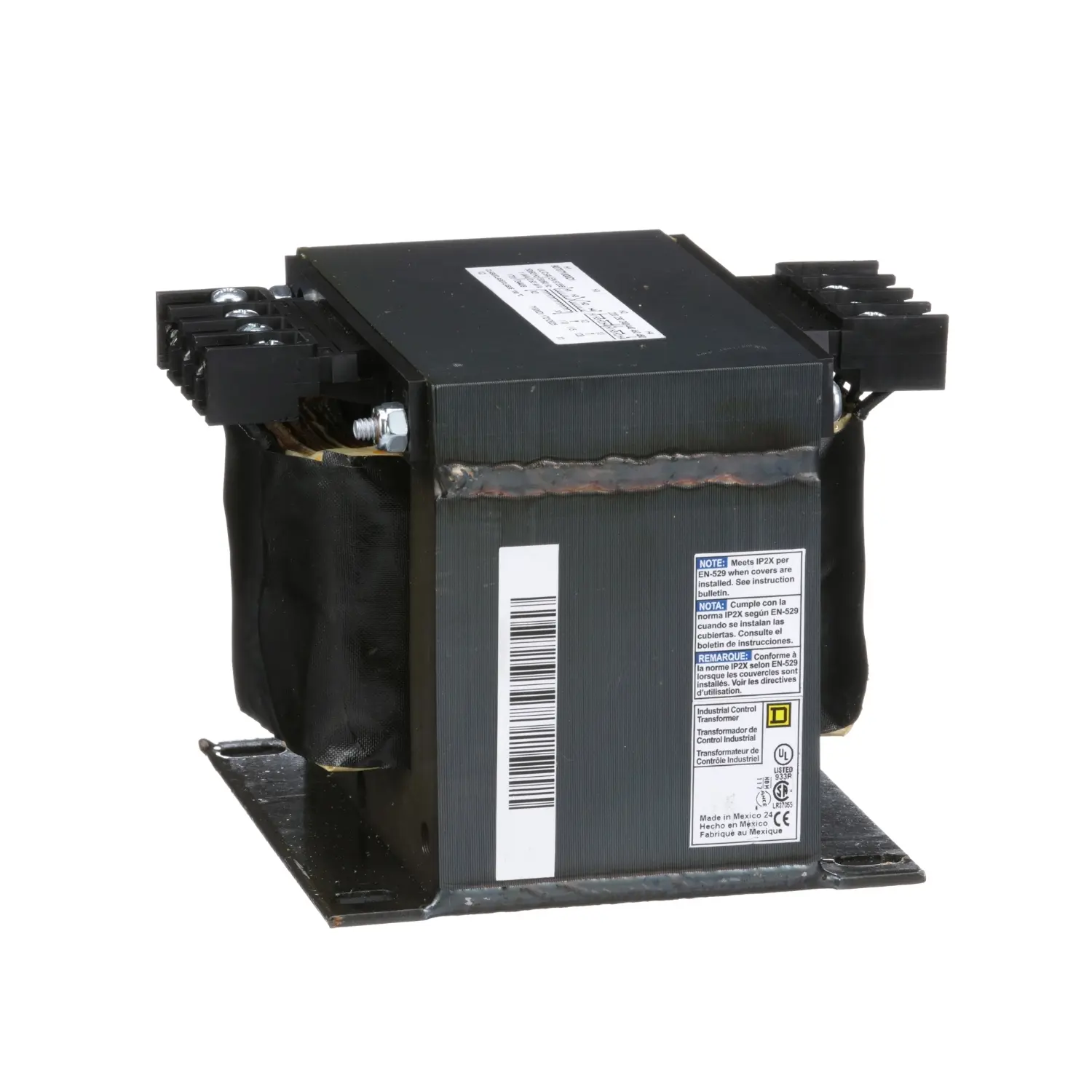

Schneider Electric 9070T1000D1 is a T-type single-phase transformer for industrial control applications, rated at 1000VA. input voltage 240-480V, output voltage 120V, temperature rise rating 115Â°C, supporting 50/60Hz frequency. Designed for multiple temperature ratings, it can be used with customer-installed accessories and meets the electrical characteristics specified in the UL Data Sheet.

Send Inquiry

Product Description

Overview

Specifications

Models

Delivery Information

Manuals + Resources

Square D™ Type T Industrial Control Transformers are ideal for the global market, balancing size and cost. They feature unrivaled design advancements for peak performance and are built with the most modern insulating materials. They also offer customer-installable accessories such as covers, fuse blocks, and fuse clips to meet your specific requirements. This industrial control transformer has a 100VA power rating and is single phase. The primary voltage is 240x480V, with a secondary voltage of 120V. It also experiences a temperature increase of 115 degrees Celsius. This transformer meets UL, CSA, and CE requirements.

Main
Product Type	Industrial Control Transformer
Type	T
Complementary
Number of Phases	1 phase
Power Rating	1000 VA UL
	1000 VA CSA
	1000 VA NOM
	630 VA CE
Primary to Secondary Voltage	240 x 480 V 120 V
	230 x 460 V 115 V
	220 x 440 V 110 V
Temperature Rise	115 °C
Electrical Connection	Screw clamp terminals
Height	4.51 in (114.55 mm)
Width	5.25 in (133.35 mm)
Depth	6.3 in (160.02 mm)
Material	Copper: winding
Fingersafe Cover Compatibility	FSC2
Environment
Certifications	UL listed file E61239
Certifications	CSA file LR37055 guide 184-N-90
Enclosure Type	Not rated (open device)
Insulation Temperature	356 °F (180 °C)
Ordering and shipping details
Category	US10CP816201
Discount Schedule	0CP8
GTIN	7.85902E+11
Returnability	Yes
Country of origin	MX
Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	7.000 in (17.780 cm)
Package 1 Width	9.300 in (23.622 cm)
Package 1 Length	9.800 in (24.892 cm)
Package weight(Lbs)	21.700 lb(US) (9.843 kg)
Unit Type of Package 2	PAL
Number of Units in Package 2	56
Package 2 Height	27.000 in (68.580 cm)
Package 2 Width	40.000 in (101.600 cm)
Package 2 Length	48.000 in (121.920 cm)
Package 2 Weight	1231.999 lb(US) (558.825 kg)

Models: Transformer, Type T, industrial control, 1000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise 9070T1000D1

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	7.000 in (17.780 cm)
Package 1 Width	9.300 in (23.622 cm)
Package 1 Length	9.800 in (24.892 cm)
Package weight(Lbs)	21.700 lb(US) (9.843 kg)
Unit Type of Package 2	PAL
Number of Units in Package 2	56
Package 2 Height	27.000 in (68.580 cm)
Package 2 Width	40.000 in (101.600 cm)
Package 2 Length	48.000 in (121.920 cm)
Package 2 Weight	1231.999 lb(US) (558.825 kg)

Industrial Control Transformer Datasheet PDF Icon

Industrial Control Transformer 9070T1000D1 Datasheet.pdf

Download

Frequently Asked Questions (FAQ)

What are the primary and secondary voltage ratings of this transformer?

This industrial control transformer features a primary voltage rating of 240x480V and a secondary voltage rating of 120V.

What is the power capacity and phase configuration of this model?

The transformer provides a 100VA (and up to 1000 VA UL/CSA depending on specific regulatory ratings) power rating, operating on a single-phase configuration.

Which environmental certifications does the transformer meet?

This Type T industrial control transformer complies with UL listed, CSA, and CE requirements, ensuring high performance and safety standards globally.

What is the standard temperature rise and insulation rating for the device?

The transformer features a temperature rise limit of 115 °C and has an insulation temperature class rating of 356 °F (180 °C).

What safety and installation accessories are compatible with this transformer?

It supports customer-installable accessories to meet custom requirements, including covers (compatible with FSC2 fingersafe covers), fuse blocks, and fuse clips.
