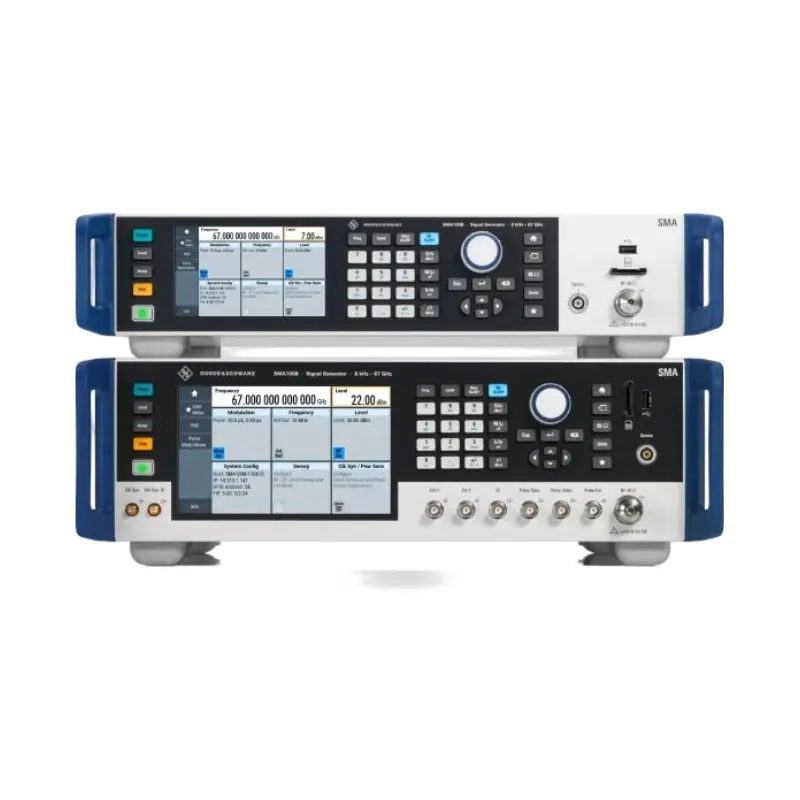

The R&S®SMA100B is a high-performance RF and microwave signal generator, renowned for its exceptional signal purity, output power, and modulation capabilities. It is suitable for demanding application scenarios such as research and development, production, and calibration.
9 kHz to 3 GHz, 6 GHz, or 12.75 GHz. Extended options available up to 20 GHz, 31.8 GHz, or 40 GHz.
Phase Noise: ≤ -136 dBc/Hz (at 1 GHz with a 20 kHz offset). Harmonic Distortion typical value ≤ -50 dBc.
Range from -144 dBm to +30 dBm (at 1 GHz) with ±0.5 dB typical level accuracy.
| Parameter | Specification |
|---|---|
| Frequency Range | 8 kHz - 3 GHz up to 67 GHz (72 GHz in over-range) |
| SSB Phase Noise | ≤ -136 dBc/Hz (at 1 GHz, 20 kHz offset) |
| Wideband Noise | -162 dBc (at 10 GHz, 30 MHz offset) |
| Modulation | Analog: AM, FM, PM, Pulse; Digital: IQ Modulation (optional) |
| Pulse Generator | Width as low as 5 ns (optional) |
| Reference Clock | 10 MHz, supports external synchronization |
✓ User-friendly Operation: High-resolution touch display with SCPI macro recorder and MATLAB script generation.
✓ Easy Technology Upgrade: LegacyPro code simulation reliably simulates generators from Keysight, Agilent, HP, and Anritsu.
✓ Advanced Modulation: Supports AWGN (Additive White Gaussian Noise) and complex signals for 5G NR and Wi-Fi 6.
✓ Application Scenarios: Ideal for Radar testing, Wireless Communication R&D, and Calibration labs.
Weight: 10kg | Power: Without battery
