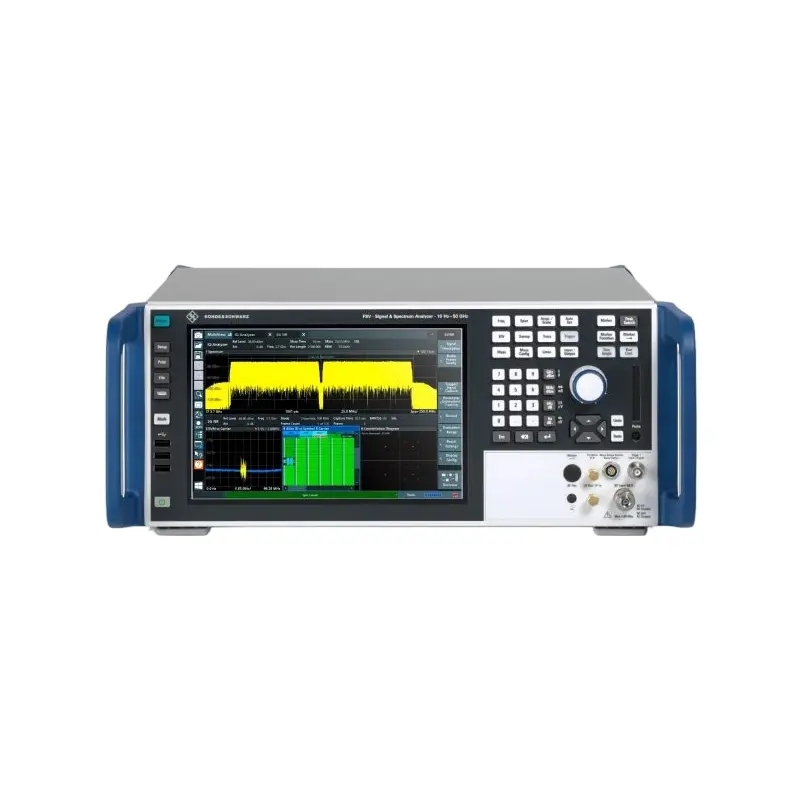

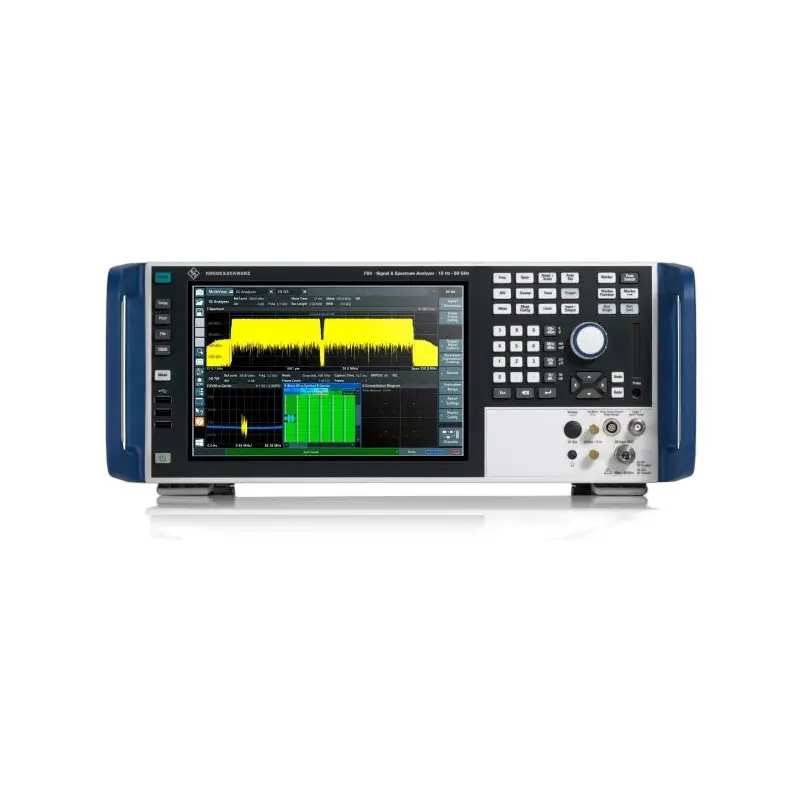

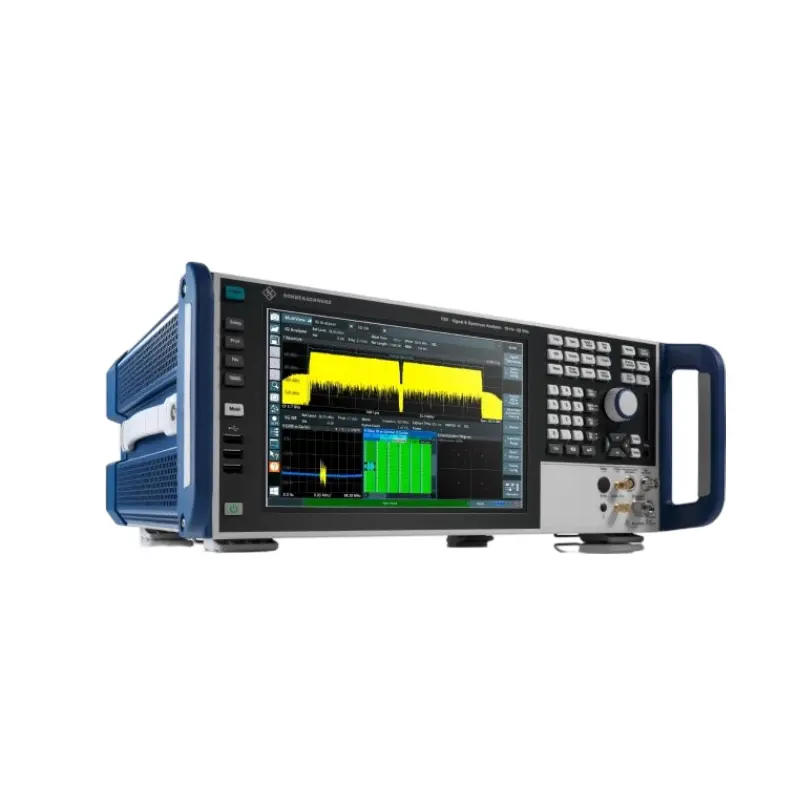

The Rohde & Schwarz R&S®FSV3030 is a high-performance signal and spectrum analyzer in the FSV3000 series, engineered for spectrum analysis and measurement of various complex signals.
Offers a wide coverage range from 10 Hz to 4/7.5/13.6/30/44 GHz, satisfying diverse application testing scenarios.
Standard I/Q demodulation bandwidth of 28 MHz. Upgradable to 200 MHz (R&S®FSV3-B200 option) or 400 MHz (R&S®FSV3-B400 option).
At a 1 GHz carrier, SSB phase noise is < -115 dBc/Hz at 1 kHz offset. Display Average Noise Level (DANL) typically sits at -153 dBm at 1 GHz, with measurement uncertainty of 0.29 dB at 2 GHz.
Features responsive touch-screen control supporting a multi-touch graphical interface, event-based operations, and an integrated SCPI recorder.
Highly suited for electronic communication, radio monitoring, electromagnetic compatibility (EMC) testing, and advanced radar testing.
Supports advanced analog and digital signal analysis, including 5G NR. Hardware upgrades include a quad-core CPU option, internal PCIe 3.0 bus, and a fast 10 Gbit/s LAN interface.
| Parameter | Specification |
|---|---|
| Frequency Range | 10 Hz to 30 GHz |
| Maximum Analysis Bandwidth | Up to 200 MHz (with R&S®FSV3-B200 option); Standard I/Q demodulation bandwidth is 28 MHz |
| Resolution Bandwidth (RBW) | Up to 40 MHz |
| SSB Phase Noise (at 1 GHz, 10 kHz offset) | < -114 dBc/Hz (with B710 option); < -120 dBc/Hz (standard configuration) |
| Displayed Average Noise Level (DANL) | -155 dBm/Hz at 1 GHz; -147 dBm/Hz at 30 GHz; With R&S®FSV-B24 preamplifier: -162 dBm/Hz at 30 GHz |
| Third-Order Intercept Point (TOI) | > 17 dBm at 1 GHz, typical value 20 dBm |
| Total Measurement Uncertainty | 0.4 dB up to 7 GHz |
| Input Impedance | 50 Ω (standard) |
| Maximum Input Power | +30 dBm |
| Input Attenuation Range | Electronic attenuator, 1 dB steps |
| Operation Interface | Touch-screen based, supports multi-touch graphical user interface, SCPI recorder, and event-based operation |
| Dimension | 462*197*417mm |
| Weight | 13.8kg |
| Models | Rohde & Schwarz R&S®FSV3000 series Signal and spectrum analyzer R&S®FSV3030 |
|---|---|
| Key Features | Frequency range from 10 Hz to 4, 7.5, 13.6, 30, 44, 50 GHz |
| Analysis bandwidth up to 200 MHz | |
| SSB phase noise at 10 kHz offset (1 GHz): -114 dBc/Hz | |
| GUI with multi-touch, SCPI recorder and event based actions | |
| Options for analog and digital signal analysis, including 5G NR |
The R&S®FSV3030 signal and spectrum analyzer operates within a frequency range of 10 Hz to 30 GHz, accommodating a wide scope of measurements.
The standard configuration offers a 28 MHz I/Q demodulation bandwidth. This can be extended up to 200 MHz with the optional R&S®FSV3-B200 bandwidth upgrade.
By default, the device is configured without a battery. However, mobile and field operations can be achieved using the optional lithium-ion battery pack (R&S®FSV-B32) and the dedicated battery charger (R&S®FSV-B34).
It features a multi-touch graphical interface, an integrated SCPI recorder for quick program automated sequence capturing, and event-based actions to facilitate simple configuration workflows.
The R&S®FSV3030 achieves a SSB Phase Noise of < -120 dBc/Hz (standard config) at a 10 kHz offset (1 GHz carrier), and a displayed average noise level (DANL) of -155 dBm/Hz at 1 GHz.
