Phoenix Contact PSM-ME-RS232/RS485-P (Part Number 2744416) is a multi-protocol interface converter specifically designed for industrial communication interface upgrades. Its core function is to enable bidirectional conversion between RS-232 (V.24) and RS-422 (V.11), RS-485 bus-type interfaces, resolving compatibility issues between traditional point-to-point communication and bus-based multi-device networking. It is widely used in industrial automation systems for expanding device communication ranges and multi-device networking scenarios.

I. Core Conversion Functions and Communication Capabilities

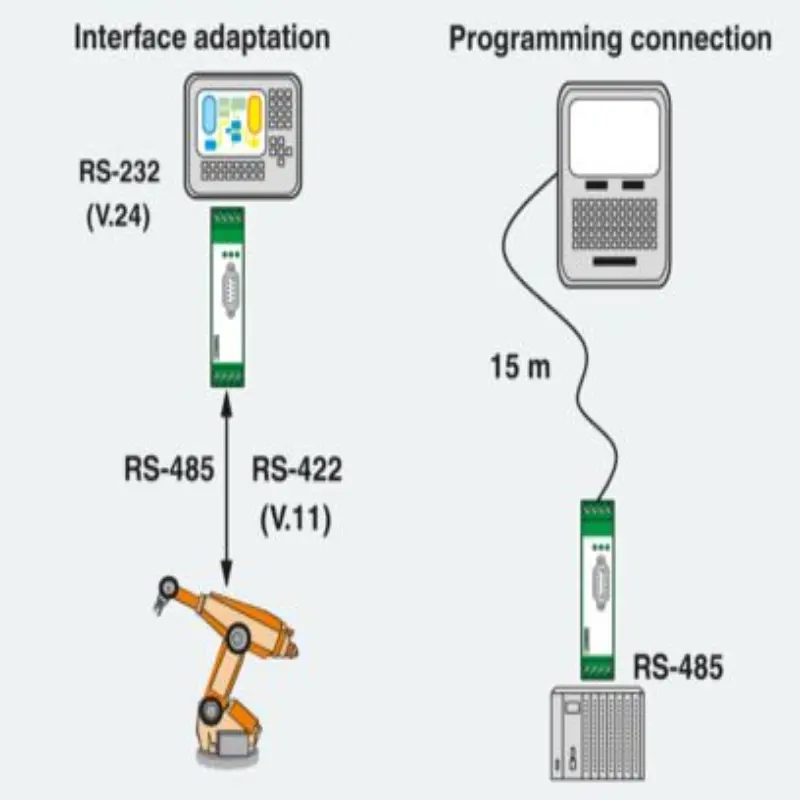

• Multi-Protocol Bidirectional Conversion: Supports two core conversion directions covering common industrial communication needs:
• Converts RS-232 (V.24) signals (traditional point-to-point interface supporting direct connection of only 2 devices) to RS-485 signals (bus-type interface enabling networking of up to 32 devices via 2-wire or 4-wire cables based on the RS-485 standard), overcoming the device quantity limitations of point-to-point communication.
• Simultaneously supports converting RS-232 (V.24) signals to RS-422 (V.11) signals (full-duplex differential communication interface, suitable for scenarios requiring simultaneous bidirectional data transmission), accommodating device integration needs across different bus protocols.
• Dual-Channel Design: Incorporates two independent conversion channels, enabling simultaneous RS-232 to RS-422/RS-485 signal conversion. This eliminates the need for additional converters when upgrading communication for multiple device groups, enhancing networking efficiency and equipment utilization.

II. Installation and Adaptability Design

• DIN Rail Mounting: Supports industrial-standard DIN rail installation (compatible with EN 60715 DIN rails, e.g., NS 35/7.5). Directly integrates into communication module zones within control cabinets, enabling coordinated layout with PLCs, inverters, sensors, and other devices. Saves installation space and facilitates future maintenance.
• Interface Compatibility: Features standard RS-232 interfaces (typically DB9 connectors) and RS-422/RS-485 interfaces (typically terminal block wiring). Connects to most industrial equipment communication ports without custom adapters, reducing wiring complexity.
• Electromagnetic Compatibility (EMC) Performance: Incorporates industrial-grade EMC design compliant with EN 61000 series standards, providing resilience against electromagnetic radiation and pulse interference in industrial environments to prevent communication interruptions or data packet loss.
