| Parameters | Details |
|---|---|

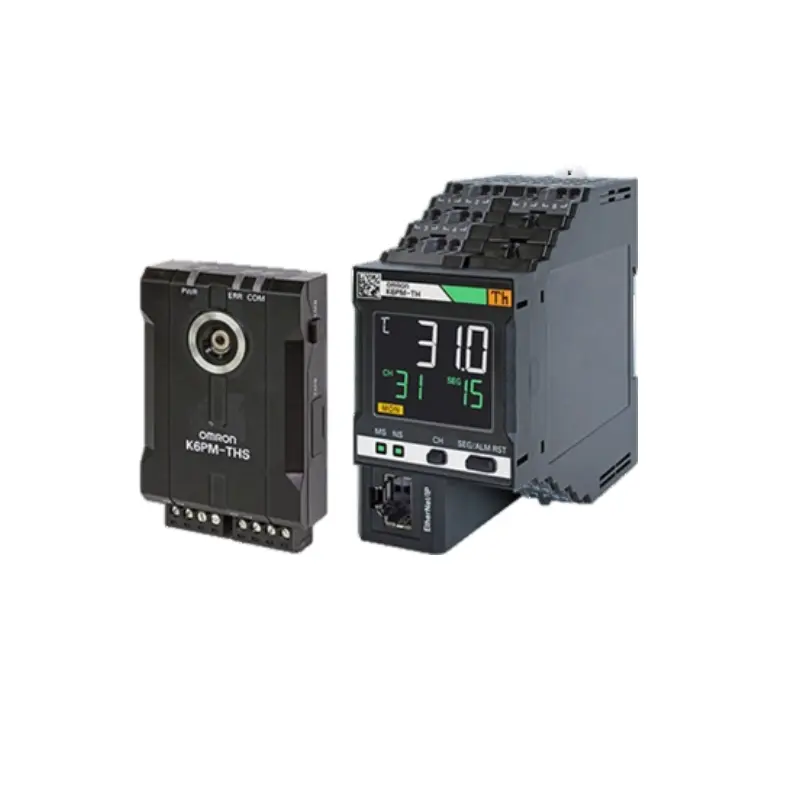

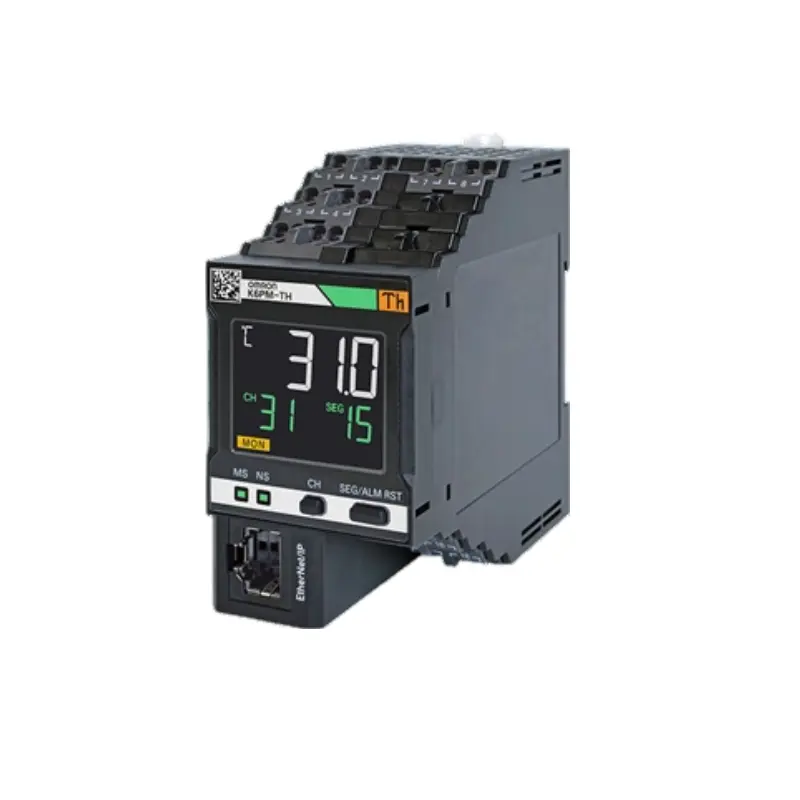

| Model | K6PM-THMD-EIP |
| Supply Voltage | DC 20.4 - 26.4V (24VDC nominal) |
| Allowable Operating Voltage Range | 85% - 110% of the supply voltage |
| Power Consumption | 1.6W max |
| Compatible Sensor | K6PM-THS3232 |
| Number of Connected Sensors | 31 units |
| Output Type | Transistor output |
| Number of Outputs | 3 points |
| Rated Voltage | 24VDC |
| Maximum Current | 50mA |
| Ambient Operating Temperature | -10 to +55°C (with no condensation or freezing) |
| Ambient Storage Temperature | -20 to +65°C (with no condensation or freezing) |
| Ambient Operating Humidity | 25% to 85% (with no condensation) |
| Storage Humidity | 25% to 85% (with no condensation) |
| Exterior Color | Black |
| Case Material | PC UL94-V0 |
| Altitude | 2,000m max |
| Applicable Wires | Stranded wires, solid wires, or ferrules |
| Applicable Wire Size | 0.25 to 1.5 mm² (AWG 24 to AWG 16) |
| Wire Insertion Force | 8N max. for AWG20 wire |
| Screwdriver Insertion Force | 15N max |
| Mounting Method | DIN rail or screw mounting |
| Dimensions | 45(W) * 90(H) * 90(D) mm |
| Weight | Approx. 200g |
| Communication Ports | Ethernet/IP, Modbus/TCP, Serial RS-485 |
| Sampling Cycle for the Sensor | Approx. 1 second/unit |
| External Trigger | External contact |
| Alarm Measurement Parameters | Current temperature, differential temperature, sensor internal temperature |
| Threshold Setting Range | 0.0 to 999.9°C (0.0 to 999.9°F) |
| Hysteresis | 3.0°C width (5.4°F width) |
| Resetting Method | Manual resetting or automatic resetting (switching) |
| LCD Display | 7-segment digital display |
| View Angle | 90° * 90° (window of 200 mm * 200 mm at 10 cm) |
