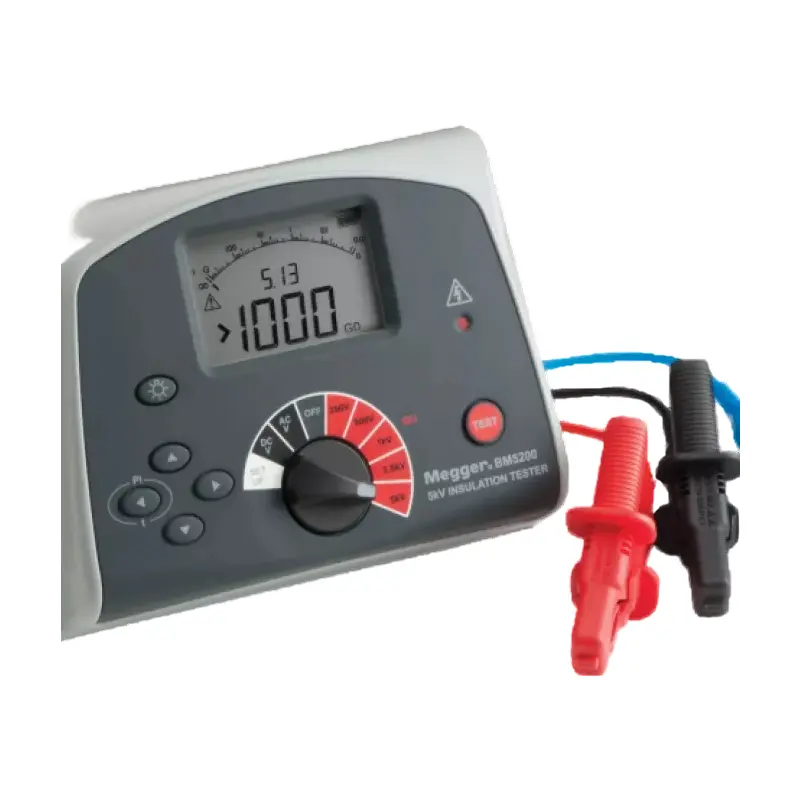

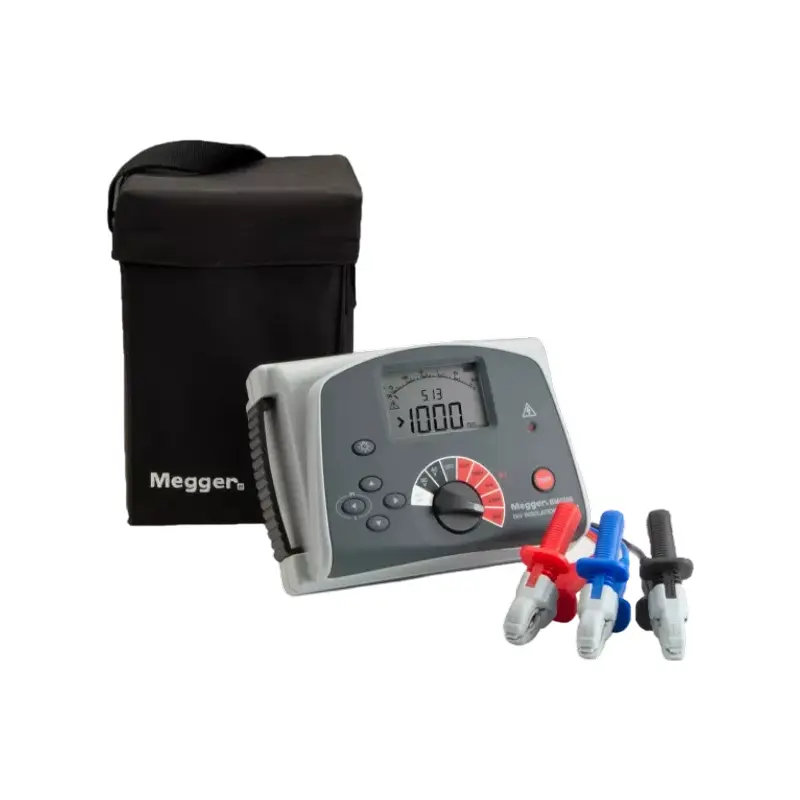

| Specification | Details |
|---|---|
| Insulation Resistance Range | 100 kΩ - 1 TΩ |
| Nominal Test Voltage | 250 V, 500 V, 1000 V, 2500 V, 5000 V |
| Terminal Voltage Accuracy | <1000 V: 0 - +10% of nominal test voltage; ≥1000 V: 0 - +5% of nominal test voltage |
| Insulation Accuracy | Up to 1 GΩ: ±5% ±2 digits; Over 1 GΩ: 5000 V: ±5% ±0.04% per GΩ; 2500 V: ±5% ±0.08% per GΩ; 1000 V: ±5% ±0.2% per GΩ; 500 V: ±5% ±0.4% per GΩ; 250 V: ±5% ±0.8% per GΩ |
| Short - Circuit Current | 1.4 mA ± 0.5 mA |
| Maximum Load Capacitance | 5 µF |
| Voltmeter Accuracy | 3% ± 3 V |
| Frequency Measurement | 45 Hz - 65 Hz |
| Frequency Measurement Accuracy | ±2 Hz |
| Voltmeter Range | Up to 600 V a.c. or d.c. |
| Power Supply | 8 x LR6/AA batteries |
| Battery Life | 5 hours @ 5 kV into 100 MΩ with AA alkaline LR6 |
| Guard | 2% error guarding, 5 MΩ leakage on 100 MΩ load |
| Operating Temperature Range | -20 °C - +55 °C |
| Operating Humidity | 90% RH, 0 °C - 40 °C; 70% RH, 40 °C - 55 °C |
| Storage Temperature Range | -20 °C - +65 °C |
| IP Rating | IP40 |
| Maximum Altitude | 2000 m |
| EMC | Conforms to IEC 61326 |
| Dimensions (W, H, D) | 220 mm x 115 mm x 163 mm |
| Weight | 1.45 kg |
