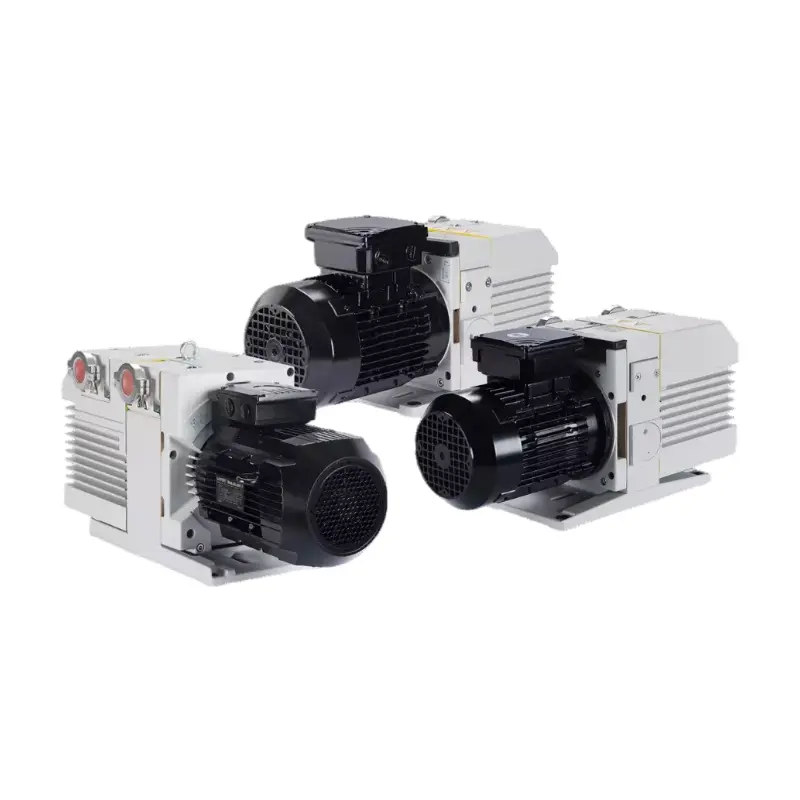

Best Leybold TRIVAC D 16 B Oil sealed pumps Manufacturers, Supplier

The Leybold TRIVAC D 16 B is a two-stage, oil-sealed rotary vane vacuum pump. Its integrated gas ballast provides low ultimate pressure and high water vapor tolerance, resulting in excellent high vacuum performance. The TRIVAC B pump is quiet and vibration-free, contributing to the noise level in the operating environment. Its proven robust design, low heat loss, and air cooling make the TRIVAC B pump portable and compact.

Send Inquiry

Product Description

Product Overview

The Leybold TRIVAC D 16 B is a high-performance two-stage, oil-sealed rotary vane vacuum pump designed for stable and superior operation. It utilizes the rotary vane principle with oil injection into the pump chamber to ensure perfect sealing, continuous lubrication, and efficient cooling during operation.

Rugged & Durable The internal body is constructed from individual components without conventional seals, marked for precise reassembly. This design ensures exceptional durability and extended operating lifecycles.

Anti-Backflow System Equipped with a hydraulically controlled anti-backflow valve at the air inlet. It closes instantly when the pump stops, preventing vacuum chamber pressure buildup and oil contamination.

Optimized Cooling Features an integrated ducted cooling system with an additional motor-driven fan, maintaining constant temperatures and providing high water vapor tolerance.

Low Noise Design Intelligent vibration reduction and a flexible coupling between the motor and pump unit eliminate surface noise, ensuring a quiet working environment.

Continuous Operation An integrated oil pump guarantees lubrication at any inlet pressure, allowing the device to run safely at 1000 mbar or even at minimum oil levels.

Wide Application Ideal for medical sterilization, metallurgy, heat treatment, automotive industries, refrigeration, and as a backing pump for high-vacuum systems.

Technical Specifications

Specification	Details
Part Number	11333 (Standard Model)
Pumping Speed (50 Hz)	16.5 m³/h
Pumping Speed (60 Hz)	19.8 m³/h
Ultimate Pressure	2 x 10⁻³ mbar
Motor	3-ph, 230/400 V, 50/60 Hz
Operating Fluid	Leybonol LVO 210
Inlet/Outlet Connection	DN 25 ISO-KF
Ultimate Total Pressure (without Gas Ballast)	< 2.0 x 10⁻³ mbar
Water Vapor Capacity	305 g/h
Oil Capacity	Min. 0.5 l / Max. 1.0 l
Noise Level	54 dB(A) without ballast / 56 dB(A) with ballast
Motor Rating	750 W (1.0 hp)
Rotation Speed (50/60 Hz)	1,460 / 1,750 rpm
Protection Rating	IP 55
Shipping Weight	31.5 kg (70 lbs)

Delivery & Dimensions

Dimensions: 254mm × 177.8mm × 254mm

Net Weight: 31.5 kg

Standard delivery includes specialized protective packaging to ensure equipment integrity during transit. Shipping methods and lead times are determined based on the specific purchase location and logistical requirements.

Manuals & Resources

Leybold TRIVAC D 16 B Oil sealed pumps datasheet.pdf

Frequently Asked Questions

What is the pumping speed of the Leybold TRIVAC D 16 B?

The pump offers a pumping speed of 16.5 m³/h at 50 Hz and 19.8 m³/h at 60 Hz.

How does the anti-backflow design work?

It features a hydraulically controlled valve at the inlet that closes immediately when the pump stops, preventing oil and pressure from entering the vacuum chamber.

Can this pump operate continuously at high pressure?

Yes, the integrated oil pump ensures continuous lubrication regardless of inlet pressure, allowing for stable operation even at 1000 mbar.

What are the primary applications for this model?

It is widely used in medical sterilization, vacuum metallurgy, automotive manufacturing, refrigeration, and as a backing pump for high-vacuum systems.

What type of oil is recommended for the TRIVAC D 16 B?

The standard operating fluid recommended for this model is Leybonol LVO 210.

Is the pump noisy during operation?

No, the design includes a low-noise motor and flexible coupling, keeping the noise level between 54 and 56 dB(A).
