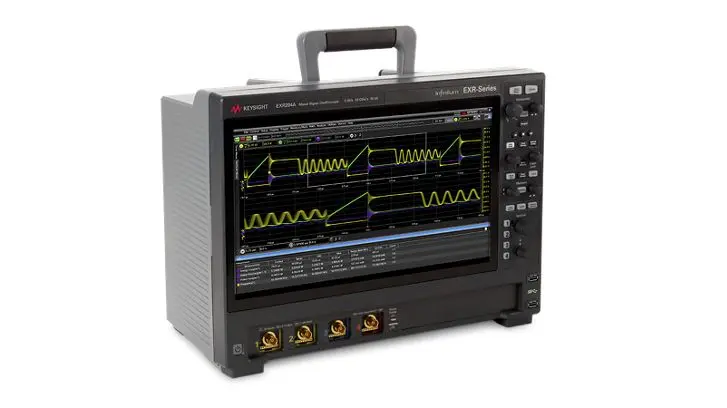

Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product
Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product
Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product
Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product
1 / 4
Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product
Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product
Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product
Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product

Best Keysight Infiniium EXR-Series Oscilloscope EXR204A: 4 Channels, 2 GHz Exporter, Product

strong. Owning anything is simple. Easy to use.

Send Inquiry

Product Description

Overview

With its four or eight channels, the Infiniium EXR-Series provides a maximum bandwidth of 6 GHz and a sample rate of 16 GSa/s. You can see more of your signal than ever before with the Infiniium EXR-Series thanks to its 100 Mpts of standard memory per channel, flexible threestage triggering, more than 50 standard measurements, a vast library of application-specific packages, and ASIC-accelerated testing.

Specifications

  • ✓ 2 GHz on all 4 analog channels
  • ✓ Faster test speeds than ever before with ASIC technology
  • ✓ Accurate measurements with ENOB up to 9.0, noise as low as 43 µV
  • ✓ Maximum memory is a flexible 1.6 G points
  • ✓ Capabilities are extended with 7-in-1 instrument integration
  • ✓ Upgradeable in every possible way – including bandwidth and channel upgrades

Models

Model Numbers 4 Channels 8 Channels
500 MHz EXR054A EXR058A
1 GHz EXR104A EXR108A
2 GHz EXR204A EXR208A
2.5 GHz EXR254A EXR258A
4 GHz EXR404A EXR408A
6 GHz EXR604A EXR608A

Delivery Information

Parameter Details
Weight Frame 4 - channel models: 13.75 kg (30.3 lbs.)
8 - channel models: 14.50 kg (32.0 lbs.)
Shipping 4 - channel models: 20.95 kg (46.2 lbs.)
8 - channel models: 21.90 kg (48.3 lbs.)
Dimensions Height 327 mm (12.9 in) with feet retracted
Width 443 mm (17.5 in)
Depth 223 mm (8.8 in) including knobs and rear feet

Manuals & Resources

Keysight Infiniium EXR-Series Oscilloscope
📄
S7970A-Playback.pdf
Download

Frequently Asked Questions (FAQ)

What is the maximum bandwidth of the Infiniium EXR-Series?
The Infiniium EXR-Series oscilloscopes provide a maximum bandwidth of up to 6 GHz, depending on the specific model selected.
How many analog channels are available in the EXR-Series?
The EXR-Series comes in configurations with either 4 or 8 analog channels.
What is the standard sample rate and memory depth?
It features a high sample rate of 16 GSa/s and offers a generous 100 Mpts of standard memory per channel.
Can the bandwidth and channel configuration of the oscilloscope be upgraded?
Yes, the Infiniium EXR-Series is designed to be fully upgradeable, allowing you to scale both the bandwidth and the number of active channels as your testing requirements grow.
What physical space and weight requirements should I expect?
The frame weight is approximately 13.75 kg for 4-channel models and 14.50 kg for 8-channel models, with overall dimensions of 443 mm in width, 327 mm in height, and 223 mm in depth.
