Keysight AE6000L Automotive Ethernet Channel Testing Solution (formerly AE6900L, with identical functionality and only a different top-level model number) is an integrated solution encompassing software, hardware, and accessories, designed to address the testing needs of automotive Ethernet channels amid the growing demand for high speed and bandwidth in next-generation ADAS systems—where high-resolution camera and radar systems rely on automotive Ethernet standards for fast data communication to meet present and future connected vehicle requirements.

Send Inquiry

Product Description

AE6900L is now AE6000L. The functionality remains the same, with just a different top-level model number.
Next-generation ADAS systems require camera and radar systems with high resolution, which require increased speed and bandwidth. The automotive Ethernet standard enables faster data communication to meet the demands of today’s vehicles and the connected vehicles of the future. However, the channel or link in a system can create a point of failure and as such must be fully tested.
Keysight’s automotive Ethernet conformance channel test solution verifies that information is carried, without loss or cross talk, to its intended destination. The solution ensures signal quality requirements with conformance testing for the channel, including harness, cables or connectors. The solution is built on functional and multipurpose hardware that can be fully utilized for other tasks and tests when not actively used for automotive Ethernet channel tests.
The AE6000L solution provides a bundle of hardware, software and accessories to help you understand the integrity of your automotive Ethernet channel.
1. Standards Supported
  • Channel testing per OPEN Alliance (1000BASE-T1) - TC9 UTP and STP specifications
  • OPEN Alliance 100BASE-T1 Definitions for communications channel
  • IEEE 802.3bw, 802.3bp and 802.3ch
2. Key Capabilities

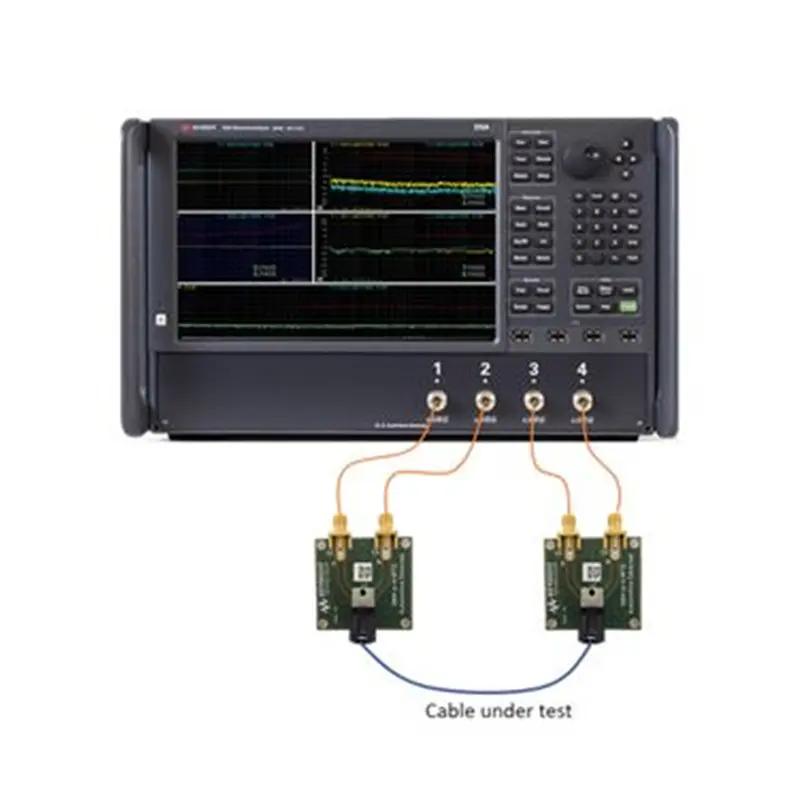

  • Cable, harness and connector testing for automotive Ethernet channels
  • Bundles all relevant hardware, software and accessories into one model number

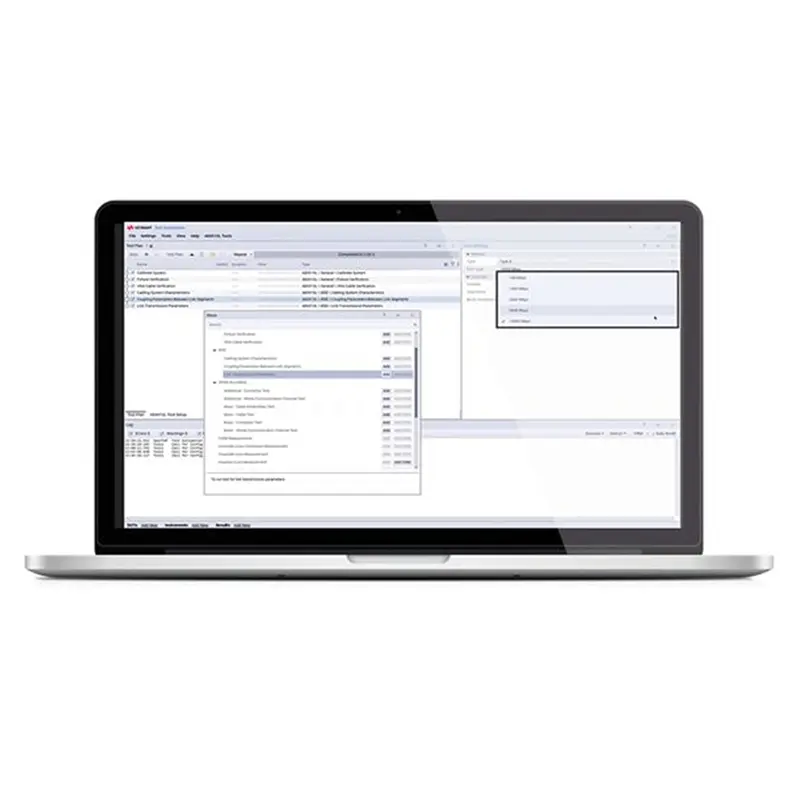

  • Software creates a test plan and automatically sets up the network analyzer for each measurement, then applies the limit lines
  • Accurate and repeatable results with any of three different form factors of Keysight world-class vector network analyzers
3. Ordering Information

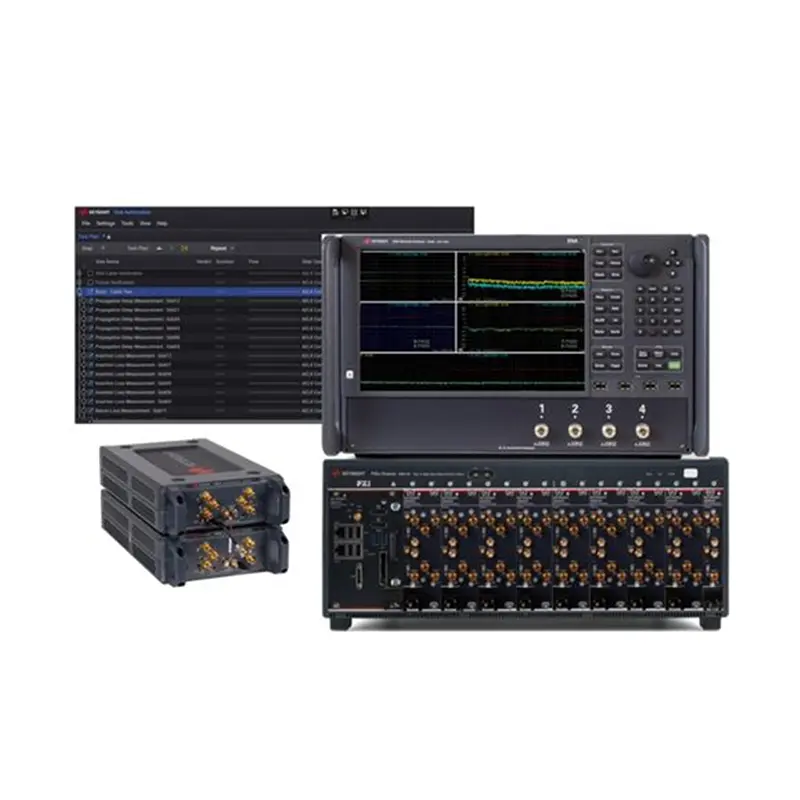

The solution runs on a VNA with option TDR, choose benchtop (E5080B), PXI (M980xA series) or USB (P5000A Series). See configuration guidelines available in the datasheet. The software requires Keysight PathWave Test Automation software.
Category Details
Supported Standards Channel testing in accordance with Open Alliance (1000 Base - T1)-TC9 UTP and STP specifications; Open Alliance 100 Base - T1 communication channel definition; IEEE 802.3bw, 802.3bp, and 802.3ch
Key Functions Testing of cables, harnesses, and connectors for automotive Ethernet channels; Bundling all relevant hardware, software, and accessories into one model; The software creates a test plan and automatically sets up the network analyzer for each measurement, applying limit lines; Using three different form-factor Keysight world-class vector network analyzers to obtain accurate and repeatable results
Operating Platform The solution runs on a vector network analyzer with the TDR option, and you can choose benchtop (E5080B), PXI (M980XA series), or USB (P5000A series)
Internal Components Tracking Generator, VSWR Bridge, Bias Tee
Software Requirements Requires Keysight PathWave test automation software
Models: Keysight AE6000L Automotive Ethernet Channel Testing Solution
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
FD-615MT Specs.pdf

Keysight AE6000L Automotive Ethernet Channel Testing Solution datasheet.pdf

Download
Frequently Asked Questions
Q1: What is the relationship between the AE6900L and AE6000L models?
A: The AE6900L has been updated to the AE6000L model number. The functionality remains exactly the same; only the top-level model name has changed.
Q2: Which communication standards are supported by the AE6000L channel testing solution?
A: The solution supports channel testing in accordance with OPEN Alliance (1000BASE-T1) - TC9 UTP and STP specifications, OPEN Alliance 100BASE-T1 communication channel definitions, and IEEE 802.3bw, 802.3bp, and 802.3ch.
Q3: What key components are tested by the AE6000L solution?
A: The AE6000L performs comprehensive conformance testing for automotive Ethernet channels, including the harness, cables, and connectors, to ensure optimal signal quality.
Q4: What instruments and platforms are required to run this solution?
A: The solution runs on a vector network analyzer (VNA) with the TDR option. Compatible options include benchtop VNAs (E5080B), PXI VNAs (M980xA series), or USB VNAs (P5000A Series).
Q5: What internal hardware and software tools are needed for testing?
A: The internal components of the testing channel include a Tracking Generator, VSWR Bridge, and Bias Tee. Additionally, the solution requires the PathWave Test Automation software to create test plans and apply limit lines.
