Wholesale Keysight 4000 X-Series MSOX4154G Mixed Signal Oscilloscope Manufacturer, Exporters

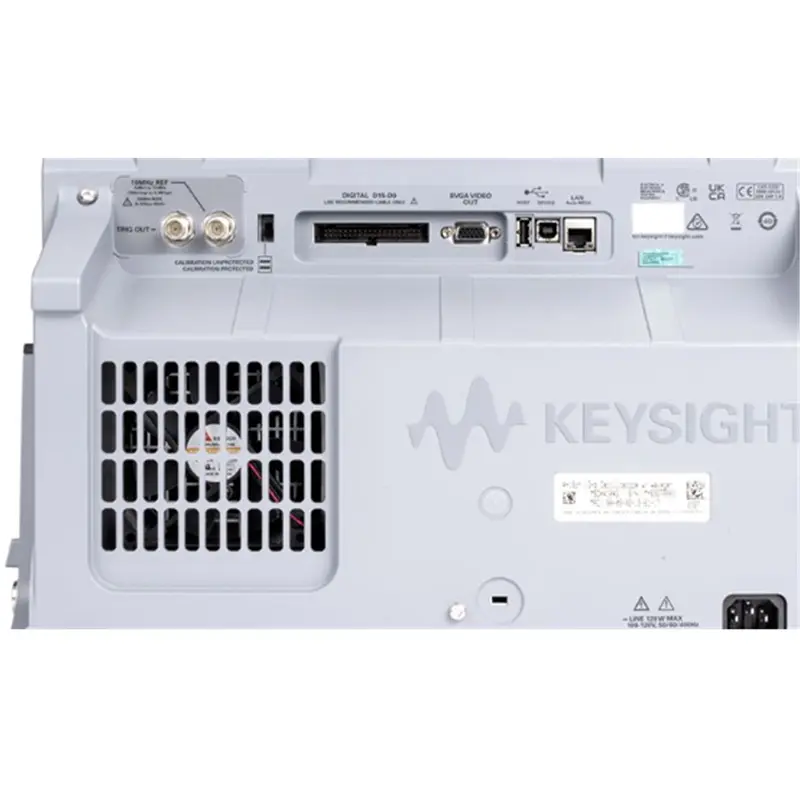

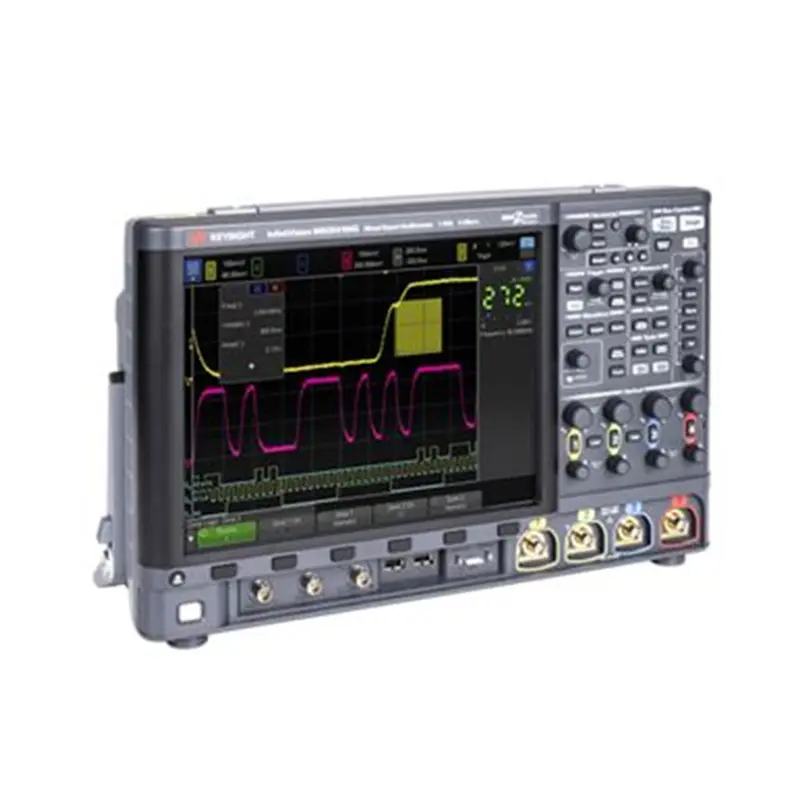

The Keysight MSOX4154G is a mixed-signal oscilloscope belonging to the 4000 X Series, featuring a 1.5 GHz bandwidth and a configuration of 4 analog channels plus 16 digital channels to meet multi-signal synchronous testing requirements. Equipped with a 12.1-inch capacitive touchscreen, this oscilloscope offers intuitive and convenient operation for effortless signal viewing. Its exclusive InfiniiScan Zone touch trigger technology isolates target signals within seconds, while an ultra-high waveform update rate of 1,000,000 wfms/s reveals richer signal details.

Send Inquiry

Product Description

Product Overview

The 4000 X-Series MSO X4154G is a mixed-signal oscilloscope (MSO) designed for mid-to-high-end testing scenarios. Its core strengths lie in "high bandwidth, multi-channel capability, exceptional usability, and scalability," integrating advanced technical expertise in oscilloscope technology with an innovative user experience.

Core Positioning and Product Features

As the flagship model of the 4000 X Series, the MSO X4154G addresses the challenges of mixed-signal testing ("analog + digital"). Built on a foundation of 1.5 GHz bandwidth and a "4 analog + 16 digital" channel configuration, it achieves a balanced blend of performance, functionality, and operational efficiency.

Key Performance & Core Features

Signal Capture and Analysis Capabilities

Bandwidth and Channel Configuration: 1.5 GHz analog bandwidth precisely captures high-frequency signals (e.g., high-speed buses, RF module outputs). Four analog channels support differential/single-ended signal measurement, paired with 16 digital channels (logic analyzer functionality) to enable 20-channel synchronous data acquisition. This effortlessly reconstructs the complete timing relationship of "analog signal trigger + digital logic response."
High Refresh Rate and Storage Depth: A 1,000,000 wfms/s (waveforms per second) update rate, combined with the InfiniiScan intelligent triggering system, enables rapid capture of transient faults (e.g., glitches, overshoots). Standard 4 Mpts memory depth and MegaZoom IV intelligent storage technology enable extended recording of signal details. Combined with segmented storage, it efficiently captures intermittent signals.
Measurement Accuracy Assurance: Equipped with a high-resolution ADC and low-noise front-end circuitry, it maintains low baseline noise even at the 2 mV/div high-sensitivity setting. Combined with built-in waveform and measurement histogram functions, it quantifies statistical characteristics of parameters like signal jitter and amplitude deviation, meeting high-precision testing requirements.

Human-Machine Interaction & Operational Efficiency

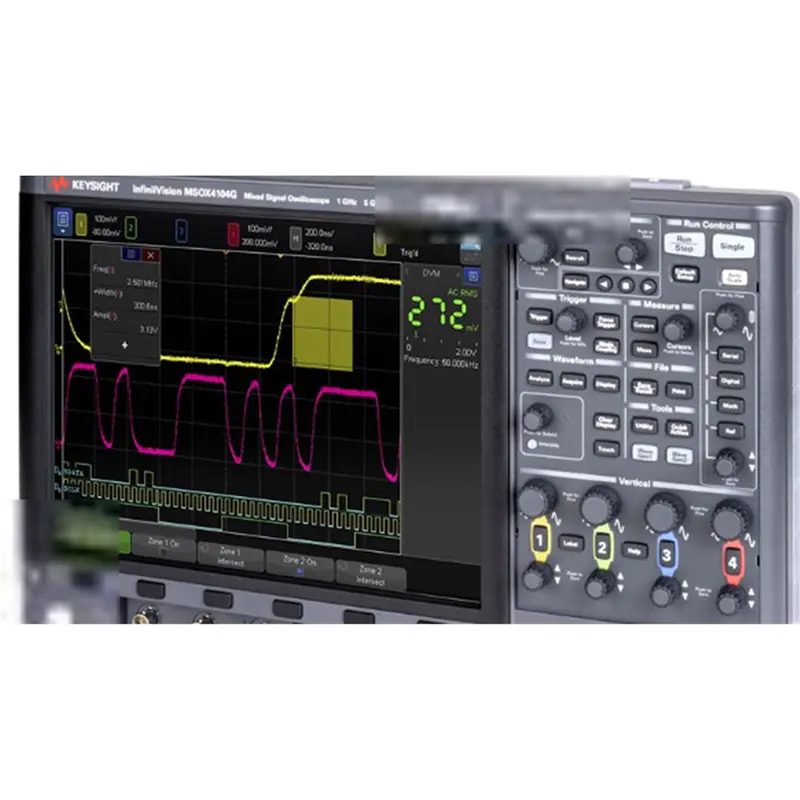

Large-Screen Touch Experience: Features a 12.1-inch capacitive touchscreen—one of the largest displays in its class—supporting multi-finger gestures like pinch-to-zoom and drag-and-drop for intuitive signal observation. The screen integrates a localized interface (supporting over ten languages including English, Chinese, Japanese, and German). Combined with front-panel shortcut keys and an embedded help system, it enables quick mastery even for beginners.

Functional Adaptability

Multi-scenario tool: Built-in frequency response analysis rapidly evaluates amplitude-frequency characteristics of components like filters and amplifiers. Combined with serial protocol analysis, it thoroughly troubleshoots bus communication faults in embedded systems and communication modules, supporting end-to-end needs from basic circuit testing to complex system debugging.

Typical Application Scenarios

Embedded System Development Communication Module Testing Power Supplies and Power Electronics Production Quality Control and Maintenance

Specifications

Category	Specifications
Instrument Model	4000 X-Series MSOX4154G
Core Performance	• Bandwidth: 1.5 GHz • Analog Channels: 4 • Digital Channels: 16 (total 20 channels with analog + digital)
Display & User Interface	• Display Size: 12.1-inch • Touch Screen: Capacitive touch screen • Localization: Interface, front panel overlay, and built-in help available in English, Chinese (simplified/traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish
Triggering	• Exclusive Triggering: InfiniiScan Zone touch triggering (enables signal isolation in seconds)
Waveform Capture	• Update Rate: 1,000,000 waveforms per second (wfms/s) • Memory: 4 Mpts memory; Standard segmented memory; MegaZoom IV smart memory technology
Upgradable Capabilities	Optional upgrades: Dual-channel 20 MHz arbitrary WaveGen, 3-digit DVM, serial trigger and analysis, mask testing
Included Accessories	• 1 x Embedded Software Package (D4000GENB) • 4 x N2894A 700 MHz passive probes (10:1 attenuation, 1 per analog channel) • 1 x N2756-60001 16-digital-channel MSO cable • Localized power cord • Front panel cover • Documentation CD (localized user’s guide, service guide, programmer’s manual)
Software Features	Waveform and measurement histograms; Frequency response analysis
Support & Warranty	• Technical Support: Included standard support package • Warranty: 3-year warranty (90 days for unserialized accessories like passive probes) • Calibration: Certificate of Calibration included; 2-year calibration interval

Models & Delivery Information

Models

4000 X-Series MSOX4154G InfiniiVision Oscilloscope, mixed signal, 4+16-channel, 1.5 GHz, w/ Wavegen

Delivery & Physical Specifications

Dimension: 454mm x 275mm x 156mm
Weight: 5kg
Battery parameters: Without battery
Delivery Information: Typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals & Resources

4000 X-Series MSOX4154G Mixed Signal Oscilloscope datasheet.pdf

Download Datasheet

Frequently Asked Questions (FAQ)

What is the channel configuration of the MSOX4154G?

The MSOX4154G offers a mixed-signal configuration featuring 4 analog channels and 16 digital channels, enabling synchronous data acquisition across a total of 20 channels.

What is the maximum waveform update rate of this oscilloscope?

It features an update rate of up to 1,000,000 waveforms per second (wfms/s), which allows for the rapid capture of transient faults, glitches, and anomalies.

What display and interface features does the MSOX4154G provide?

It is equipped with a 12.1-inch capacitive touchscreen supporting multi-finger gestures like pinch-to-zoom. The interface, front panel overlay, and built-in help system support over ten localized languages.

What accessories are included standard with the instrument?

Standard accessories include the D4000GENB embedded software package, 4 x N2894A 700 MHz passive probes (10:1 attenuation), 1 x N2756-60001 16-digital-channel MSO cable, a localized power cord, a front panel cover, and a documentation CD.

What are the dimensions and weight of the MSOX4154G?

The physical dimensions of the instrument are 454mm x 275mm x 156mm, and it weighs approximately 5kg. It operates without an internal battery.

What calibration interval is recommended for this oscilloscope?

The MSOX4154G comes with a Certificate of Calibration, and the manufacturer recommends a standard calibration interval of 2 years.
