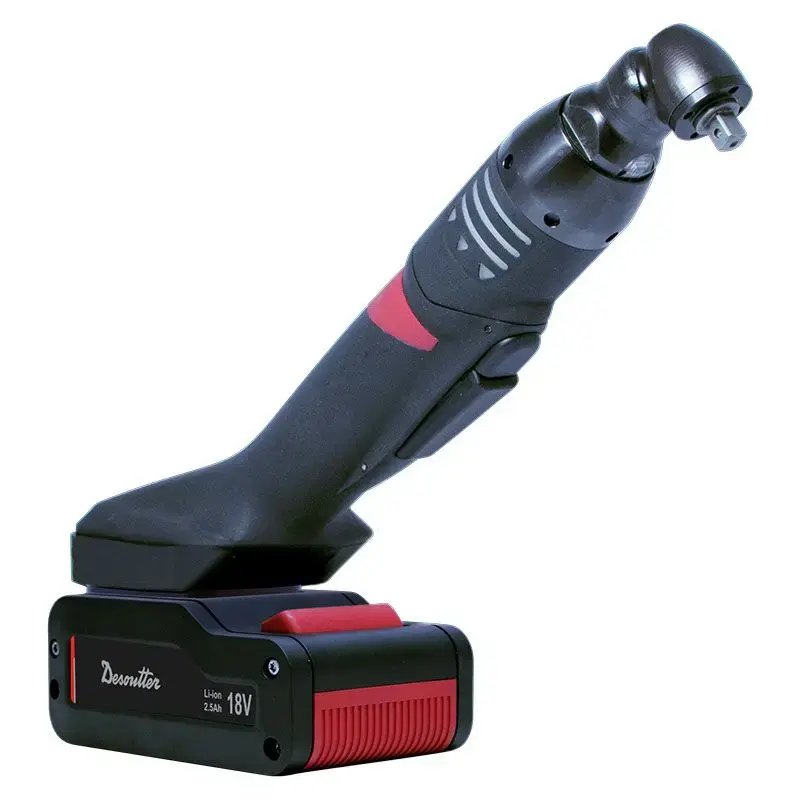

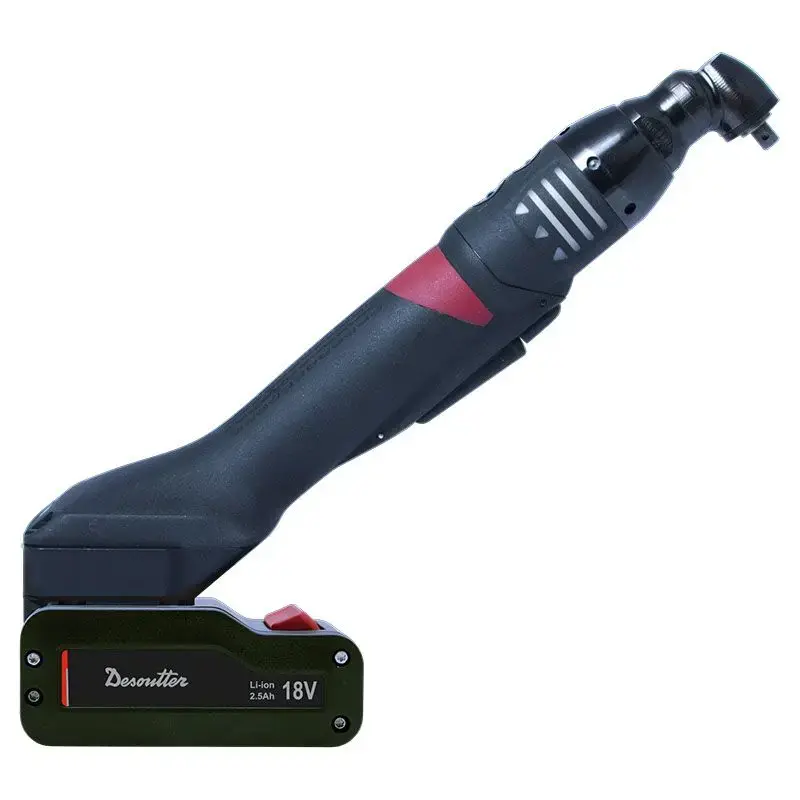

EABS12-1100-10S is a compact cordless sensor-equipped socket wrench. Below is an overview of its specifications, outstanding features, and applications:
Length under 33cm, lightweight construction, and dual battery positions deliver excellent balance. Ensures operator comfort and productivity, enabling effortless operation even in confined spaces.
Integrated dual strain gauges and high-frequency angle sensors provide exceptional accuracy and repeatability. Torque and angle control guarantee consistent fastening quality, reducing potential warranty costs.
Selectable OK/NOK reporting or full traceability. Supports standalone mode or fully secure wireless communication to meet diverse application requirements.
RFID pairing with the CONNECT smart control hub enables swift tool swapping, maximizing equipment uptime.
Ideal for hard-to-reach or space-constrained fastening applications, such as bolt tightening in confined areas within automotive, aerospace, and other industries.
| Technical description | |
| Torque | |
| Max torque in forward | 12 Nm |
| Min torque in forward | 4 Nm |
| Recommended Torque | 10 Nm |
| Speed | |
| Free Speed | 1100 rpm |
| Free speed 18V Max | 1100 rpm |
| Free speed 36V Max | 1100 rpm |
| Design and functions | |
| Driving system | Continuous |
| Output drive size (in) | 3/8 |
| Output drive type | Sq |
| Starting system | Trigger |
| Tool type | Angle head |
| Power | |
| Battery type | Lithium-ion |
| Battery voltage | 18 V, 36 V |
| Energy | |
| Energy type | Battery |
| Size and weight | |

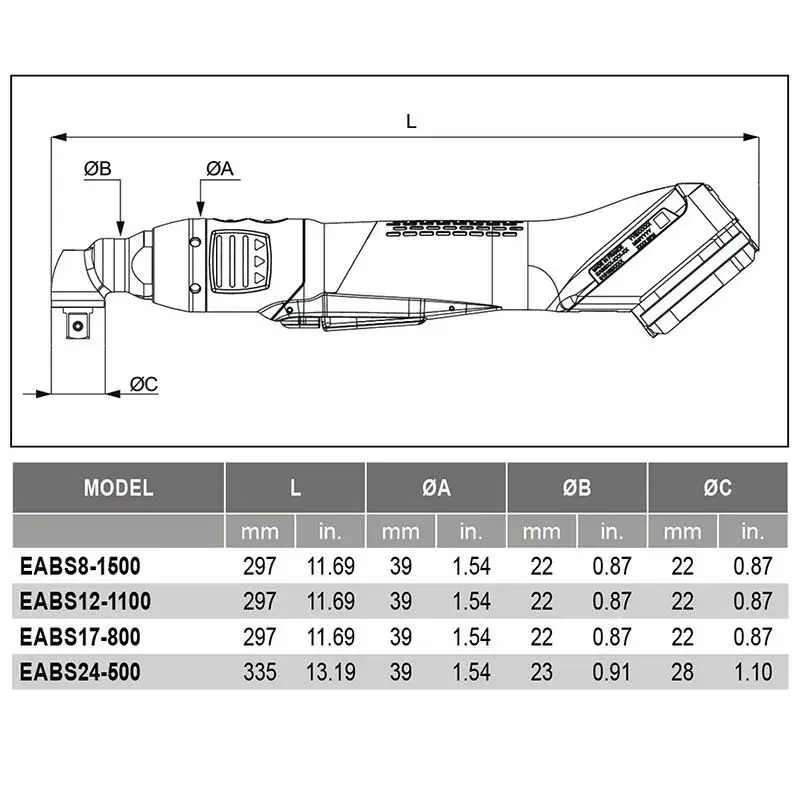

| Height (H) | 297 mm |
| Weight | 1 kg |
Model EABS12-1100-10S: Compact, wireless, transducerized angle-head nutrunner [4 - 12Nm | Sq 3/8" output].
Delivery information typically includes structured delivery lead times, optimized shipping routes, and shock-absorbent packaging. Details can vary based on individual seller capabilities and physical coordinates.
The wrench features a torque working range of 4 to 12 Nm (2.95 to 8.85 ft.lb). The manufacturer recommended optimal setting is 10 Nm (7.4 ft.lb).
Yes, this wireless transducerized angle-head nutrunner is compatible with both 18V and 36V Lithium-ion batteries to match different performance requirements.
This tool is engineered with a standard 3/8-inch Square Drive output, facilitating quick compatibility with a wide range of socket systems.
Yes, it features dual-band 2.4GHz and 5GHz secure wireless communication capabilities. This allows operators to run the tool either in standalone mode or fully linked with traceability hubs.
The EABS12-1100-10S weighs approximately 1kg (2.2lb) excluding the battery pack, with a physical height profile of 297mm, optimizing it for space-restricted assembly tasks.
