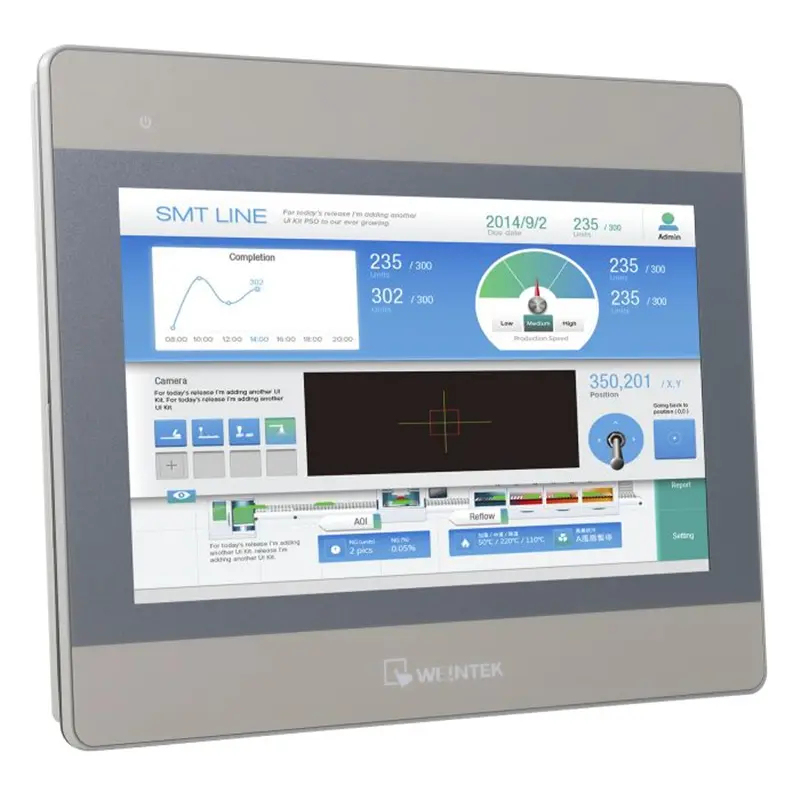

The MT8102iE is an industrial-grade Human-Machine Interface (HMI) tailored for automated control scenarios. It integrates a 10.1-inch high-performance display, efficient data processing capabilities, and versatile connectivity options, making it widely applicable in sectors such as machinery manufacturing, industrial monitoring, and robotics control. Below is a detailed overview categorized by core attributes:
1. Core Hardware Specifications
The hardware configuration of the MT8102iE prioritizes industrial reliability and operational efficiency, with key parameters as follows:
- Display Performance: Equipped with a 10.1-inch TFT resistive touchscreen featuring a resolution of 1024×600 and 16.7 million display colors, delivering sharp image quality. It has a brightness of 350 cd/㎡ and a contrast ratio of 500:1, ensuring clear visibility even in bright industrial environments. The LED backlight offers a lifespan exceeding 50,000 hours, minimizing maintenance requirements.
- Processor & Storage: Powered by a 32-bit RISC Cortex-A8 processor running at 600 MHz, enabling smooth execution of complex control logic and rapid response to touch operations. It comes with 128 MB of RAM and 128 MB of flash memory to store project files and operational data, though it lacks expandable memory slots.
- Physical Dimensions: The device measures 271 × 213 × 36.4 mm, with a cutout size of 260 × 202 mm, facilitating seamless integration into control cabinets. It weighs approximately 3 kg, making it easy to install.
2. Interface & Connectivity
The MT8102iE offers diverse connectivity options to interface with PLCs, sensors, and other industrial equipment:
- Communication Ports: Includes 1 Ethernet port for networked data transmission and 3 serial ports (COM ports). A notable constraint is that if COM3 is set to RS-232 mode, only the Tx and RX pins of COM1’s RS-232 function, with RTS/CTS signals unavailable.
- USB Interface: Features 1 USB 2.0 port for tasks such as project downloading, data logging, and connecting external devices.
3. Software & Functional Features
- Programming Environment: Utilizes EasyBuilder Pro software, which provides an intuitive drag-and-drop interface for creating visualization projects. It supports various control logic configurations and data monitoring functions, reducing development complexity.
- Operating System: Employs the Linux OS, known for its stability and resistance to crashes, ensuring uninterrupted operation in harsh industrial settings.
- Data Processing: Capable of real-time data acquisition and visualization, supporting functions like alarm logging, trend chart display, and historical data storage to meet industrial monitoring needs.
Environmental Adaptability & Certification
- Operating Conditions: Operates within a temperature range of 0–50°C (32–122°F) and can be stored at -20–60°C (-4–140°F). It is designed to withstand typical industrial temperature fluctuations, though specific humidity resistance parameters are unspecified in available data.
- Certifications: Complies with CE and RoHS standards. For markets requiring UL certification, the specialized model MT8102iEU is available to meet regional safety requirements.
Application Scenarios & Advantages
Typical Applications: Widely used in automation systems for machinery manufacturing, textile equipment, robotics control, and logistics management. It enables operators to monitor equipment status, adjust parameters, and troubleshoot faults in real time.
Product Advantages:
- Cost-effective balance of performance and price, suitable for medium-scale automation projects.
- Long backlight lifespan and industrial-grade enclosure design ensure durability in harsh environments.
- Versatile communication interfaces support integration with mainstream industrial controllers (e.g., Siemens, Mitsubishi PLCs).
Frequently Asked Questions (FAQ)
What is the screen resolution of the MT8102iE HMI?
The MT8102iE HMI features a high-performance 10.1-inch TFT resistive touchscreen with a sharp resolution of 1024 x 600 pixels and support for 16.7 million display colors.
What software is used for programming the MT8102iE?
The device utilizes EasyBuilder Pro software (version V5.03.02 or later), providing developers with an intuitive drag-and-drop environment to build industrial visualization projects.
What are the power supply requirements for this HMI?
The HMI operates on a standard input power of 24±20% VDC. It has built-in power isolation with a power consumption of approximately 650mA at 24VDC.
Does the MT8102iE support SD card memory expansion?
No, the MT8102iE does not have an SD card slot. It is designed with 128 MB of flash memory and 128 MB of RAM for onboard data and project storage.
What is the operating temperature range for the MT8102iE?
The MT8102iE operates reliably within a temperature range of 0°C to 50°C (32°F to 122°F), and it can be safely stored at temperatures ranging from -20°C to 60°C (-4°F to 140°F).
Is the front panel of the MT8102iE dust and water-resistant?
Yes, the front panel is NEMA4 / IP65 compliant, providing effective protection against dust and water ingress in typical industrial environments.
