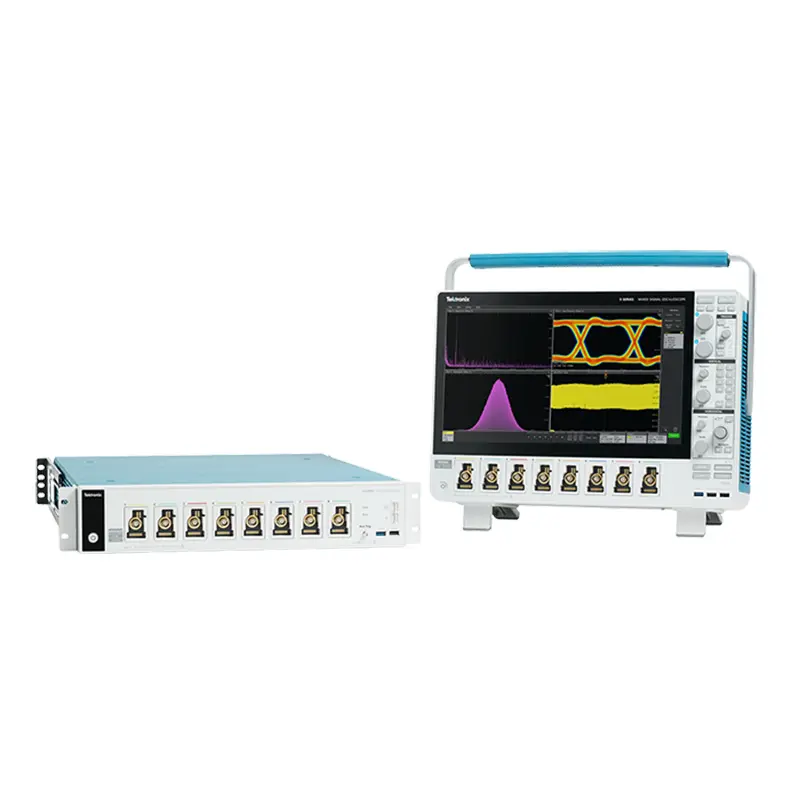

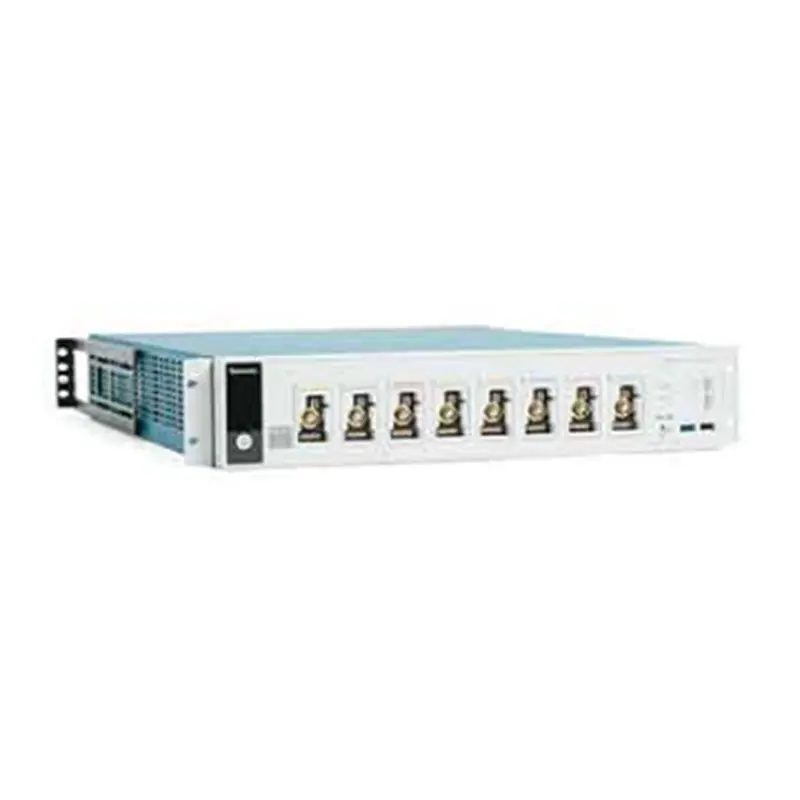

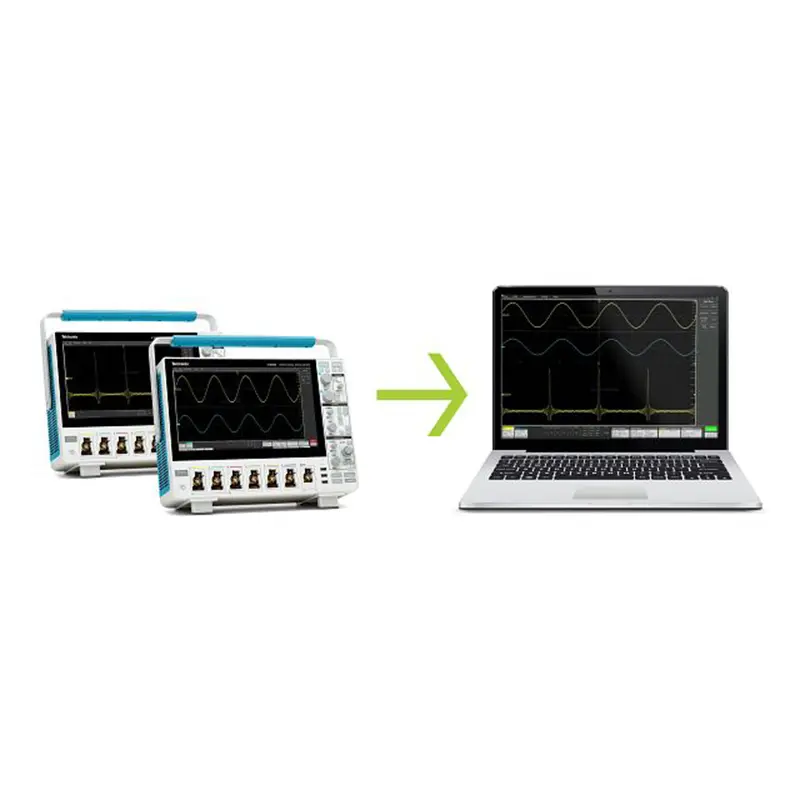

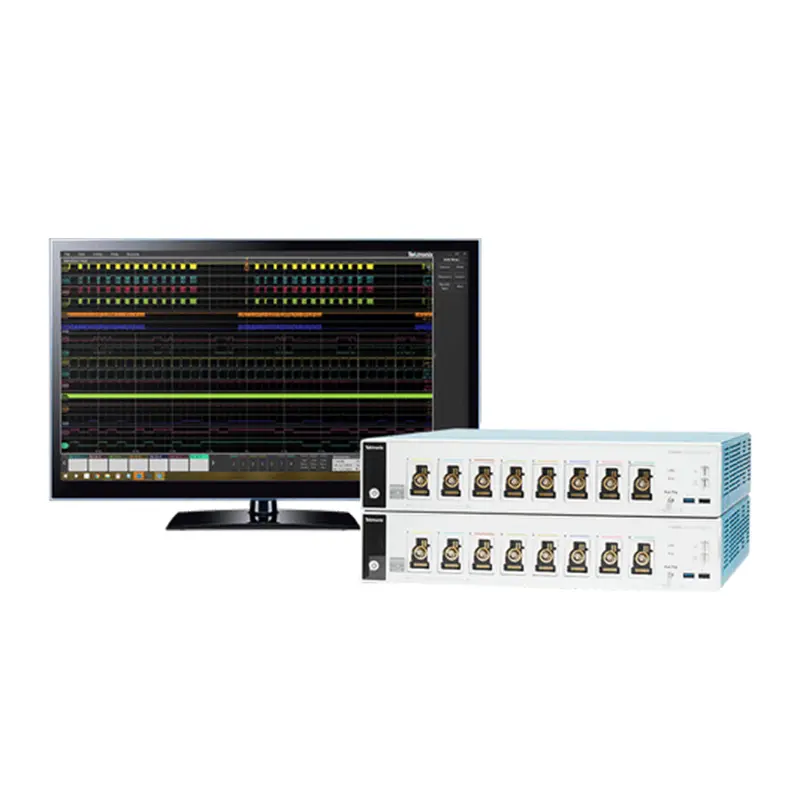

The 5 Series MSO benchtop platform serves as the foundation for the 5 Series MSO Low Profile. There are four, six, or eight FlexChannel inputs on the benchtop 5 Series MSO, which allow you to measure a single analog channel waveform, a spectral view of the analog input, simultaneous analog and spectral views with independent acquisition controls for each domain, or eight digital logic inputs (with TLP058 logic probe). It also boasts the most innovative pinch-swipe-zoom touchscreen user interface in the industry. The most difficult problems of today and tomorrow can be handled by the 5 Series MSO. It raises the bar for analysis, performance, and user experience in general. The low profile device has FlexChannel inputs, an optional arbitrary/function generator output, and an integrated digital voltmeter, just like the benchtop 5 Series MSO.
| FlexChannel inputs | 8 |
| Maximum analog channels | 8 |
| Maximum digital channels (with optional logic probes) | 64 |
| Bandwidth (calculated rise time) | 500 MHz (800 ps), 1 GHz (400 ps) |
| DC Gain Accuracy |
50 Ω: ±1.0%, (±2.0% at ≤ 1 mV/div), ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div), ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) |
| ADC Resolution | 12 bits |
| Vertical Resolution |
8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res) |
| Sample Rate | 6.25 GS/s on all analog / digital channels (160 ps resolution) |
| Record Length | Up to 500 Mpoints on all analog / digital channels |
| Waveform Capture Rate | >500,000 wfms/s |
| Arbitrary/Function Generator (opt.) | 13 predefined waveform types with up to 50 MHz output |
| DVM | 4-digit DVM (free with product registration) |
| Trigger Frequency Counter | 8-digit frequency counter (free with product registration) |
| Model | Description |
| MSO58LP BW-1000RL | Low Profile Mixed Signal Oscilloscope; 1 GHz bandwidth, (8) FlexChannels with 125 M record length |
| MSO58LPGSA BW-1000RL | Low Profile Mixed Signal Oscilloscope; 1 GHz bandwidth, (8) FlexChannels with 125 M record length; Trade Agreements Act (TAA) compliant |
| MSO58LP BW-500 | Low Profile Mixed Signal Oscilloscope; 500 MHz bandwidth, (8) FlexChannels |
| Height | 3.44 in (87.3 mm) |
| Width | 17.01 in (432 mm) |
| Depth | 23.85 in (605.7 mm) |

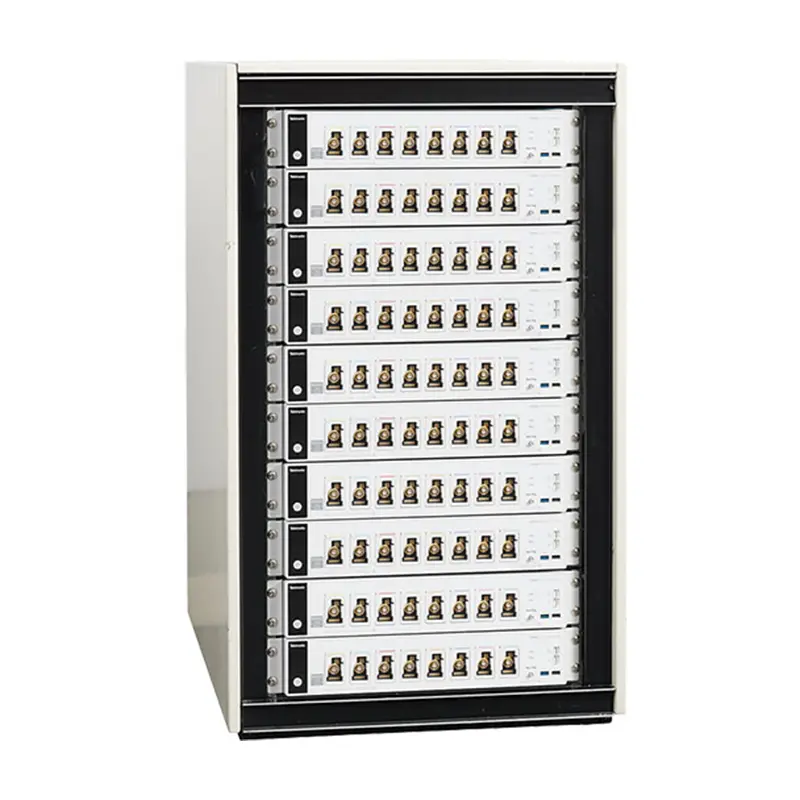

| Rack Compatibility | Fits rack depths from 24 inches to 32 inches |
| Weight | 25.5 lbs (11.6 kg) |
