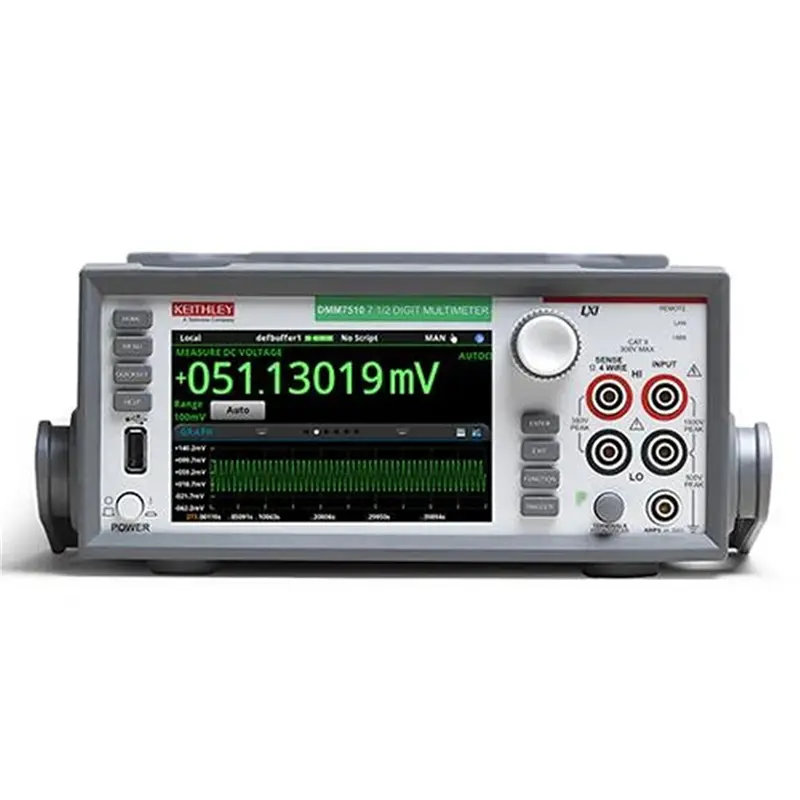

The Tektronix DMM7510-RACK is a high-performance 7.5-digit graphical sampling multimeter. As the rack-mount version of the DMM7510, it is specifically designed to meet space-saving and integration requirements in automated test systems, research laboratories, and production environments. It combines ultra-precise measurement capabilities with advanced sampling and visualization functions, making it ideal for applications demanding both measurement accuracy and in-depth analysis of signal behavior.

The DMM7510-RACK achieves industry-leading accuracy with 7.5-digit resolution, enabling measurement of minute signals and tight tolerances. It supports comprehensive standard multimeter functions, including:

Its core differentiator is graphical sampling capability: capturing and visualizing time-series measurement data through sampling modes transforms static multimeter readings into dynamic waveforms. This enables users to identify transient events, drifts, or trends that standard digital multimeters may miss — critical for applications like component characterization, power supply stability testing, or materials science research.

• Rack-Mount Design: Optimized for 19-inch rack integration (typical 3U height), saving bench space and enabling seamless integration into automated test racks, production lines, or multi-instrument lab environments.

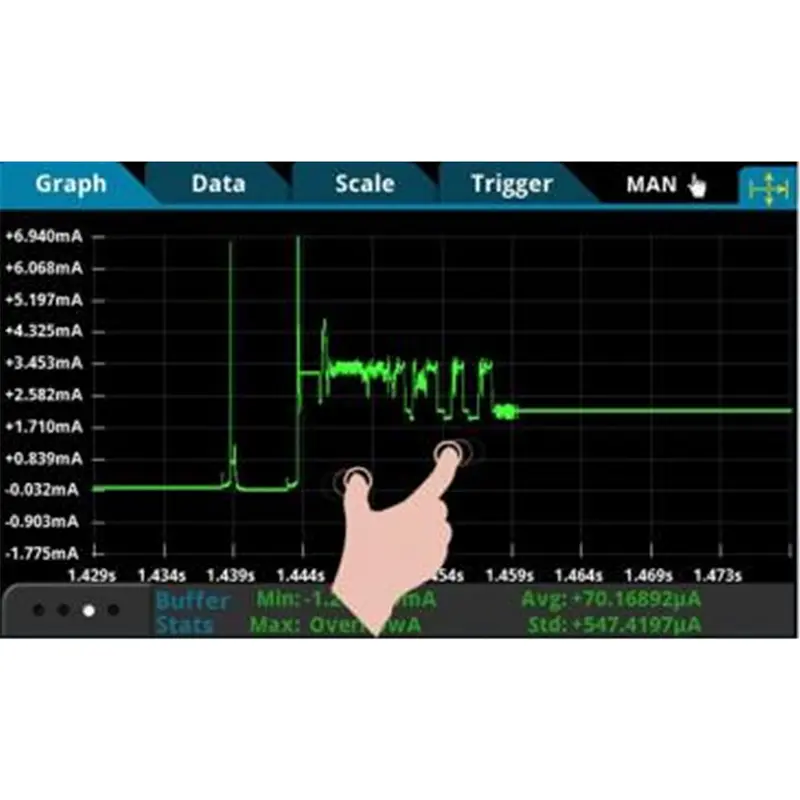

• Intuitive Interface: Features a graphical display presenting real-time measurements, sampled waveforms, and statistical data (e.g., min/max, average, standard deviation) in an easy-to-read format, requiring no external software for basic analysis.
• High-Speed Sampling: Supports rapid sampling rates to capture transient signals, with configurable sampling intervals and record lengths for flexible data acquisition.

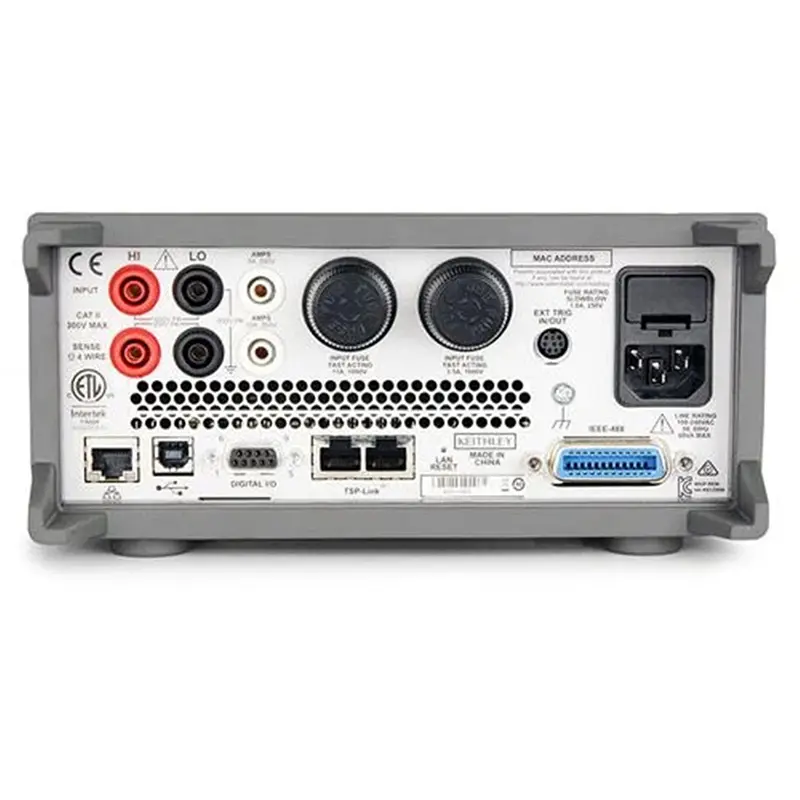

• Connectivity and Automation: Includes standard interfaces (USB, Ethernet/LAN, GPIB) for remote control, data logging, and integration with Tektronix OpenChoice software or third-party test automation platforms (e.g., LabVIEW).
• Reliability: Manufactured to precision instrument standards, ensuring long-term performance stability for extended testing and calibration applications.

The DMM7510-RACK is designed for users prioritizing both precision and scalability:

• Automated Test Equipment (ATE): Rack-mountable design integrates into production or validation test racks, meeting high-volume component testing demands.
• R&D: Precision measurement and waveform sampling capabilities support materials science, electronics development, and low-power device characterization.
• Calibration Labs: High resolution and stability make it ideal for calibrating low-accuracy instruments or verifying component specifications.
• Industrial Quality Control: Ensures product quality through real-time visual monitoring of critical parameters (e.g., power module voltage drift).
