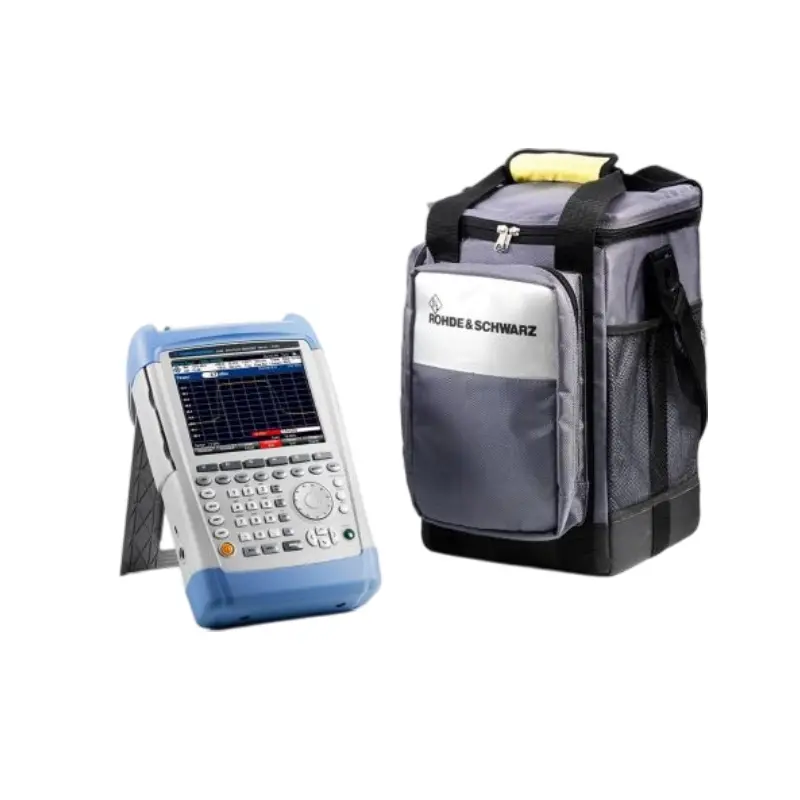

The Rohde & Schwarz R&S®FSH4 is a compact, high-performance handheld spectrum analyzer designed for field testing, on-site maintenance, and mobile measurement scenarios. It masterfully balances portability with professional-grade functionality, making it the ideal solution for telecom, broadcasting, aerospace, and industrial electronics applications.
Frequency Range: 9 kHz to 4 GHz (covering key bands for cellular communication, Wi-Fi, Bluetooth, and industrial radio systems).
Sensitivity: Typical -130 dBm (at 1 GHz, 10 kHz resolution bandwidth/RBW, preamplifier on) for capturing weak signals in noisy environments.
Resolution Bandwidth (RBW): 1 Hz to 1 MHz (manual or automatic), supporting precise analysis of both narrowband and wideband signals.
Spectrum Analysis: Real-time display with sweep times from 10 µs to 100 s and multiple trace modes (max hold, min hold, average).
Power Measurement: Integrated peak, average, and channel power functions compliant with telecom standards like LTE/5G NR.
Distortion Testing: Measures harmonic distortion, spurious emissions, and adjacent channel leakage ratio (ACLR).
Vector Network Analysis: Optional 2-port VNA capabilities (with R&S®FSH-Z10) for reflection and transmission measurements.
Rugged Design: IP54-rated enclosure protecting against dust and water splash. Complies with MIL-STD-810H standards for shock and vibration resistance.
Compact Form Factor: Dimensions of 240 mm × 130 mm × 65 mm and lightweight at only ~1.5 kg (including battery).

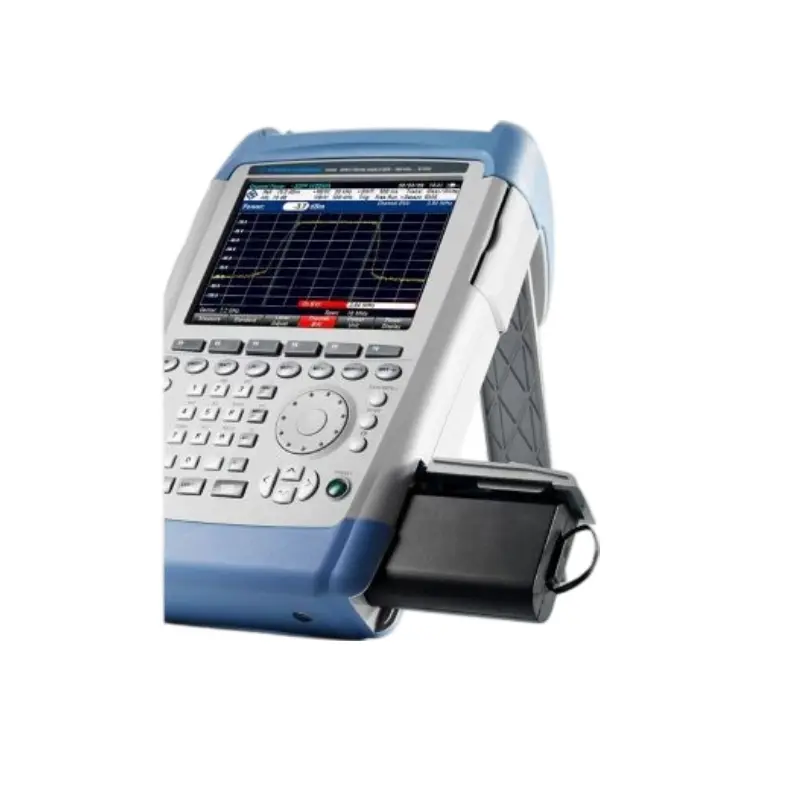

Battery Power: Up to 4 hours of continuous operation using a rechargeable lithium-ion battery.

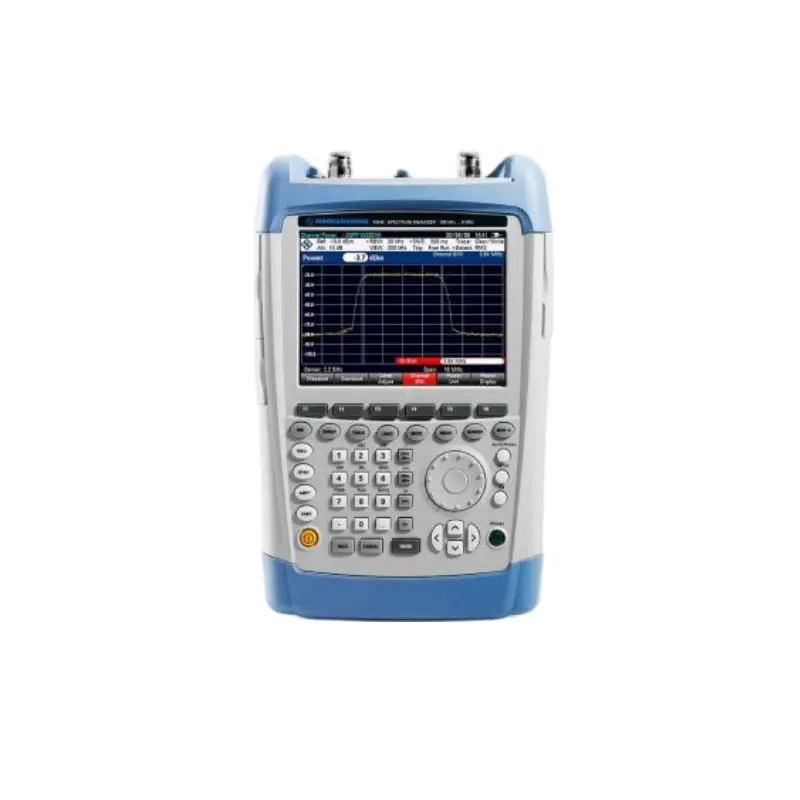

The analyzer features a 5.7-inch color touchscreen (640 × 480 pixels) with intuitive menus and tactile hardware keys, allowing ease of use even when operating with gloved hands. Connectivity is supported via USB 2.0 and LAN (LXI-compliant) for swift data transfers and remote operation, alongside optional Bluetooth support.
| Specification Category | Detailed Parameters |
|---|---|
| Model | Rohde & Schwarz R&S®FSH4 |
| Instrument Type | Handheld Spectrum Analyzer (optional Vector Network Analyzer function with R&S®FSH-Z10) |
| Frequency Range | 9 kHz to 4 GHz (Sweep range: 0 Hz to full frequency range) |
| Frequency Accuracy | ±(1 × 10⁻⁶ × set frequency + 1 Hz) at 23 °C ± 5 °C; ±(3 × 10⁻⁶ × set frequency + 1 Hz) over operating temperature range (-10 °C to +55 °C) |
| Frequency Resolution | 1 Hz |
| Sensitivity (Typical) |
• ≤ -130 dBm at 1 GHz, 10 kHz RBW, preamplifier on • ≤ -145 dBm at 1 GHz, 1 MHz RBW, preamplifier on • ≤ -128 dBm at 4 GHz, 10 kHz RBW, preamplifier on |
| Resolution Bandwidth (RBW) | 1 Hz to 1 MHz (adjustable in 1-3-10 steps); VBW: 1 Hz to 1 MHz |
| Dynamic Range |
• TOI: ≥ +10 dBm (at 1 GHz, 10 kHz RBW) • SFDR: ≥ 70 dB (at 1 GHz, 10 kHz RBW, input level -60 dBm) |
| Sweep Time | Zero span: 10 µs to 100 s; Full span (4 GHz): 10 ms to 100 s |
| Measurement Functions | Spectrum analysis, power measurements (ACLR, OBW), distortion tracking, and optional VNA S-parameter measurements (S11, S21) |
| Display | 5.7-inch color TFT touchscreen (640 × 480 pixels) |

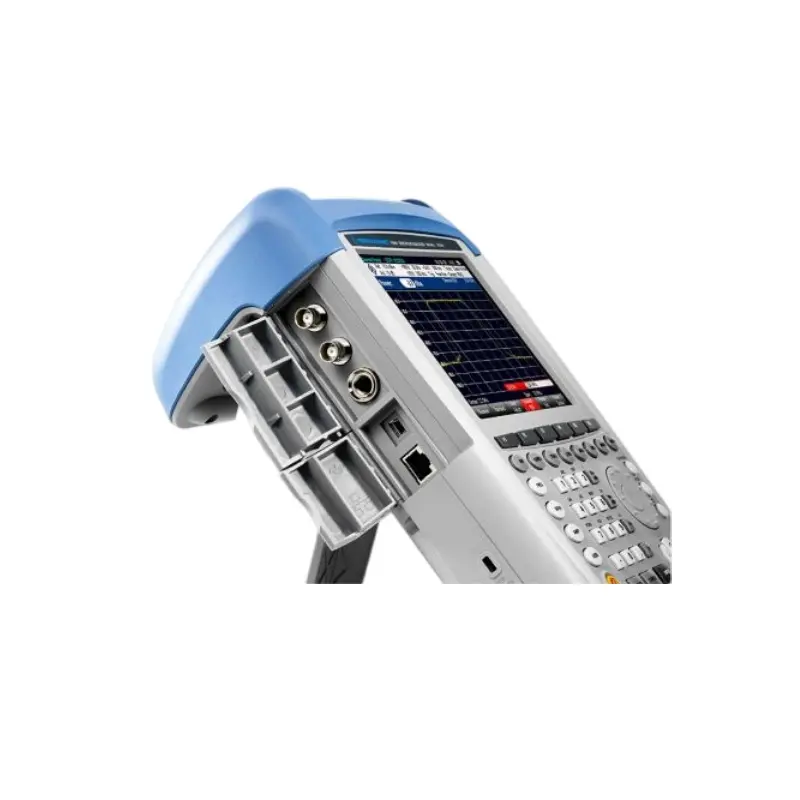

| Connectivity | Standard: USB 2.0 Host/Device, LAN (10/100 Base-T); Optional: Bluetooth |
| Power Supply | Rechargeable lithium-ion battery (7.4 V, 5200 mAh), up to 4 hours runtime. 100–240 V AC adapter included. |
| Safety & Durability | IEC 61010-1 CAT II 1000 V safety rating; IP54 protection class; MIL-STD-810H environmental compliance. |
| Dimensions & Weight | 240 mm × 130 mm × 65 mm; Approximately 1.5 kg (including battery) |
| Optional Accessories | R&S®FSH-Z10 VNA upgrade, R&S®FSH-Z20 Preselector, R&S®FSH-B2 high-capacity battery, carrying cases, and calibration kits. |
Physical Dimensions: 240 mm × 130 mm × 65 mm
Weight: 3kg (Packaged weight)
Battery Details: Securely shipped equipped with an internal lithium-ion battery.
Note: Shipping timelines, transit methods, and protective packaging configurations are subject to location parameters and individual carrier arrangements.
