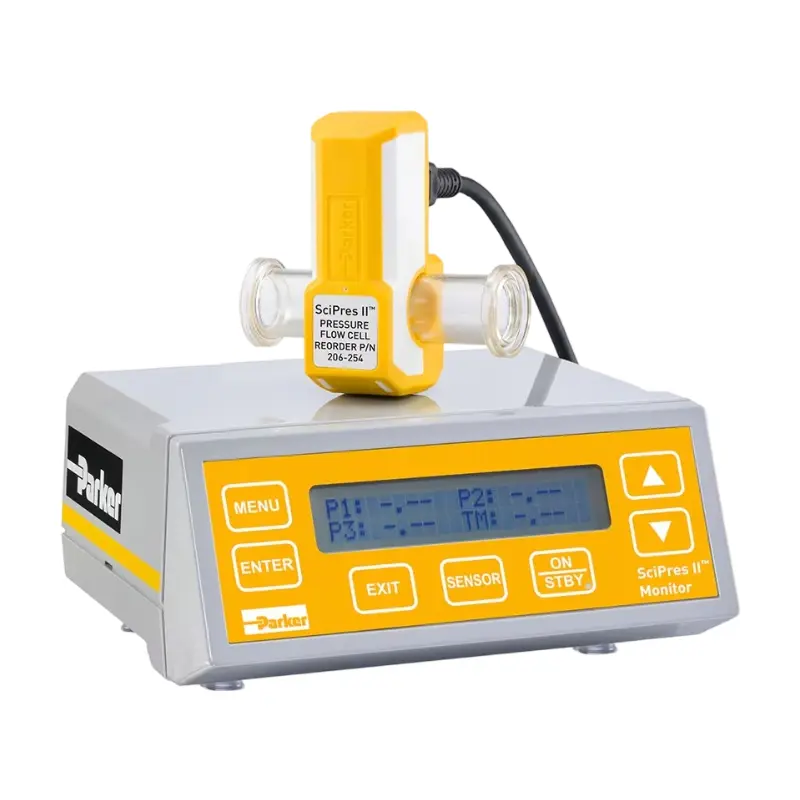

The Parker SciPres II Series is a patented single-use pressure sensing and monitoring system tailored for the biopharmaceutical sector. It integrates functions of pressure monitoring, display, and documentation, and is widely applied in key bioprocesses such as filtration and chromatography due to its high compatibility and reliable performance.
Each sensor is a pre-calibrated single-use product with a unique ID. Calibration and identity data are stored on the sensor chip, which is NIST traceable and applicable to GMP scenarios, avoiding cross-contamination risks.
Can be used with SciPres II sensor monitors, next-generation laboratory pumps, and SciLog bioprocessing NFF & TFF systems. Five scalable sizes are available (luer, 3/8" hose barb, 1/2" hose barb, etc.).
Sensors are verified to withstand gamma irradiation, autoclaving, and sodium hydroxide sterilization. The gamma-irradiated version is suitable for vacuum applications.
Wetted materials contain no animal-derived components. Compliant with USP Class VI, REACH, RoHS, WEEE, FDA 21 CFR Part 11, and Eudralex Annex 11.
Monitors and controls transmembrane pressure (TMP) to optimize product yield and prevent excessive membrane pressure to protect the filter.
Maintains specified differential pressure in virus filtration, final sterile filtration, and mycoplasma removal processes of cell culture medium.
Measures cross-column pressure to detect blockages in time, preventing damage to columns or resins.
Uses pressure data to reflect centrifuge throughput and protects system integrity, preventing exposure to harmful substances.
| Technical Specifications | |
|---|---|
| Brand | SciLog |
| Division | Bioscience and Water Filtration Division |
| Industry | Pharmaceuticals |
| Application | Pressure Sensing |
| Product Type | Single-Use Sensors and Monitors |
| Technology | Condition Monitoring |
| Product Series | SciPres II |
| Operating Pressure | -10 to 60 psi, -0.69 to 4.14 bar (gamma irradiated version to be used for vacuum applications) |
| Operating Temperature | 0 to 60 °C (Sensors) |
| Accuracy | ± 3% from 0 psi – 55 psi | ± 5% from 55 psi – 60 psi |
| Materials of Construction |
Sensor Transfer Tube: Medical Grade Polysulfone Sensor Gasket: Silicone Monitor: Molded Plastic and Stainless Steel |
| Specifications Met | Sensors: USP Class VI, REACH, RoHS, WEEE | Monitor: CE, RoHS, WEEE, Intertek |
| Flow Rate | Up to 60 L/min (sensors) |
| Connection Type | Luer, 3/8" Barb, 1/2" Barb, 3/4" Tri-Clamp, 1" Tri-Clamp 'Ladish' (sensors) |
| Options | Sensors: Gamma Irradiated or Non-Gamma Irradiated |
| Models & Benefits | |
|---|---|
| Models | Parker Single-Use Biopharm Pressure Sensor & Monitor SciPres II Series |
| Features and Benefits |
|
