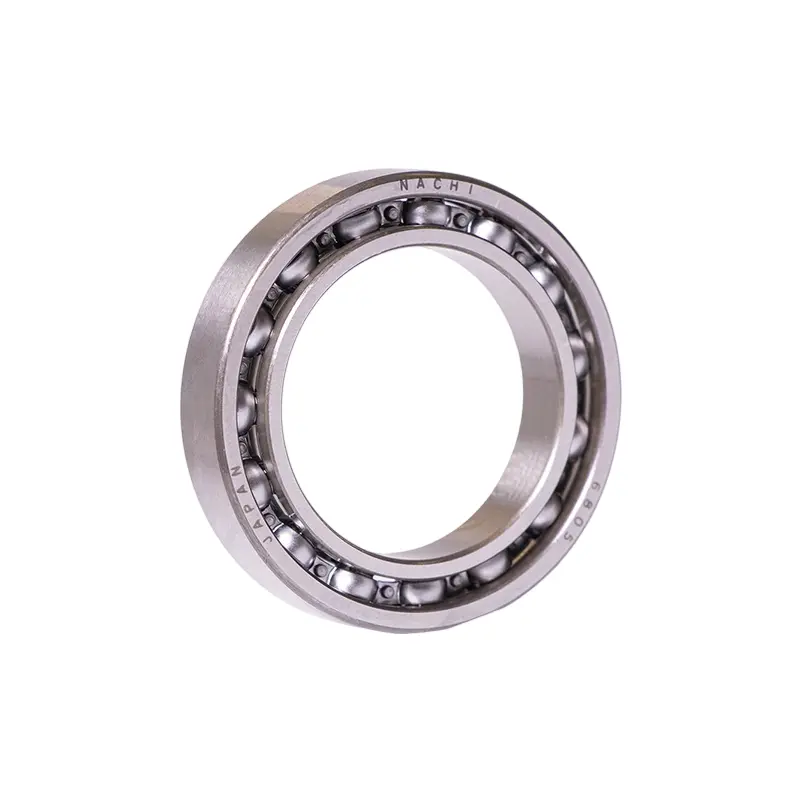

Product Overview
Deep Groove Ball Bearings are iconic rolling bearing products favored globally for their simple structure, outstanding performance, and versatile applications in various industries.
⚙️
Dual Load-Bearing Capacity
Adopts a single-row deep-groove ball design, primarily bearing radial loads. Can endure substantial axial and composite loads when internal clearance is increased.
⚡
High-Efficiency Operation
Circular arc raceways minimize friction, enabling extremely high rotational speeds (e.g., up to 31,000 r/min with oil lubrication).
🌡️
Temperature Resilient
Works stably within a range of -30°C to +120°C, adapting to most demanding working conditions.
Technological Advancement
The new "HPS" series optimizes contact geometry, reducing friction by 35% and noise by 50% while extending grease life. High-quality materials like SUJ2 special steel guarantee wear resistance and operational accuracy.
Technical Specifications
| Specifications |
6204 (Open Type) |
6204ZZEC3 (Double Shielded) |
6204-2NSE9C3 (Double Sealed) |
| Inner Diameter |
20 mm |
20 mm |
20 mm |
| Outer Diameter |
47 mm |
47 mm |
47 mm |
| Width |
14 mm |
14 mm |
14 mm |
| Dynamic Load Rating |
12800 N |
12800 N |
12800 N |
| Static Load Rating |
6600 N |
6600 N |
6600 N |
| Limiting Speed (Grease) |
14000 rpm |
14000 rpm |
11000 rpm |
| Key Configurations |
Open type; Chrome steel |
Double shielded; C3 clearance |
Double NBR seals; C3 clearance |
Model 6204 Highlights
✓ Longer Life
Original seal design prevents contamination and grease leakage.
✓ Quiet Operation
Enhanced component precision ensures smooth and silent performance.
✓ Low Torque
Improved seal lips result in lower rotating torque.
Delivery & Documentation
Delivery information includes standard shipping methods and industrial packaging. Datasheets are available for technical reference.
Frequently Asked Questions
Q1: What are the primary applications for these bearings?
A: They are widely used in precision instruments, low-noise motors, automobile transmissions, engines, CNC machines, and general machinery like pumps and compressors.
Q2: Can these bearings handle both radial and axial loads?
A: Yes, while primarily designed for radial loads, increasing the internal clearance allows them to handle significant axial and composite loads.
Q3: Do the sealed variants require maintenance?
A: No, sealed or shielded variants are pre-filled with high-quality grease at the factory and typically require no additional lubrication during their service life.
Q4: What makes the HPS series better than standard bearings?
A: The HPS series features optimized raceway geometry that reduces internal friction by 35% and noise levels by 50%, significantly extending the grease life.
Q5: What is the operating temperature range?
A: These bearings are designed to operate reliably within a temperature range of -30°C to +120°C.
Q6: What materials are used in their construction?
A: They use high-quality materials such as SUJ2 special steel combined with advanced precision machining processes for maximum wear resistance.
