The Kinco MK Series integrated M-IoT human-machine interface and PLC all-in-one unit offers extensive functionality and performance advantages. Its built-in M-IoT capabilities support diverse remote operation and maintenance functions including program upload/download, network-transparent PLC communication, VNC remote monitoring, and device management. This solution delivers user-friendly operation with robust functionality to meet customer requirements across varied application scenarios. Regarding performance enhancements, the HMI component employs an industrial-grade CPU operating at 700MHz, coupled with substantial storage comprising 128MB Flash + 64MB DDR2. Support for the next-generation DTools touchscreen programming software further elevates product capabilities.
For expansion, the PLC accommodates multiple extension modules, supporting up to eight KS expansion modules for enhanced cost-effectiveness and diverse application requirements. Additionally, this series provides four high-speed pulse counters, each supporting up to 32 preset values (PV) and 32 ‘CV=PV’ interrupts. They operate in multiple modes including single-phase, dual-phase (Up/Down), and AB-phase (1x and 4x frequency multiplication). All four counters share a maximum counting frequency of 50kHz. Users may configure these directly via the HSC configuration wizard within the programming software. Additionally, four high-speed pulse outputs are provided, each supporting both PTO (Pulse Train Output) and PWM (Pulse Width Modulation) signal outputs. The software offers functions such as PLS (PWM or PTO), positioning control instruction sets, and PFLO_F (Follow-Up Command), facilitating the implementation of simple motion control applications.
Furthermore, the PLC section incorporates two RS485 interfaces (PORT1, PORT2) with a maximum communication rate of 115.2kbps. PORT1 supports Kinco programming protocol, Modbus RTU master/slave operation, and custom serial protocols, whilst PORT2 supports Modbus RTU master/slave operation and custom serial protocols.

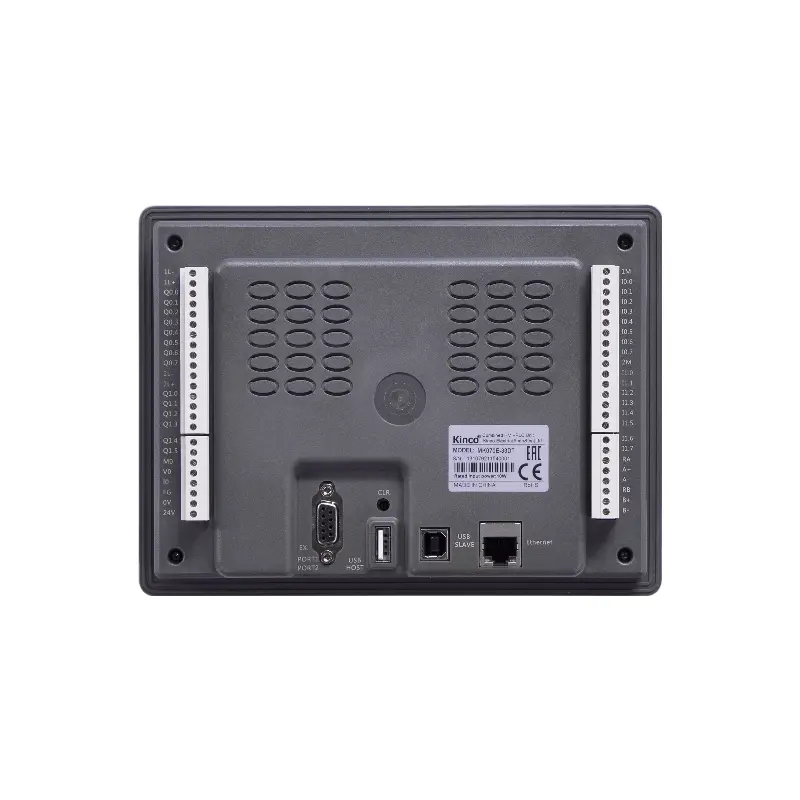

ℹ️ Models: Kinco MK Series M-IoT HMI and PLC MK070E-33DT
The delivery cycle of industrial products is influenced by various factors, such as the inventory status of the products, the scale of the order quantity, the region where the customers are located, and the choice of transportation methods.
Frequently Asked Questions
What are the key M-IoT features of the MK Series?
The built-in M-IoT capabilities support diverse remote operation and maintenance functions, including program upload/download, network-transparent PLC communication, VNC remote monitoring, and remote device management.
What configuration software is used for the HMI component?
The HMI component uses the next-generation DTools touchscreen programming software, integrated with EdgeAccess and M-IoT platforms.
How many expansion modules can the PLC section support?
The PLC section is highly cost-effective and supports the expansion of up to 8 KS expansion modules to meet various application requirements.
What high-speed pulse functionalities are available?
It features 4 high-speed pulse counters with support for up to 50kHz counting frequency across single-phase, dual-phase, and AB-phase modes, plus 4 high-speed pulse outputs supporting PTO and PWM configurations.
What communication interfaces are built into the system?
It includes two RS485 interfaces (PORT1 and PORT2) supporting communication rates up to 115.2kbps, Modbus RTU master/slave protocols, and custom serial communication protocols.
