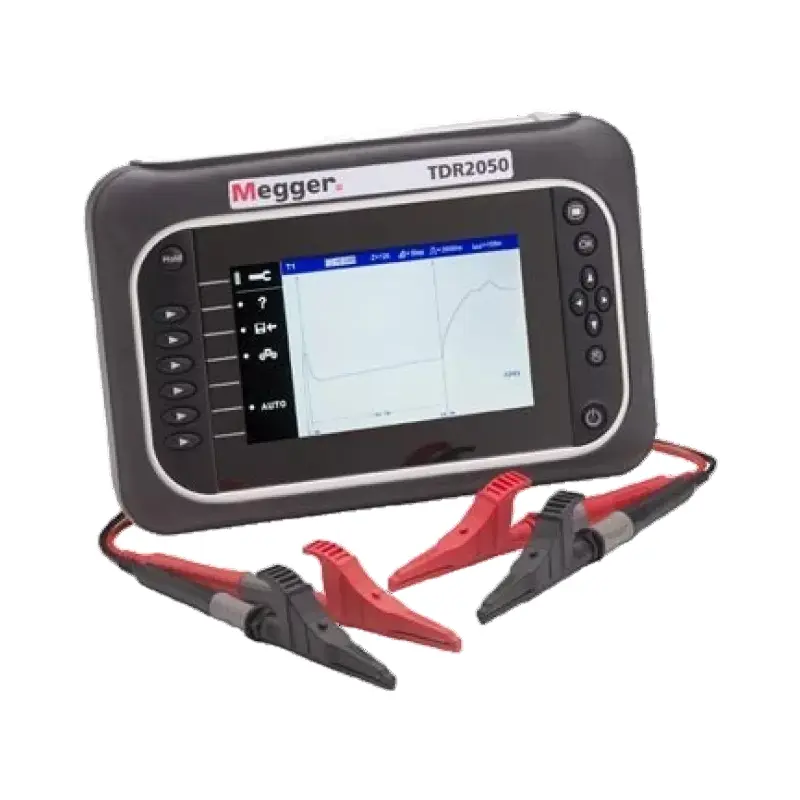

The Megger TDR2050 is a dual-channel cable fault locator designed specifically for power applications. It features simple operation, powerful features, and adaptability. Below is a detailed overview:
Equipped with fused test leads and a CAT IV 600 V safety rating, it effectively prevents electrical accidents and ensures operator safety.
With an IP54 rating, it is dustproof and waterproof, and can operate stably in a variety of harsh field environments. The operating temperature range is -15°C to +50°C.
An automatic setup mode allows even novice operators to quickly obtain useful test result curves. Furthermore, the "AutoFind" and "FindEnd" functions help users quickly locate faults.
A distance-dependent gain function offsets signal attenuation, and a "Step" function improves the detection of near-end faults. Furthermore, the instrument has a minimum resolution of 0.1 meter and a measurement range of up to 20 kilometers.
The curve tagging function allows users to save curves with their names, facilitating data management and analysis. The instrument also supports PC connection via USB for uploading and downloading test curves and comes with the "Trac Expert" PC software analysis tool.
| Specification | Details |
|---|---|
| Length Measuring Range | Up to 20000 m (maximum range depends on cable type) |
| Minimum Resolution | 0.1 m |
| Output Impedance | 25, 50, 75, 100, 140 ohm + auto |
| Battery | Lithium - ion rechargeable battery |
| Battery Charging Time | 6 hours in an environment of 0°C to 40°C |
| Battery Life | Up to 12 hours (typical) |
| Safety Standards | Complies with IEC61010 - 1, EN60950 - 1, EN61010 - 1, UN38.3 and EN62133 standards; rated at 600V CAT IV |
| EMC Compatibility | Complies with BS EN 61326 - 1 (light industry), performance level "B" for all immunity tests |
| Protection Rating | IP54 |
| Enclosure Material | ABS |
| Dimensions | 290 mm (11.4 in) × 190 mm (7.5 in) × 55 mm (2.2 in) |
| Weight | 1.7 kg (3.8 lb) |
| Connectors | Four 4 - mm safety terminals and two F - connectors (no F - connectors on TDR2050). Other standard push - in adapters are also applicable |
| Test Leads | 2 pairs of 1.5 - m long retractable sheath test leads |
| Display | 800×480 pixel color graphic LCD, visible in external environments, 8 selectable color schemes, 2 custom slots |
| Backlight | Constant - on backlight (brightness adjustable) for all color schemes |
| Operating Temperature and Humidity | - 15 °C to + 50 °C (5 °F to 122 °F) |
| Storage Temperature and Humidity | - 20 °C to 70 °C (- 4 °F to 158 °F) |
| Model | Megger TDR2050 Two-channel cable fault locator for power applications |
|---|---|
| Key Features | CAT IV 600 V input protection |
| IP54 rating offers real life working protection | |
| 'Auto Setup' mode for instant, easy use | |
| 'AutoFind' and 'FindEnd' functions helps find the fault fast | |
| Trace tagging facility that allows a name to be saved with the trace | |
| Distance dependent gain to counteract signal attenuation | |
| Step function to improve detection of near end faults |
Dimensions: 290 * 190 * 55mm
Weight: 3.4kg / 34kg packaging variations
Battery: Equipped with lithium-ion rechargeable battery
Delivery information typically includes delivery times, shipping methods, and packaging, which may vary depending on the seller and the location of purchase.
Access documentation and datasheets for the Megger TDR2050 Two-channel cable fault locator:
