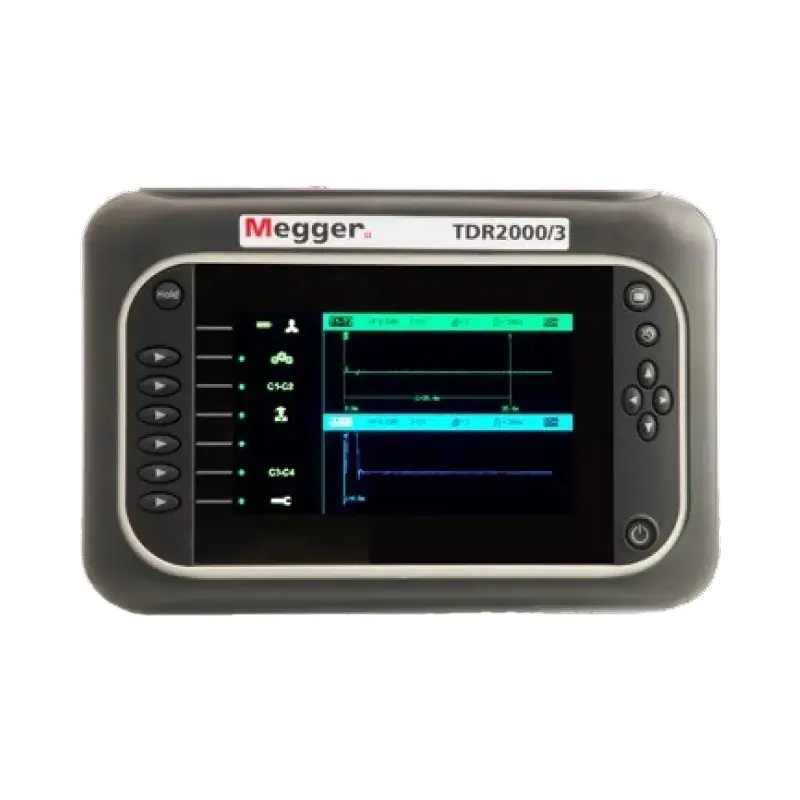

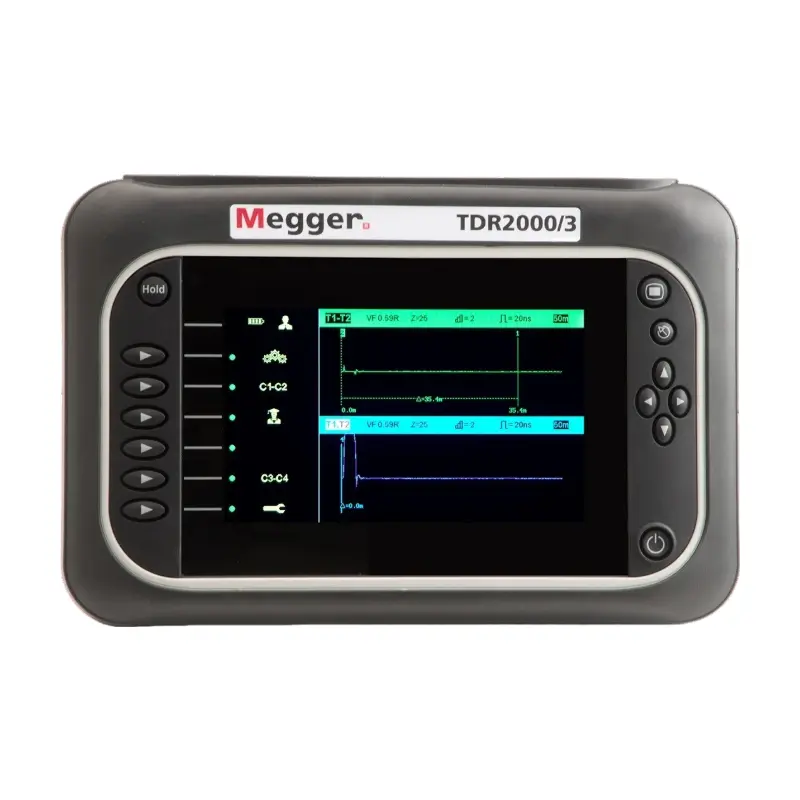

The TDR2000/3 is an advanced dual-channel time domain reflectometer designed for locating faults in metallic cables. It offers a sophisticated yet user-friendly solution for cable maintenance and diagnostics.
The automatic setup mode selects key test parameters based on the measurement range, featuring an 800x480 color backlit LCD with adjustable contrast.
Hyperbolic curve and dual cursor functions offer flexibility, instantly displaying the distance between two points. The Xpert function assists in locating potential faults.
Comprehensive dual-channel dual-display functionality allows simultaneous testing and comparative analysis, significantly improving efficiency.
| Specification | Details |
|---|---|
| Length Measuring Range | Up to 20000 m (65000 ft) |
| Minimum Resolution | 0.1 m (0.3 ft) |
| Output Impedance | 25 Ω, 50 Ω, 75 Ω, 100 Ω, 125 Ω + auto |
| Output Pulse Voltage | Up to 20 volts peak-to-peak into open circuit |
| Velocity Factor | From 0.01 to 0.99, in steps of 0.01 |
| Battery Type | Lithium-ion rechargeable battery (12 hours typical life) |
| Safety Standards | IEC61010-1, 150 V CAT IV or 300 V CAT III |
| Protection Rating | IP54 (Waterproof and dustproof) |
| Operating Temperature | -15 °C to +50 °C |
| Dimensions & Weight | 290 mm × 190 mm × 55 mm | 1.7 kg |
Quickly locates cable faults in street lighting systems to ensure normal operation.
Suitable for low-voltage street-level distribution circuits, helping troubleshoot cable faults promptly.
Ideal for TNV-3 circuits, detecting and locating faults in communication cables.
Technical documentation and resource guide
