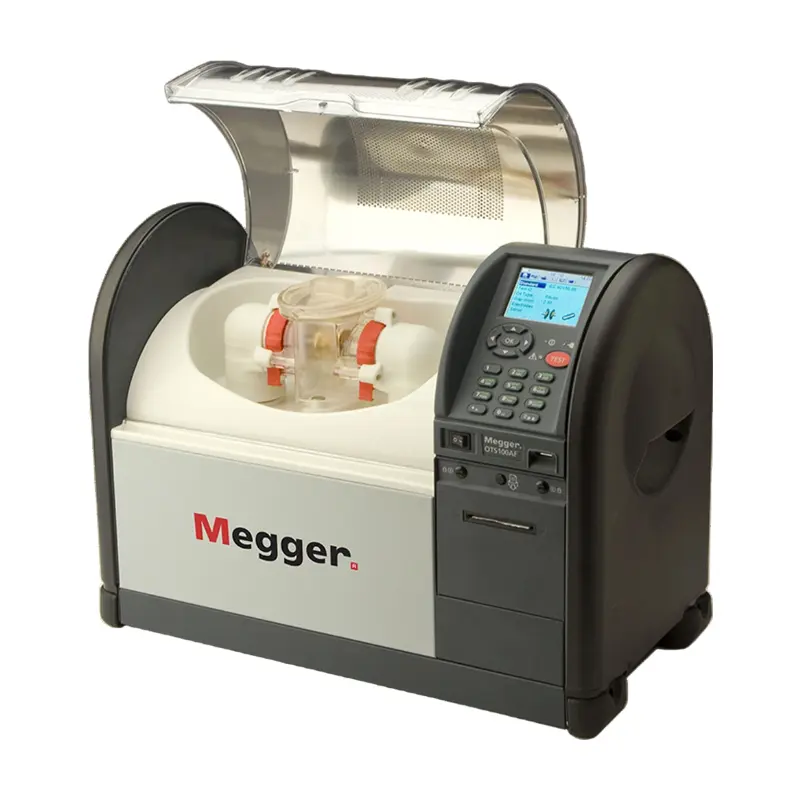

The Megger OTS100AF is a fully automatic insulating oil dielectric breakdown tester designed for laboratory use. It is line-powered and can perform accurate breakdown voltage tests on mineral, ester, and silicon insulating oils. The instrument has a test voltage range of 0 - 100 kV, with a resolution of 0.1 kV and an accuracy of Â±1% Â± 2 digits. It features a precision test vessel with electrode gap adjustment wheels to ensure repeatable results. The test chamber has an easy - clean surface and a drain for spilled oil, and is covered by a transparent, electrically shielded lid for safety. It is pre - programmed with a library of international breakdown test standards and also allows users to create custom tests. The results can be viewed on - screen, printed via an internal or external printer, and managed using the included PowerDB Lite software.

Send Inquiry

Product Description

Overview Specifications Models Delivery Information Manuals + Resource

The Megger OTS100AF is a fully automatic insulating oil dielectric breakdown tester suitable for laboratory use. It is used to perform accurate breakdown voltage tests on insulating liquids such as mineral oil, ester oil, and silicone oil, and is used to determine the dielectric strength of insulating oils in high-voltage electrical equipment such as transformers, switchgear, and other electrical apparatus, so as to evaluate the basic condition of insulating oils.

Technical Parameters

Test Voltage 0 - 100 kV (@ 61.8 Hz)

Voltage Resolution 0.1 kV

Voltage Accuracy ±1% ± 2 digits

Test Vessels 400 ml (150 ml opt.)

Temp Sensor Res. 1 °C

Power Supply 90 - 264 VAC, 300 VA

Dimensions 520 x 420 x 290 mm

Weight 30 kg

Product Features

High Safety Design

Designed with independent and dual over-voltage cut-off circuits. Features safety interlock, polycarbonate chamber cover with discharge barrier, zero-voltage touch bar, and shielded cover. Pressing any key immediately interrupts high-voltage output.

Accurate & Stable Testing

Equipped with precision electrode spacing adjustment wheels for repeatable results. Features series resonance boost, direct voltage/current trip detection, and ultra-fast switch-off time under 10 μs.

Convenient Operation

Backlit 320 x 240 QVGA color display. Pre-loaded with international test standards, supports custom test profiles, features a 12-key alphanumeric keypad, includes PowerDB Lite software, and is equipped with 3 USB interfaces.

Specification	Details
Test Voltage	0 - 100 kV (@ 61.8 Hz)
Voltage Resolution	0.1 kV
Voltage Accuracy	±1% ± 2 digits
Test Vessels	400 ml (standard); 150 ml (option)
Temperature Sensor Resolution	1 °C
Power Supply	90 - 264 VAC, 300 VA
Fuses	2 x 4 A CFST ceramic, 20 mm x 5 mm, for 250 V
Internal Printer	Dot matrix impact printer with graphical output, paper 57.5 mm wide, weight 52 gm per roll, Epson black ribbon cassette ERC - 09 B (optional)
Protection	Safety interlock on test chamber, discharge barrier on polycarbonate test chamber cover
Display	320 x 240 QVGA colour display with backlight
Dimensions (W x H x D)	520 mm x 420 mm x 290 mm
Weight	30 kg
Operating Temperature Range	0 °C to +50 °C
Storage Temperature Range	-30 °C to +65 °C
Humidity Range	80% RH at 40 °C operation; 95% RH at 40 °C storage
Altitude	1000 m
Safety	Designed in accordance with IEC 61010
EMC	Light industrial IEC 61326 - 1 Class B, CISPR 22, CISPR 16 - 1 and CISPR

Models Available

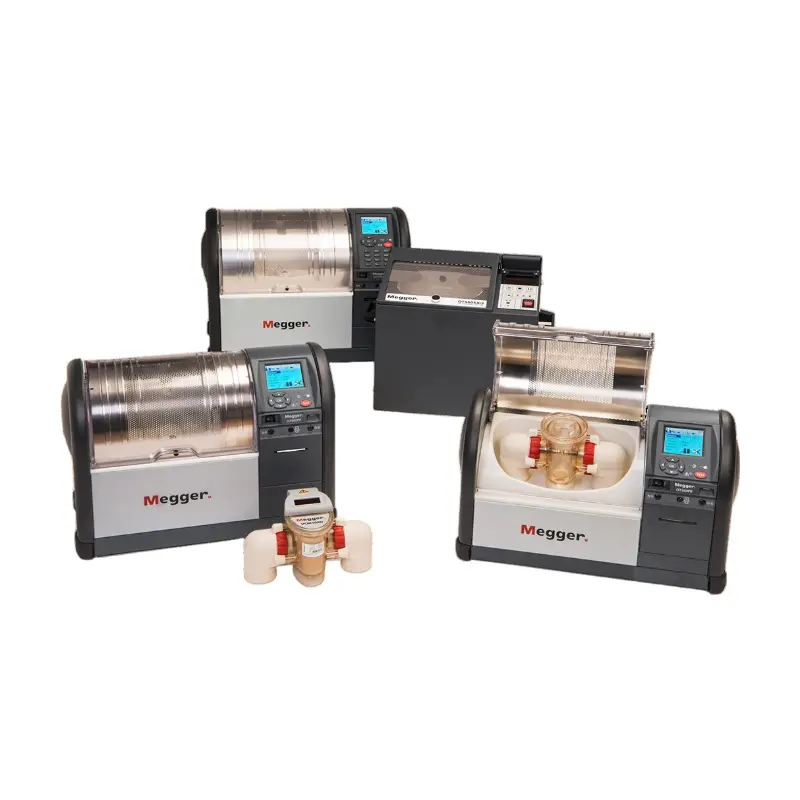

Megger OTS100AF: AF series of insulating oil test sets.

Parameter	Details
Dimensions	520 mm x 420 mm x 290 mm
Weight	30 kg
Battery parameters	Without battery
Delivery Information	Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Megger OTS100AF AF series of insulating oil test sets datasheet.pdf
Download

Frequently Asked Questions (FAQ)

What is the primary function of the Megger OTS100AF?

It is a fully automatic insulating oil dielectric breakdown tester used to perform breakdown voltage tests on insulating liquids (mineral, ester, and silicone oil) to evaluate their dielectric strength in high-voltage equipment.

What is the maximum test voltage supported by the OTS100AF?

The tester provides a high-voltage test output range from 0 to 100 kV at a frequency of 61.8 Hz, with a resolution of 0.1 kV.

What safety mechanisms are built into the test equipment?

Safety features include independent dual over-voltage cut-off circuits, a safety-interlocked test chamber, a polycarbonate discharge barrier cover, a zero-voltage touch bar, and an electrically shielded transparent cover. High voltage output can be instantly cut off by pressing any key.

What are the physical dimensions and weight of this tester?

The physical dimensions are 520 mm x 420 mm x 290 mm (W x H x D), and the weight of the unit is 30 kg. It does not contain an internal battery.

What international standards and safety codes does the tester follow?

The Megger OTS100AF is designed in accordance with safety standard IEC 61010 and EMC standard Light Industrial IEC 61326-1 Class B (CISPR 22, CISPR 16-1, and CISPR).
