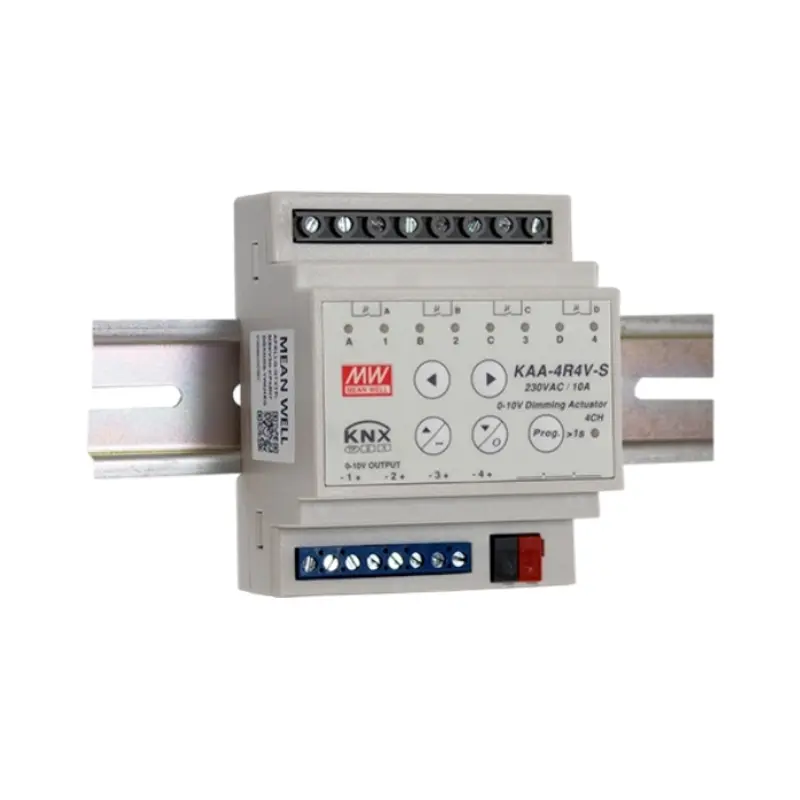

Meanwell KAA-4R4V-S is a 4-channel dimming actuator equipped with high-quality independent latching relays for switching control, compatible with various Meanwell LED drivers. The product specifications indicate the maximum recommended number of LED drivers per channel, facilitating building planning. Based on the KNX architecture, KNX system engineers may programme it as required during planning or operation via ETS software, or manually control it using physical panel buttons. Each channel features an independently configurable green LED indicator to display switch status.
Beyond basic switching functionality, this actuator provides a DC 0(1)-10V current sink interface for dimming connected LED drivers or ballasts. The dimming curve is adjustable between linear and logarithmic modes, delivering an enhanced dimming experience for end-users. It can also be integrated with motion sensors within buildings to conserve energy. Powered via the EIB/KNX bus without requiring an additional power supply, it offers reliability and versatility to meet diverse requirements in modern buildings. This makes it widely applicable in building automation, lighting switch/dimming control, and blind/curtain control applications.
| Specification Details (Model: KAA-4R4V-10S) | ||
|---|---|---|
| SUPPLY | KNX Bus Voltage | 21-31V |
| Current Consumption | <14mA | |
| Power Consumption | <250mW | |
| OUTPUT CONTROL | Voltage Range | 0-10V |
| No. of Control Output | 4 | |
| Type of Control | Passive | |
| Max. Current per Output | 50mA | |
| Max. Cable Length at Full Load | 100m with cable cross-section 1.5mm² | |
| OUTPUT RELAY SWITCHING RATINGS | Nr. Of Relay | 4 |
| Nr. Of Shutter Output | 2 | |
| Independent & Potential-Free Per Relay | Yes | |
| Ohmic Load Current | 10A | |
| Capacitive Load | 220 μF (See Note.2) | |
| Max. Inrush Current | 400A(max. 200 μs), 80A(max. 20ms) | |
| EN60947-4-1 AC1(COS θ=0.8) | 10A | |
| EN60947-4-1 AC5a(COS θ=0.45) | 8A | |
| EN60947-4-1 AC5b | 10A | |
| Max. Total Current of the Actuator | 40A | |
| OUTPUT SERVICE LIFE | Mechanical Service Life | >10⁶ |
| Electrical Endurance (EN60669-1 19.1) | 4*10⁵ (See Note.2) | |
| Electrical Endurance (Fluorescent Lamp AX) | 10⁵ (See Note.2) | |
| OPERATING & DISPLAY | Programming Button/LED | For setting the individual address |
| Manual Button/LED | For manually control the relay and dimming | |
| ENVIRONMENT | Working Temp. | -30 ~ +45°C (3K5) |
| Storage Temp. | -35 ~ +70°C | |
| Working Humidity | 10 ~ 95% RH non-condensing | |
| Protection Class | II, According to EN61140 | |
| Over Voltage Category | III, According to EN60664-1 | |
| Pollution Degree | 2, According to EN60664-1 | |
| Degree of Protection | IP20, According to EN60529 | |
| SAFETY & EMC | Safety Standards | BS EN/EN50491-3, BS EN/EN60669-1, BS EN/EN60669-2-1, BS EN/EN60669-2-5(See Note.2), EAC TP TC 004 approved |
| EMC Emission | Compliance to BS EN/EN50491-5-1,-2,-3, BS EN/EN50090-2-2, BS EN/EN60669-2-1, BS EN/EN60669-2-5, BS EN/EN63044-5-1,-2,-3(See Note.2), EAC TP TC 020 | |
| EMC Immunity | Compliance to BS EN/EN50491-5-1,-2,-3, BS EN/EN50090-2-2, BS EN/EN60669-2-1, BS EN/EN60669-2-5, BS EN/EN63044-5-1,-2,-3(See Note.2), EAC TP TC 020 | |
| Withstand Voltage | Between switching and SELV control circuit: 3.5KVAC | |
| CONNECTIONS | Screw Terminal | 0.5 – 4.0mm² solid core, 0.5 – 2.5mm² finely stranded |
| KNX Bus Connection Terminal | 0.8mm Ø, solid core | |
| OTHERS | MTBF | 686.9K hrs min. Telcordia SR-332 (Bellcore) ; 302.3K hrs min. MIL-HDBK-217F (25°C) |
| Dimension | 72 × 90 × 57mm (W × H × D) | |
| Mounting Width in Units | 4 units | |
| DIN Rail Mounting | 35mm mounting rail according to DIN EN60715 | |
| Packing | 0.247Kg ; 48pcs/12.53Kg/1.02CUFT | |
Industrial-grade standard packaging, typically comprising individual products in separate paper boxes. Multiple-item orders may be consolidated in corrugated cardboard boxes.
KAA-4R4V-S Dimming Actuator Main Unit, Product Manual (including Installation/Programming Guide).
Subject to adjustment due to manufacturer packaging iterations, approximately 150mm × 100mm × 50mm (single unit packaging).
Subject to confirmation based on manufacturer production lead times, typically 2-4 weeks.
This product is a battery-free electronic device, does not constitute dangerous goods, and complies with international and domestic logistics transport regulations. No special transport restrictions apply.
The KAA-4R4V-S is a 4-channel dimming actuator designed for building automation under the KNX architecture. It provides independent latching relays for switching control and a DC 0-10V current sink interface for dimming compatible LED drivers or ballasts.
Yes, the actuator supports KNX Data Secure functionality. This feature protects the system from unauthorized configuration or manipulation in modern building automation systems.
Yes, in addition to remote programming via ETS software, the unit features physical buttons on the front panel for manual operation, with green LED indicators corresponding to each channel to display the switch status.
It features a compact 4-unit (72mm width) modular design, making it suitable for standard installation on 35mm DIN rails inside distribution boxes.
No, the device is powered directly via the EIB/KNX bus connection and consumes less than 250mW, removing the need for an external auxiliary power source.
It is highly suitable for building automation applications, including smart lighting control (switching and dimming), integration with motion sensors for energy saving, and blind or shutter/curtain control.
